Rockwell Automation Publication D2-3518-4 - January 2020 231
Appendix B
Using the OIM
The LCD Operator Interface Module (OIM) is a keypad/display that enables
you to program, monitor, and control the drive.

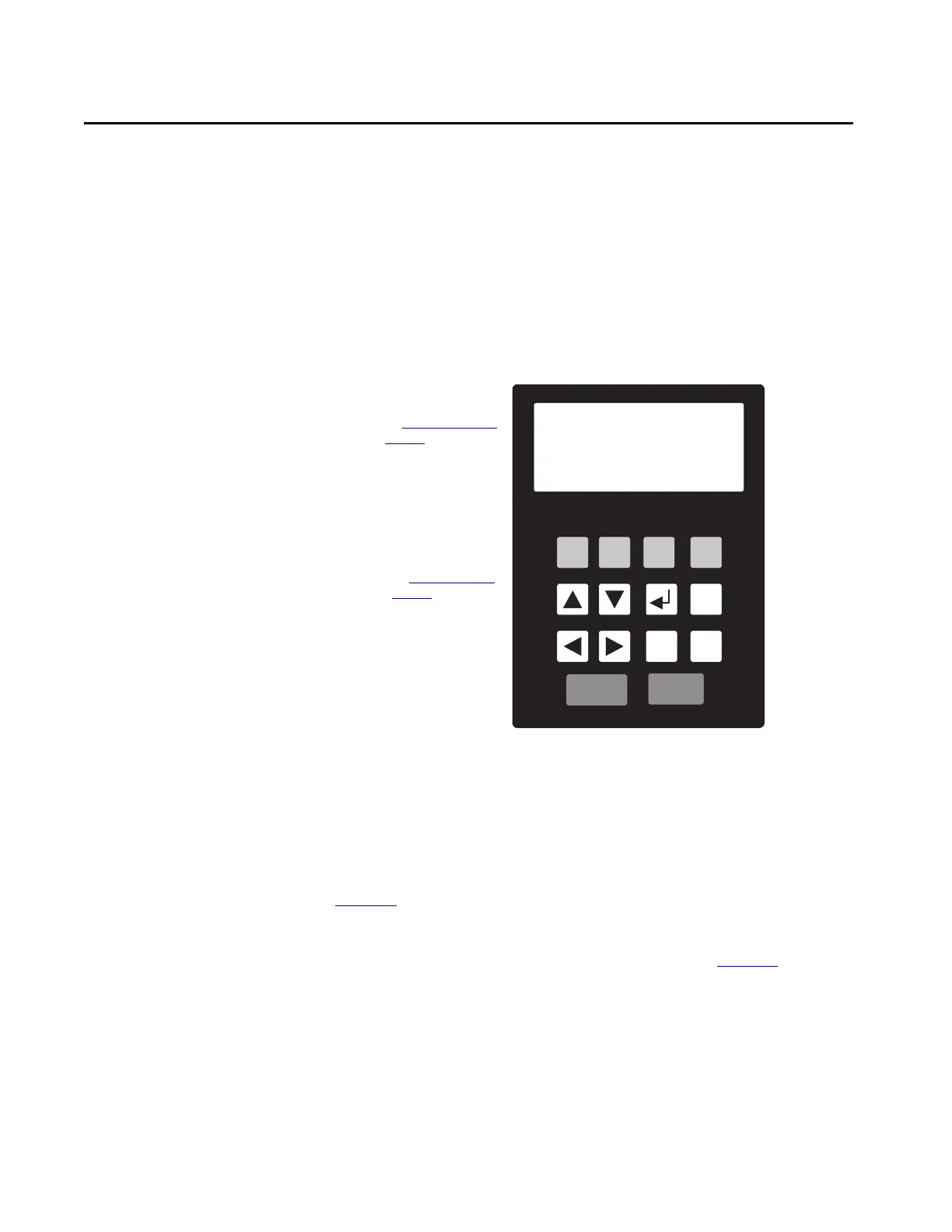

Figure 91 - OIM
Installing and Removing
the OIM
A cable (RECBL-LCD) must be used to convert the OIM for hand-held use.
The maximum cable length is 9.7 m (32 ft) using extender cables.
To install the OIM on a Frame 3 Power Module, connect the OIM to DPI port
3 on the DPI Communication Interface board until it clicks into place. See
Figure 92
.
To install the OIM on a Frame 4 Power Module, connect the OIM to the OIM
adapter on the lower right corner of the power module. See Figure 93
.
To remove the OIM, pull back on the OIM cable connector to release the OIM
from the DPI Communication Interface board.
tex
t
F1
ESC/
PROG
HAND AUTO
F2 F3 F4
o
I
See Display Description on
page 233 for information
abut the display.
See Key Descriptions on
page 234 for information
abut the keys.
