Chapter 8 Programming Basics
How Parameters are
Organized
Inverter parameters are organized into seven files:
•Monitor
• Motor Control
• Speed Command
•Dynamic Control
•Utility
• Communication
•Inputs and Outputs
Rectifier parameters are organized into seven files:
•Monitor
• Configuration
•Dynamic Control
• Internal Data
•Utility
• Communication
•Inputs and Outputs
Each file contains parameters that are grouped by their function. A file can
contain several groups of parameters. See Figure 25
.

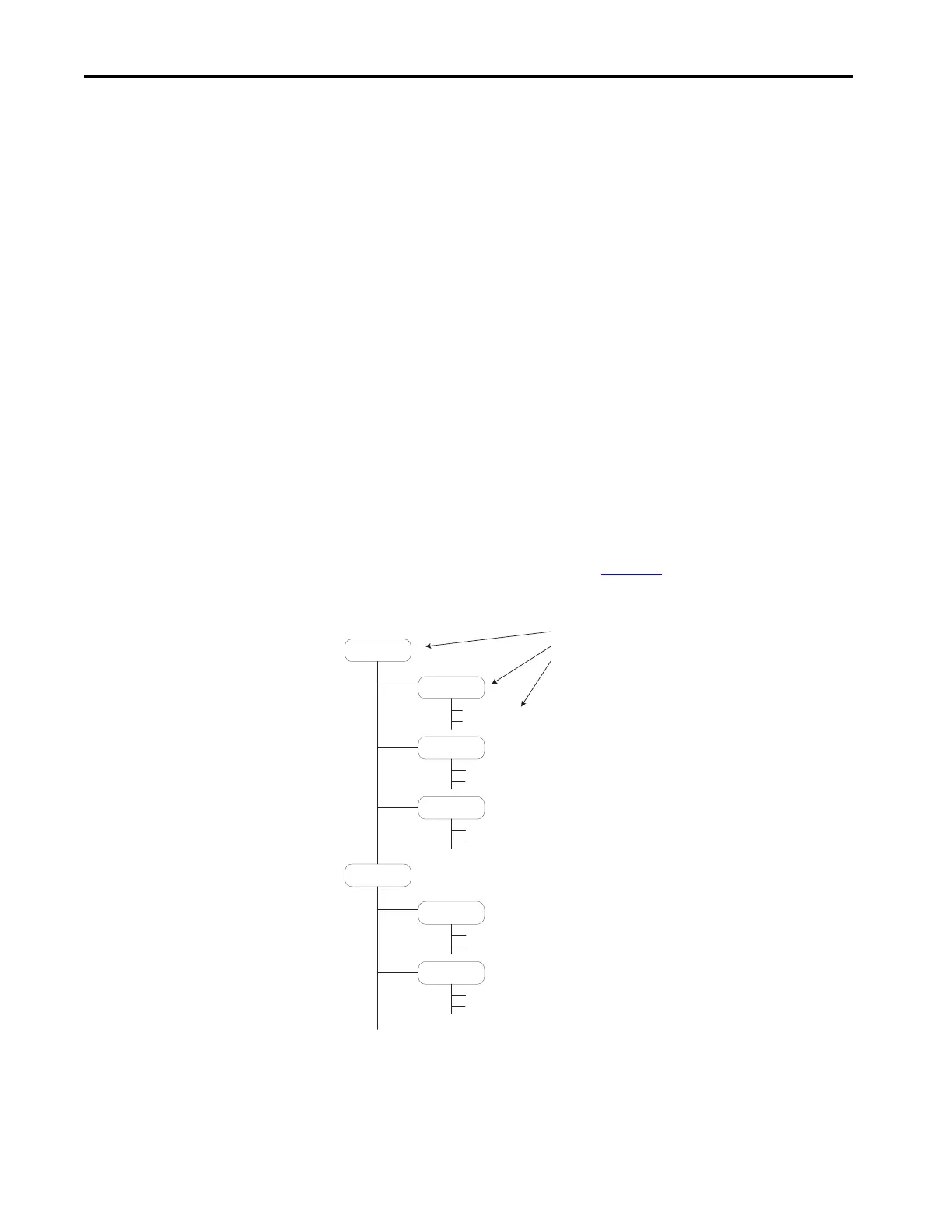

Figure 25 - Example of Parameter Organization
Motor Control
Motor Data
Torq
Attributes
Motor Type
Motor NP Volts
Torque Perf Mode
Maximum Voltage
Volts per
Hertz
Start/Acc Boost
Run Boost
Speed
Command
Control Src
Sel
Spd Mode &
Lmts
Logic Source Sel
Speed Ref A Sel
Speed Mode
Minimum Speed
File
Group
Parameter
