118 Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020
Chapter 3 Operator Interface

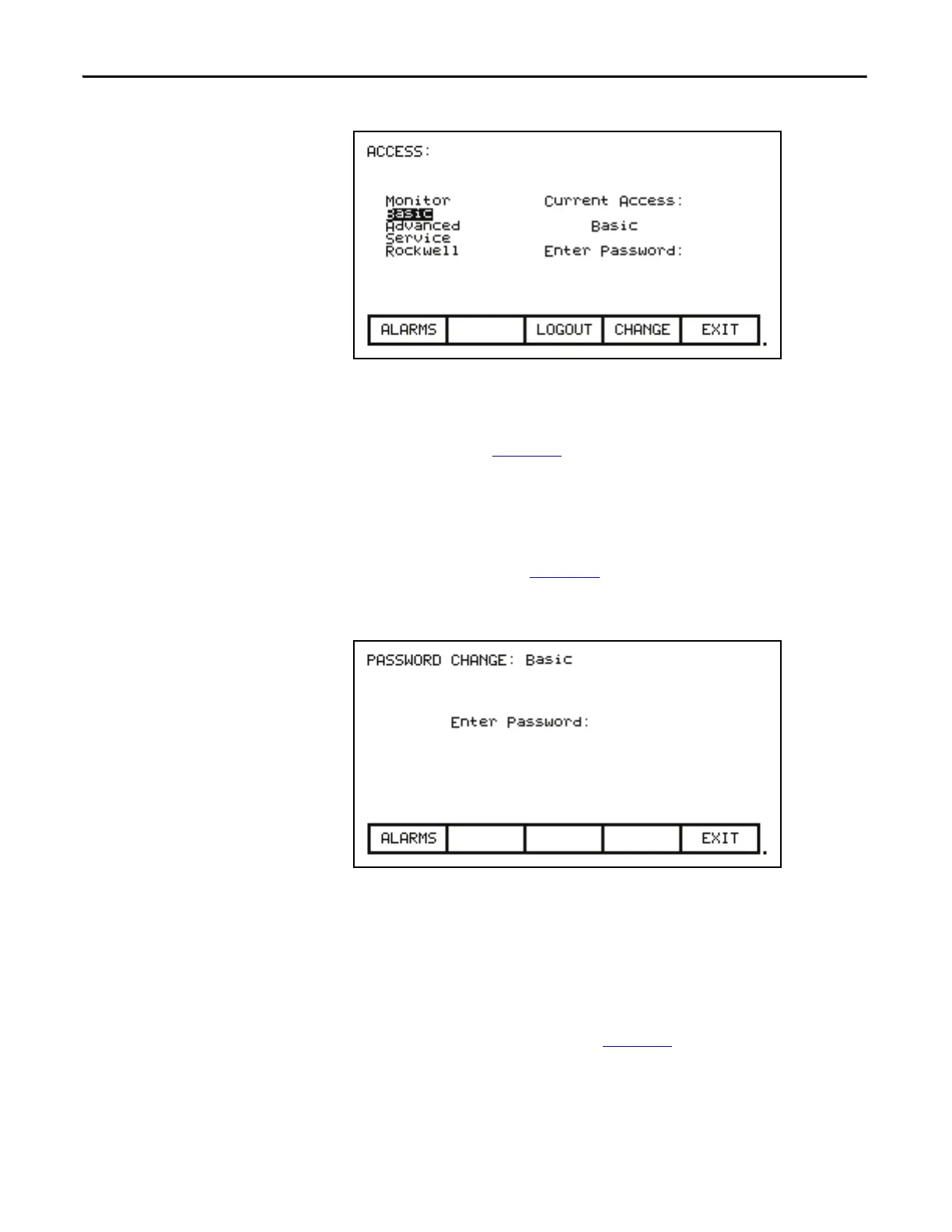

Figure 105 - Access Level Changed
When the desired operations have been completed, the operator interface should
be placed back to the 'Monitor' level in order to protect against unauthorized
modifications. From this screen press the [F8] key. The level will change back to
'Monitor' as shown in Figure 103
.
The default value for the password (PIN) of the 'Basic' and 'Advanced' levels is
zero (0), or simply pressing the [enter] key. This value can be changed from the
ACCESS screen. First use the up/down cursor keys to select the level for which
you wish to modify the PIN. Press the [F9] key. The typical PASSWORD
CHANGE screen shown in Figure 106
is displayed, showing the Access Level for
which the new PIN will be applied to.
Figure 106 - PIN Change
Enter the current PIN value via the data keys [0]...[9] and press the [enter] key. As
in the ACCESS screen, the entered value is shown via placeholders and may be
edited with the [backspace] key.
If you entered the correct PIN, the screen now asks you for the new PIN. Type in
the new PIN value using the data entry keys [0]...[9] followed by the [enter] key.
The screen now asks you to verify the new PIN. Type in the new PIN again
followed by the [enter] key as shown in Figure 107
.
