Rockwell Automation Allen-Bradley PowerFlex 700S Migration Guide

Rockwell Automation Publication 750-RM004A-EN-P - April 2018 135
Enclosure Information Appendix A

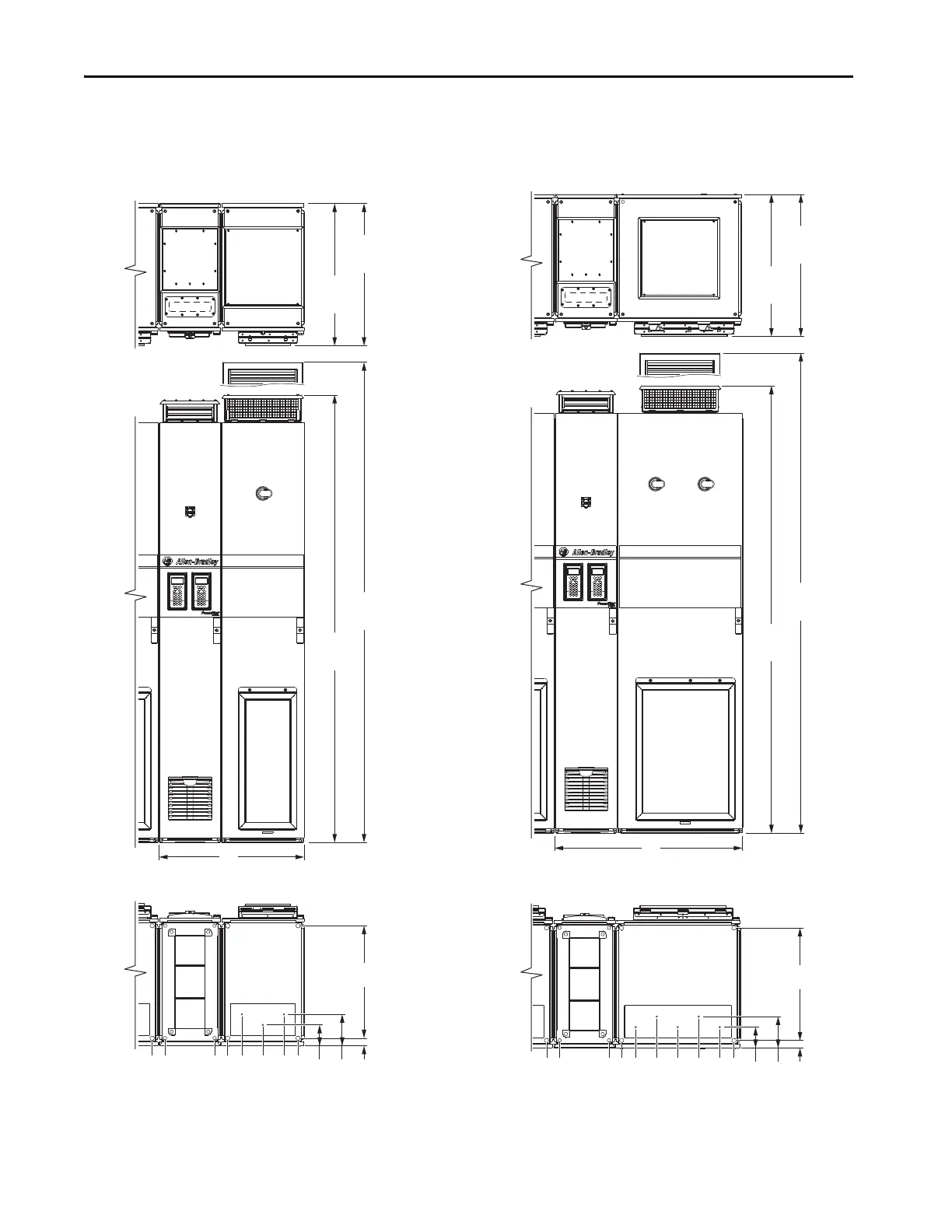

Figure 45 - DC Input PowerFlex 755TM Common Bus Inverter Frames 8 and 9
65 (2.6)
300 (11.8)
0 (0)
235 (9.3)
635 (25.0)
368 (14.5) 464 (18.3) 568 (22.4)
IP21, UL Type 1
2132
(83.9)
IP54, UL Type 12
2291
(90.2)
IP21, UL Type 1
676
(26.6)
IP54, UL Type 12
721
(28.4)
700
(27.6)
36
(1.4)
150
(5.9)
105
(4.1)
535
(21.1)
65 (2.6)
0 (0)
235 (9.3)
368 (14.5) 468 (18.4) 568 (22.4) 668 (26.3) 768 (30.2)
300 (11.8) 835 (32.9)
IP21, UL Type 1
2132
(83.9)
IP54, UL Type 12
2291
(90.2)
IP21, UL Type 1
676
(26.6)
IP54, UL Type 12
721
(28.4)
900
(35.4)
36
(1.4)
150
(5.9)
105
(4.1)
535
(21.1)
Frame 8 Frame 9
