Rockwell Automation Publication 750-RM004A-EN-P - April 2018 139
Enclosure Information Appendix A

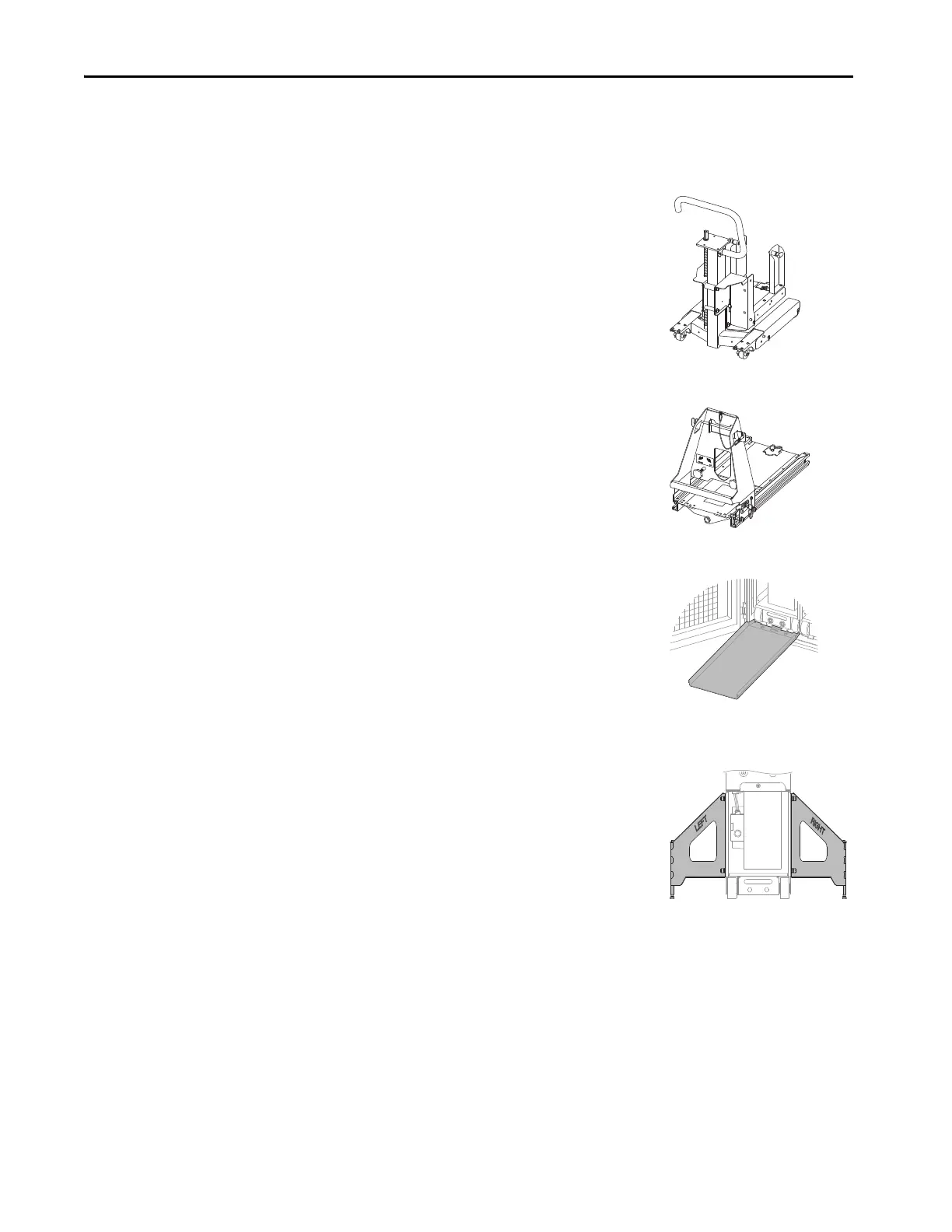

PowerFlex 755T Product
Equipment Handling Options
This section lists options that are recommended to handle, transport, and store
major product components.
Module Service Cart
The PowerFlex 750-Series service cart is
designed to handle and transport LCL filter
modules and power modules. The service cart
has an adjustable curb height of 0…254 mm
(0…10 in.) and curb offset/reach of 0…203 mm
(0…8.0 in.).
DC Precharge Module Service Lift
The PowerFlex 755T DC precharge module
service lift allows you to remove and install DC
precharge modules. It is used in conjunction
with the 20-750-MCART1 module service cart.
Power Module Service Ramp
The PowerFlex 755T power module service
ramp allows you to remove and install power
modules, catalog numbers 20-750-MI1-xnnxnn,
20-750-MI2-xnnxnn, and
20-750-MI3-xnnxnn, from the cabinet.
Power and Filter Module Storage
Hardware
Power and LCL filter module storage hardware
is designed to help stabilize modules during
storage.
Cooling and Airflow
Comparison
This section describes cooling and airflow requirements for the PowerFlex
700S and PowerFlex 755T products. Compare the requirements for the
existing PowerFlex 700S drive to the equivalent cross reference PowerFlex
755T product to ensure the location chosen can support the requirements of
the PowerFlex 755T migration solution.
Cat. No. 20-750-MCART1
Cat. No. 20-750-MCART2
Cat. No. 20-750-MRAMP1
Cat. No. 20-750-MINV-ATIP
