122 Rockwell Automation Publication 750-RM004A-EN-P - April 2018
Appendix A Enclosure Information
AC Input Dimensions

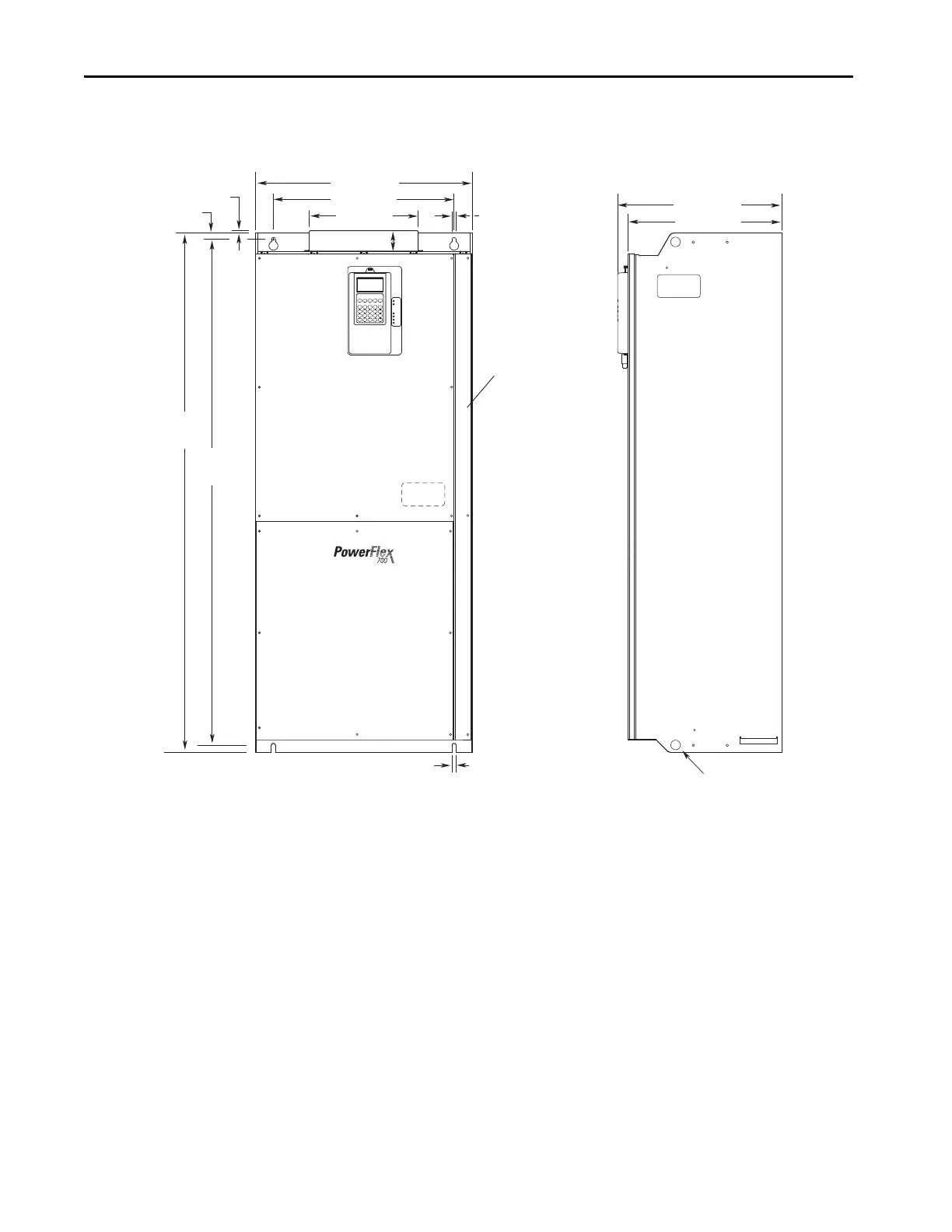

Figure 32 - AC and DC Input Frame 9 PowerFlex 700S
339.5 (13.37)
363.3 (14.32)
1120.0
(44.09)
Nameplate
1150.0
(45.28)
9.0 (0.35)
Wire Way
240.0 (9.45)
14.0 (0.55)
5.0 (0.20)
480.0 (18.90)
400.0 (15.75)
9.0 (0.35)
Lifting Hole
21.0 (0.83)
45.0 (1.77)
Nameplate
S
