140 Rockwell Automation Publication 750-RM004A-EN-P - April 2018
Appendix A Enclosure Information
PowerFlex 700S Installation Requirements
Refer to the PowerFlex 700H/S High Power Installation manual, publication
PFLEX-IN006
, for detailed environmental specifications for the PowerFlex
700S frame 9…14 drives.

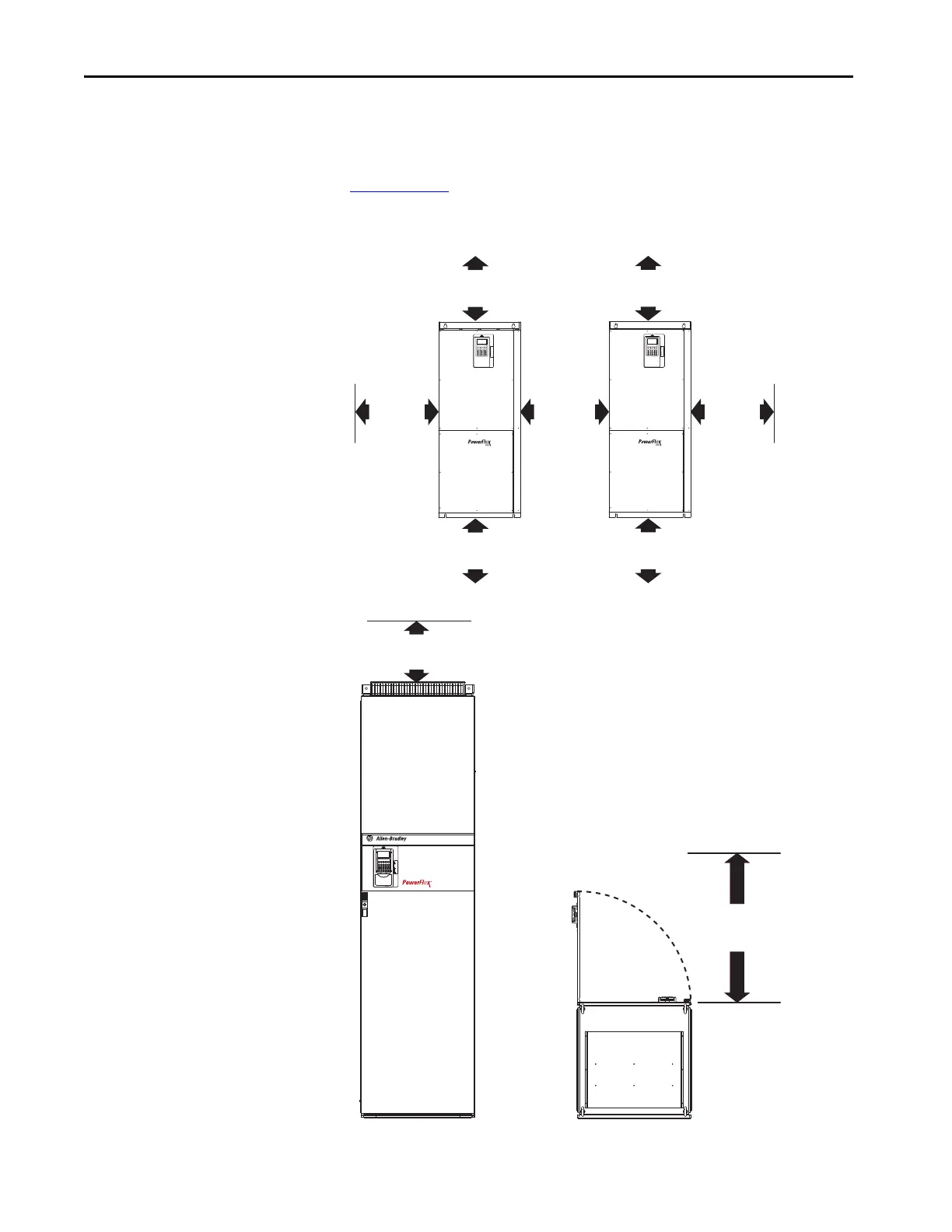

Figure 49 - PowerFlex 700S Frame 9 IP21 Enclosure, Minimum Clearances
Figure 50 - PowerFlex 700S Frame 10…14 IP21 Rittal Enclosure, Minimum Clearances
400.0 mm
(15.75 in.)
80.0 mm
(3.2 in.)
50.0 mm
(1.97 in.)
350.0 mm
(13.8 in.)
400.0 mm
(15.75 in.)
350.0 mm
(13.8 in.)
50.0 mm
(1.97 in.)
200 mm
(7.87 in.) Min.
800 mm
(31.50 in.) Min.
800 mm
(31.50 in.) Min.
Frames 10…14 (NEMA/UL Type 1 - IP21
Enclosure, Frame 10 shown)
