Rockwell Automation Publication 750-RM004A-EN-P - April 2018 109
Drive Configuration Chapter 2
Safety Configurations
The PowerFlex 700S drive was available with an optional hardware Safe Torque
Off / 2nd Encoder module. The functionality of this option can easily be
obtained with the PowerFlex 755T product by using one of the available Safe
Torque Off option modules. If the optional 20-750-S3 Safe Torque Off
module is installed, the PowerFlex 755T can be used with Integrated Safety
over EtherNet/IP.
PowerFlex 700S Safety Options
The PowerFlex 700S DriveGuard® Safe Torque Off with 2nd Encoder option
module, catalog 20D-P2-DG01, provides hardware Safe Torque Off
functionality and the facility to connect a second encoder. The DriveGuard
option requires an Expanded Cassette.
The DriveGuard Safe Torque Off option is just one component in a safety
control system. Components in the system must be chosen and applied
appropriately to achieve the desired level of functional safety.
Details of installation, wiring, and safety performance levels are found in the
DriveGuard Safe Torque Off Option for PowerFlex 700S Phase II AC Drives
and PowerFlex 700L Liquid-Cooled AC Drives User Manual, publication
20D-UM007
.

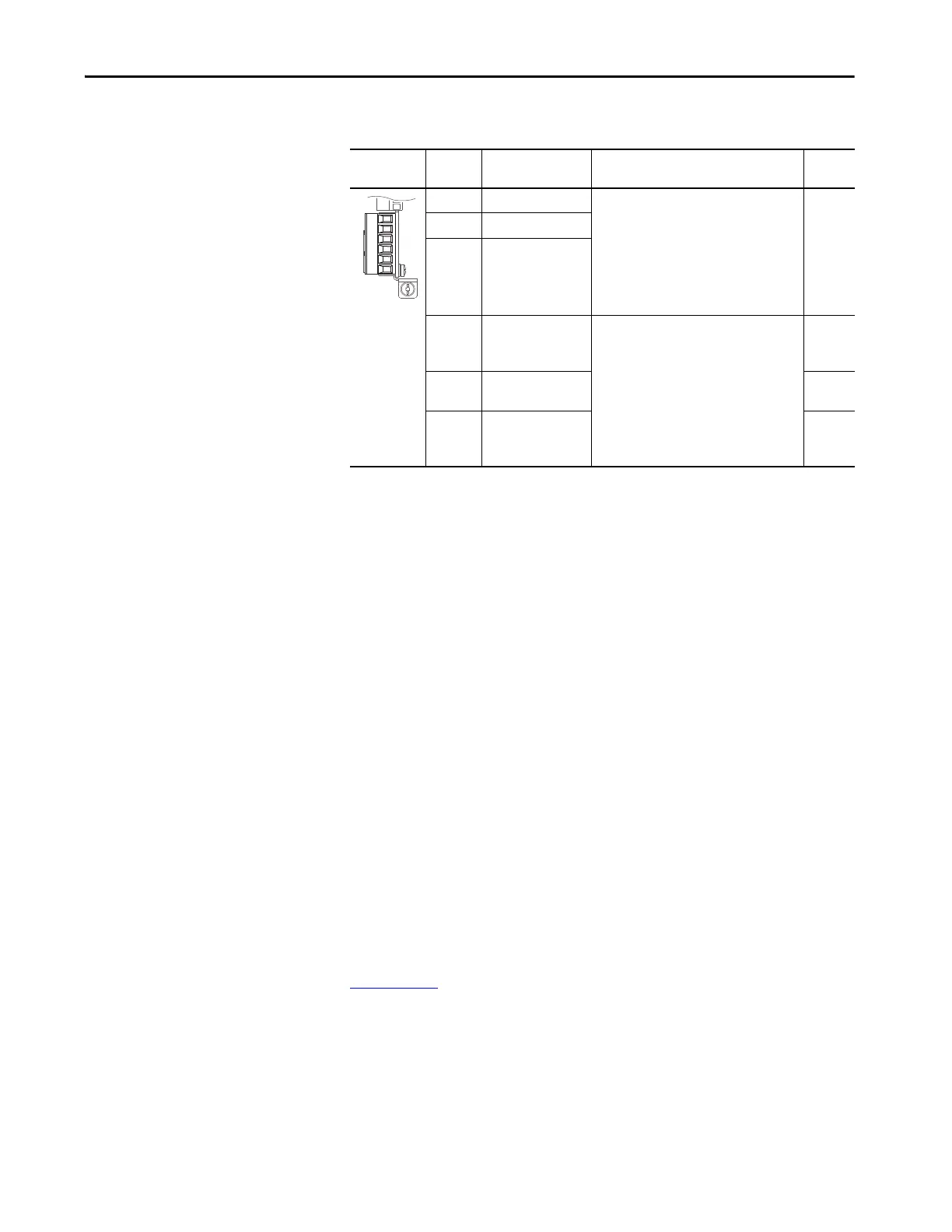

Table 65 - TB2 Terminal Designations (1 Relay and 2 Transistor Outputs: 1R2T)
Relay Out Terminal Name Description Related
Param
R0NO Relay 0 N.O. Relay Normally Open contact output:
240V AC, 24V DC, 2 A max.
General Purpose (Inductive) / Resistive
Relay Normally Closed contact output:
240V AC, 24V DC, 2 A max.
Resistive Only
10, 100,
101,
105, 106
on Port
nn
R0C Relay 0 Common
R0NC Relay 0 N.C.
T0 Transistor Output 0 Transistor output
Rating: 24V DC = 1 A max.
24V DC = 0.4 A Max for U.L.
applications
Resistive
20
on Port
nn
TC Transistor Output
Common
T1 Transistor Output 1 30
on Port
nn
To Next Page
