PowerFlex 700S Customer Power Terminal Locations and
Specifications

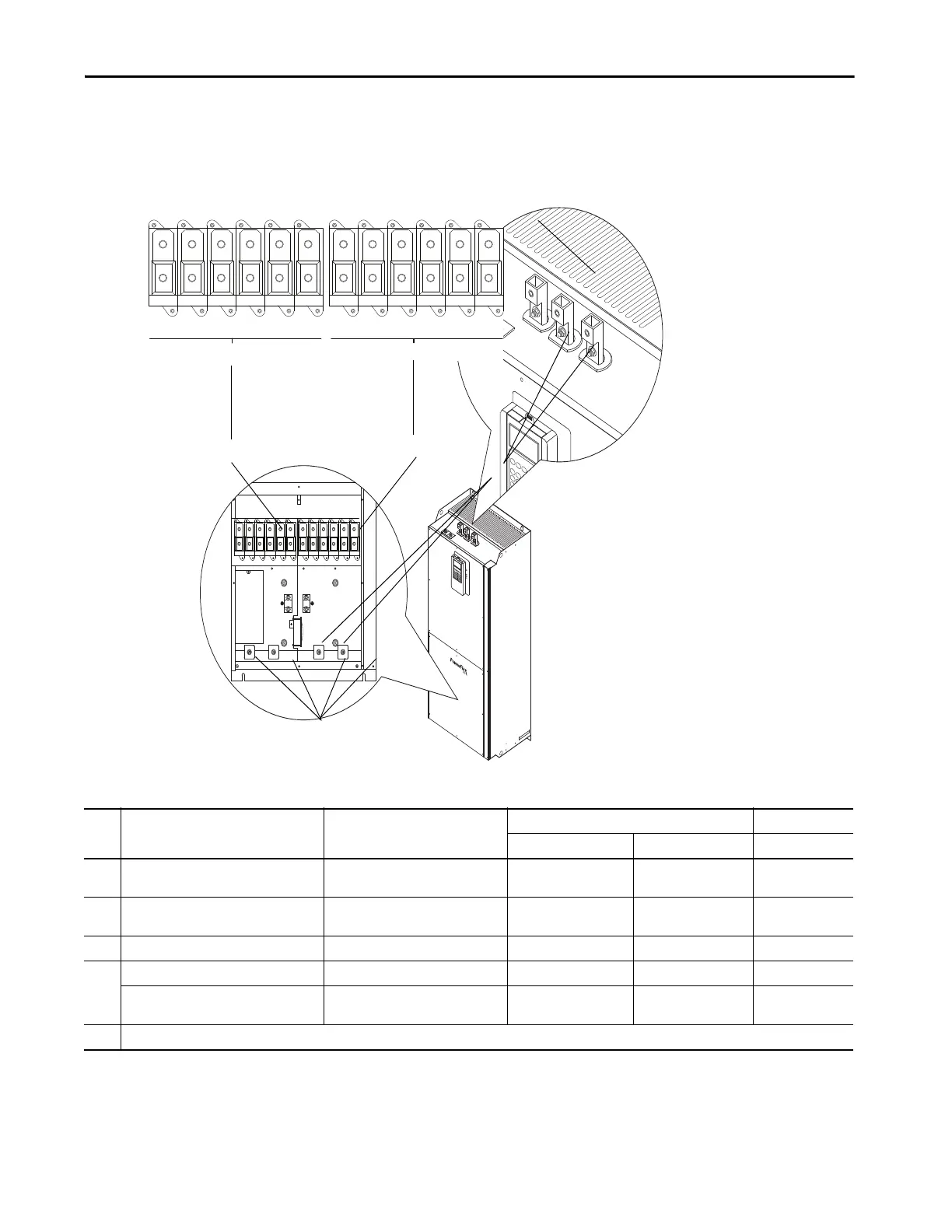

Figure 12 - Terminal Locations and Power Terminal Block
DC –
DC+
/R
+
R–
DC –
DC+/R+
R–
L1
AC Line Input Power To Motor Leads
L2 L3 L1 L2 L3 U/T1 V/T2 W/T3 U/T1 V/T2 W/T3
DC-, DC+/R+, R- terminals
shown with protective cover
removed.
1
2
3
4
5
Table 39 - PowerFlex 700S Frame 9 Power Terminal Specifications
No. Name Description Wire Size Range
(3)
Torque
Maximum Minimum Recommended
1 Input Power Terminal Block
(1)
L1, L2, L3
Input power 185.0 mm
2
(350 MCM) 95.0 mm
2
(4/0 AWG) 40 N•m (354 lb•in)
2 Output Power Terminal Block
(2)
U/T1, V/T2, W/T3
Motor connections 185.0 mm
2
(350 MCM) 95.0 mm
2
(4/0 AWG) 40 N•m (354 lb•in)
3 SHLD Terminal, PE, Motor Ground Terminating point for wiring shields 95.0 mm
2
(4/0 AWG) 5.0 mm2 (10 AWG) 22 N•m (195 lb•in)
4 DC Bus
(2)
(2 Terminals; DC–, DC+) DC input or external brake resistor 185.0 mm
2
(350 MCM) 95.0 mm
2
(4/0 AWG) 40 N•m (354 lb•in)
DC Bus w/Brake
(3)
(3 Terminals; DC–, DC+/
R+, R–)
DC input/internal brake 185.0 mm
2
(350 MCM) 95.0 mm
2
(4/0 AWG) 40 N•m (354 lb•in)
5 Cable Clamp for Shield
(1) Do not exceed maximum wire size. Parallel connections may be required.
(2) DC terminal and brake lugs can be removed.
(3) Maximum/minimum sizes that the terminal block will accept - these are not recommendations.
