66 Rockwell Automation Publication 750-RM004A-EN-P - April 2018
Chapter 1 Selection Considerations
Device Ports and Main
Control Board I/O
The PowerFlex 700S drive had some provision to add I/O and communication
option modules. The PowerFlex 755T products have many optional I/O and
communication modules.
PowerFlex 700S Device Ports and Main Control Board
The PowerFlex 700S main control board has fixed I/O module configurations
that you cannot modify. There are a number of cable connection points that
allow various HIM and communication DPI™ connections.

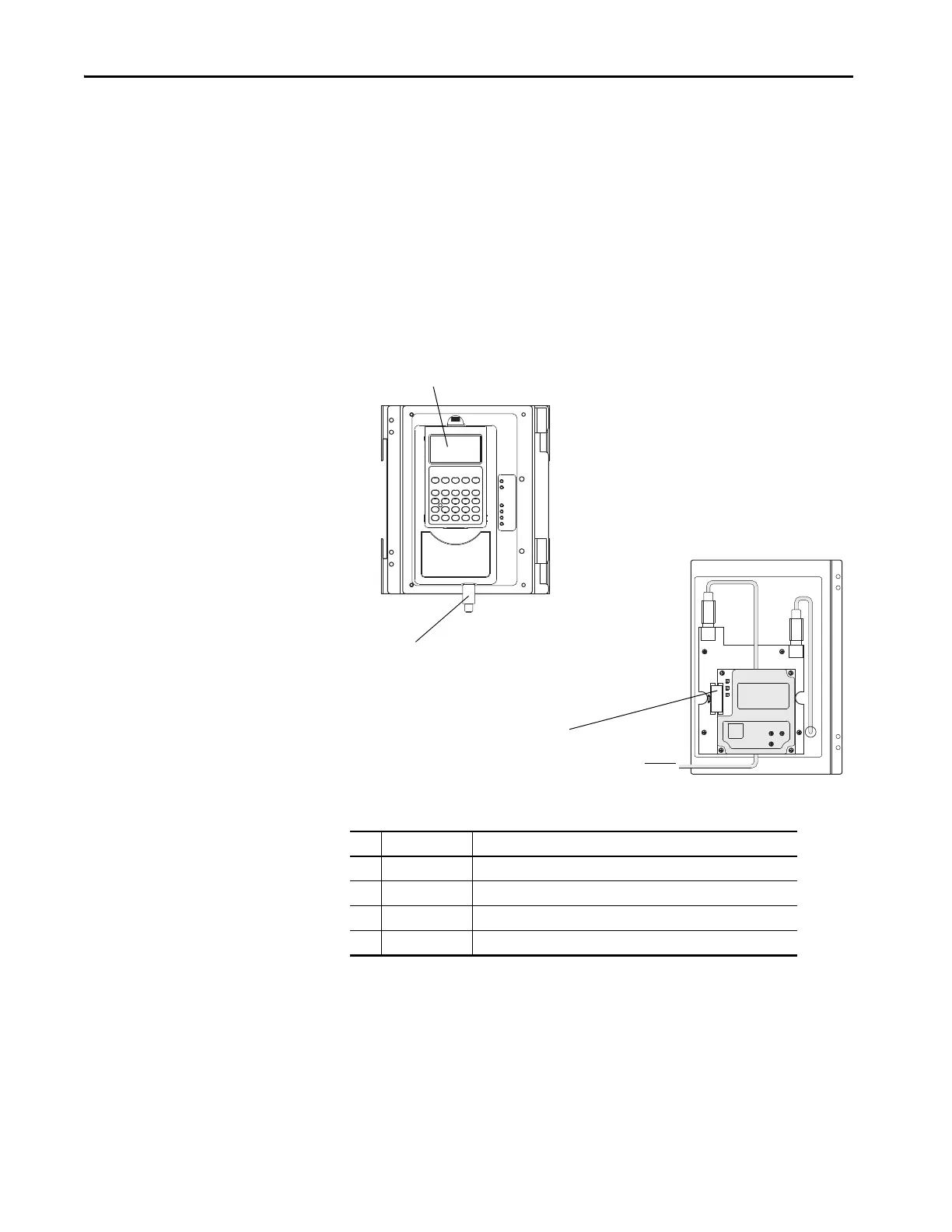

Figure 8 - PowerFlex 700S Device Connector Locations and Assignments
DPI Port 4 is not available.
X1
X2
The HIM panel opens to allow access to the DPI
interface board on back side of panel. To open the
panel, remove the screws on left side of the HIM
panel and swing open.
Back View
To drive control (Main Control board
on 700S, DPI Interface board on
700H).
1
2, 3
4
No. Connector Description
1 DPI Port 1 HIM connection when installed in the drive.
2 DPI Port 2 Cable connection for handheld and remote options.
3 DPI Port 3 or 2 Splitter cable that is connected to DPI Port 2 provides additional port.
4 DPI Port 5 Cable connection for communications adapter.
