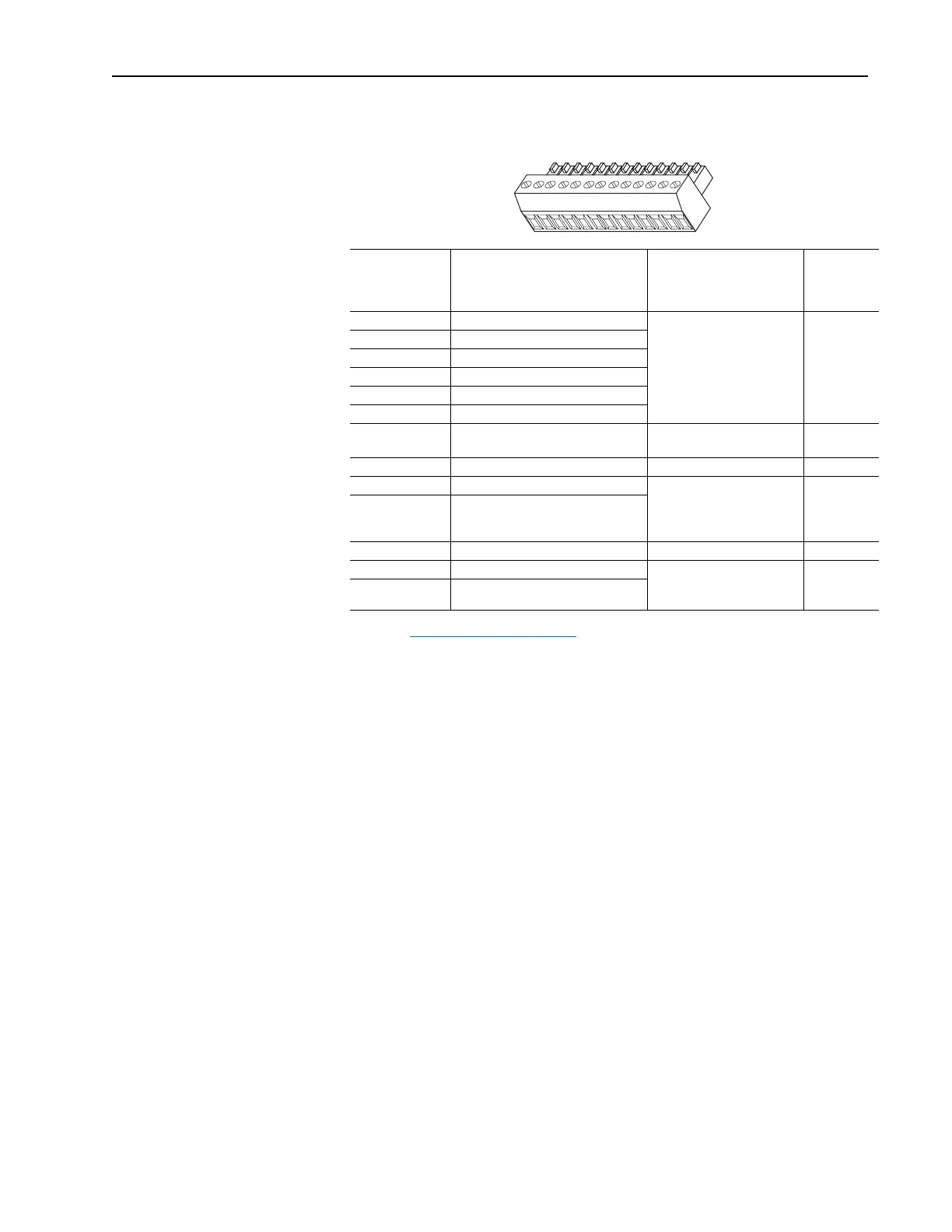

PowerFlex 700S Control Wiring 3-13
Table 3.G TB2 - Row B (Bottom) Terminals
Terminal Signal Description
Related
Parameter
B13 Encoder Signal A Secondary encoder interface.
5 or 12V dc switch selectable
(1)
, Nominal current draw per
channel @ 12V dc 45 mA,
@5V dc 32 mA
Maximum input frequency for
Encoders 0 & 1 is 500 kHz.
(1)
Refer to Encoder Input Settings on page 3-16 for necessary dip switch settings.
222, 240,
241, 242,
243, 244,
245, 246,
247, 248
B12 Encoder Signal Not A
B11 Encoder Signal B
B10 Encoder Signal Not B
B9 Encoder Signal Z
B8 Encoder Signal Not Z
B7 Shield Connection point for encoder
shield.
B6 Unused
B5 Relay Output Relay contact output.
Rating: 5A @ 24V dc
Resistive, 2A 24V dc
Inductive
824, 841,
842
B4 Relay Output Return
B3 Unused
B2 Power Supply +12V dc (B) (+) 15/2V dc power supply for
secondary encoder interface.
Rating 300 mA
(2)
(3)
(2)
This power supply supports only the secondary encoder interface. Do not use it to power circuits outside of the
drive
(3)
To enable 5V supply, set Jumper J6 (located in the Main Control Board) to positions T2 and T3. Default 12V
supply is set to T1 and T2.
B1 Power Supply +12V dc Return (B) (-)
B1
2
3
4
5
6
7
8
9
10
11
12
13
