3-14 PowerFlex 700S Control Wiring
Figure 3.4 TB2 - Row B (Bottom) Wiring Examples
Hard Enable Circuitry
The PowerFlex 700S provides a dedicated hardware enable input for
applications that require the drive to be disabled without software
interpretation.

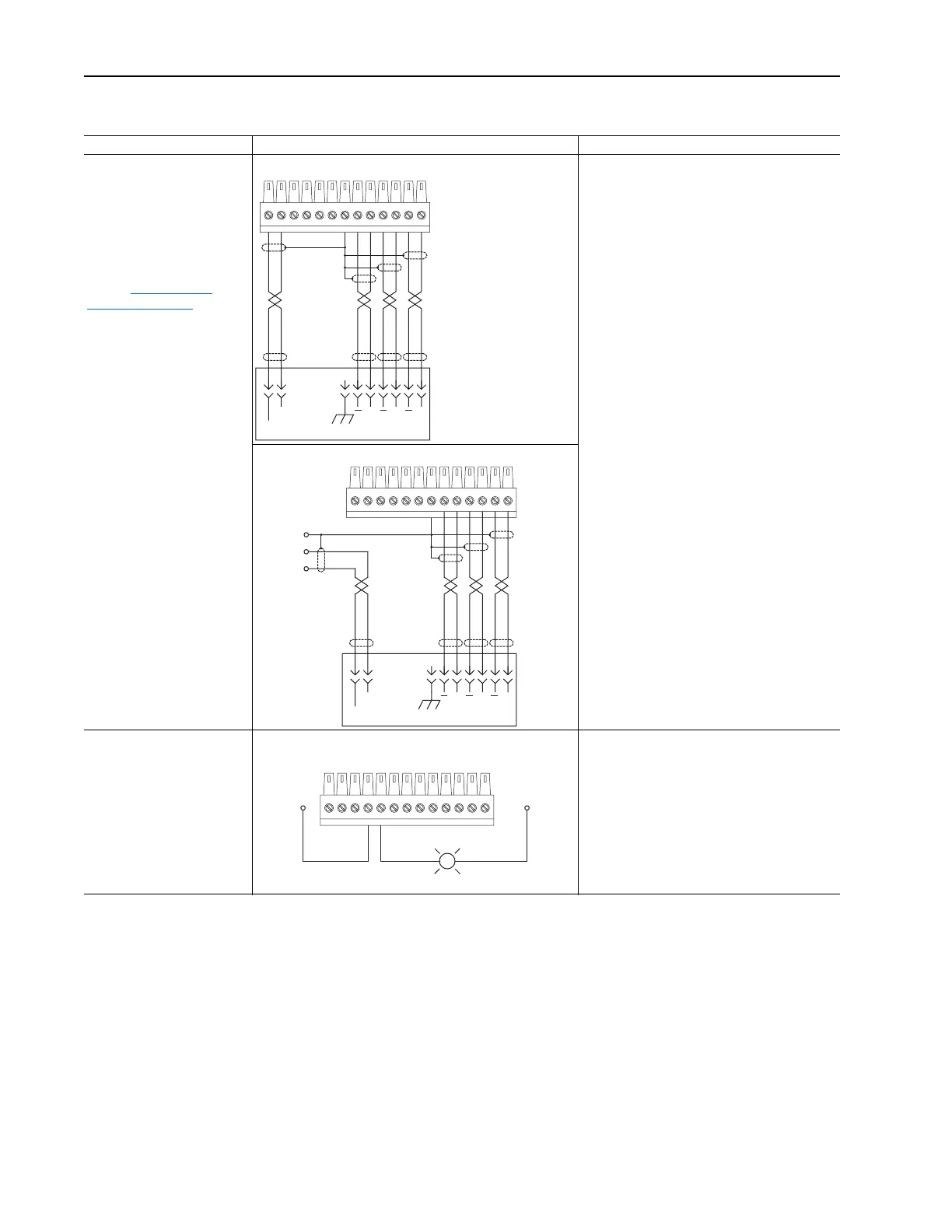

Input/Output Connection Example Required Parameter Changes
Secondary Encoder Interface
- Supports 12V dc differential
encoders with internal power
supply.
5V dc differential encoders
require external power supply
and special jumper settings.
Refer to Auxiliary Power
Supply on page 3-15 for
external power supply and
jumper settings.
For 5V dc differential encoders
with internal power supply, set
Jumper J6 to positions T2 and
T3.
Secondary Encoder - using internal power supply Example: Using Encoder 1 for Primary Motor
Speed Feedback
• Set the value of Parameter 222 [Motor Fdbk
Sel] to a value of 1 - Encoder 1, so the drive will
use this encoder as the primary motor speed
feedback device
• Set the value of Parameter 242 [Encoder1 PPR]
to match the encoder’s resolution
Secondary Encoder - using external power supply
Auxiliary Output - Relay
contact output
Auxiliary Output, Used to Indicate Running Example: Using Auxiliary Output to Indicate
Running
• Link Parameter 155 [Logic Status], the source,
to Parameter 841 [Relay Out Data], the sink
• Set Parameter 842 [Relay Out Bit] to a value of
one, so that Parameter 155 [Logic Status] / bit 1
“Running” will control the output.
1312111098721
Power
Common
(Return)
AA
BBZZ
Case Ground
13121110987
Power
Common
(Return)
AA
BBZZ
Case Ground
Shield
Power
Common
(Return)
45
Running
External
24V Power
External
24V dc
Common
(Return)
To Next Page
