Rockwell Automation Allen-Bradley PowerFlex 700S Installation Manual

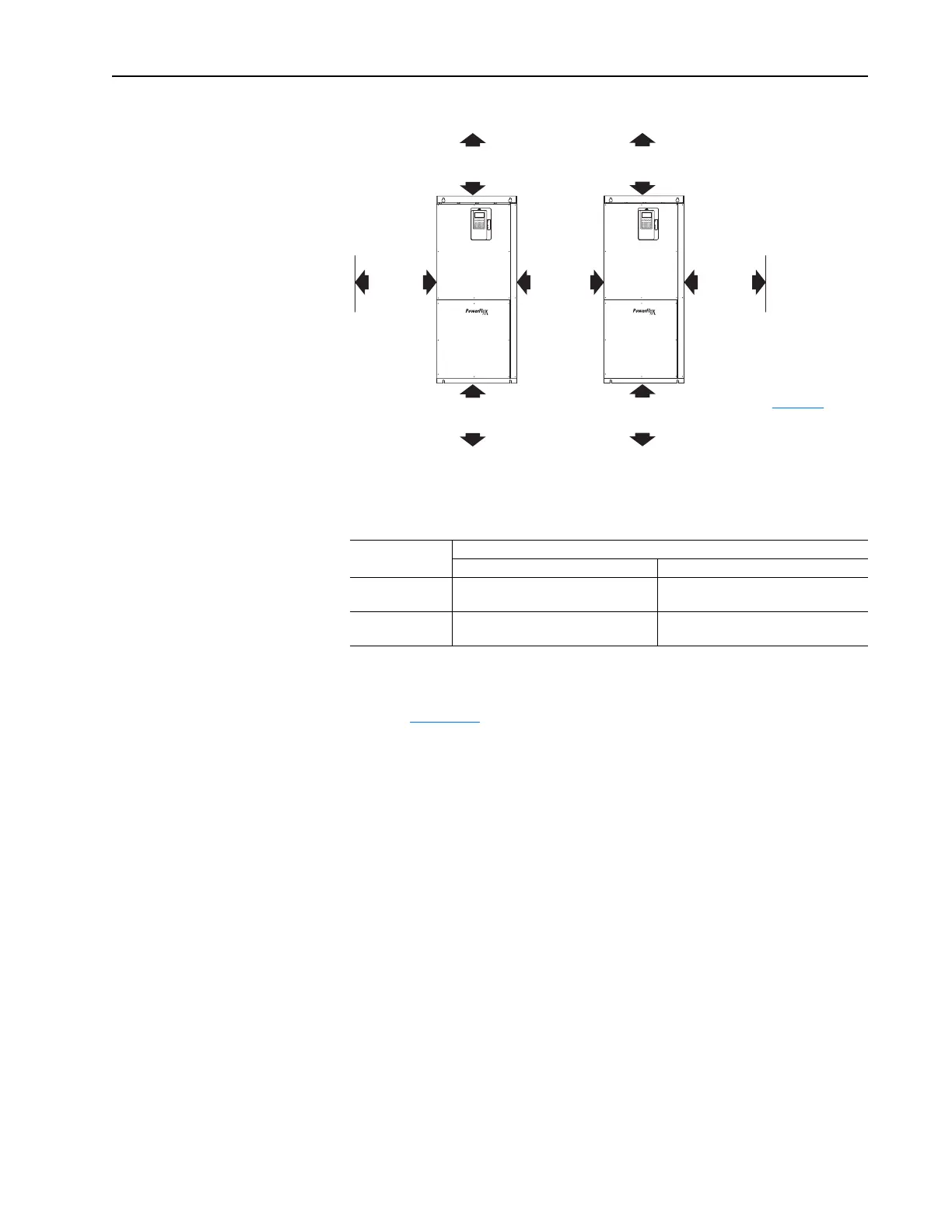

Frame 9 Installation 5-3
Minimum Mounting
Clearances
Operating Temperatures
Drive requires a minimum of 1300 m
3
/h (765 cfm) of cooling air.
Nameplate Location
Refer to Figure 5.2.
400.0 mm
(15.75 in.)
80.0 mm
(3.2 in.)
50.0 mm
(1.97 in.)
350.0 mm
(13.8 in.)
400.0 mm
(15.75 in.)
350.0 mm
(13.8 in.)
50.0 mm
(1.97 in.)
Refer to Figure 5.2 for
detailed dimension
information.
PowerFlex Drive
Surrounding Air Temperature
Normal Duty Heavy Duty
700H 0 to 40 degrees C (32 to 104 degrees
F)
0 to 50 degrees C (32 to 122 degrees F)
700S 0 to 40 degrees C (32 to 104 degrees
F)
0 to 40 degrees C (32 to 104 degrees F)
