Rockwell Automation Allen-Bradley PowerFlex 700S - Wiring the Resolver Feedback Option Card to a Resolver

PowerFlex 700S Resolver Feedback Option Card C-3
Recommended Cable
Rockwell Automation strongly recommends the use of Reliance Electric
417900-207CG cable for installation, or an equivalent cable that meets
these specifications:
• 3 Twisted Pairs, 80°C, 300V
• Chrome FPR Jacket, Plenum Rated
• Conductor Size: 18 AWG
• Twists Per Inch: 2-3 twists per inch of wire lay per pair
• Capacitance Per Pair: not to exceed 30 pF per foot +/- 0.3 pF as read on a
GEN_RAD Model 1658 RLC Digibridge or equivalent
• Capacitance Difference Pair to Pair: not to exceed 0.6 pF per foot as read
on a GEN_RAD Model 1658 RLC Digibridge or equivalent
• Resistance per 1000 Feet: 17.15Ω +/- 10%
• Inductance per 1000 Feet: 0.13 mH +/- 10% as read on a GEN_RAD
Model 1658 RLC Digibridge or equivalent
• Insulation Thickness: 0.008 in.
• Conductor Stranding 16/30
• Jacket Thickness: 0.018 in.

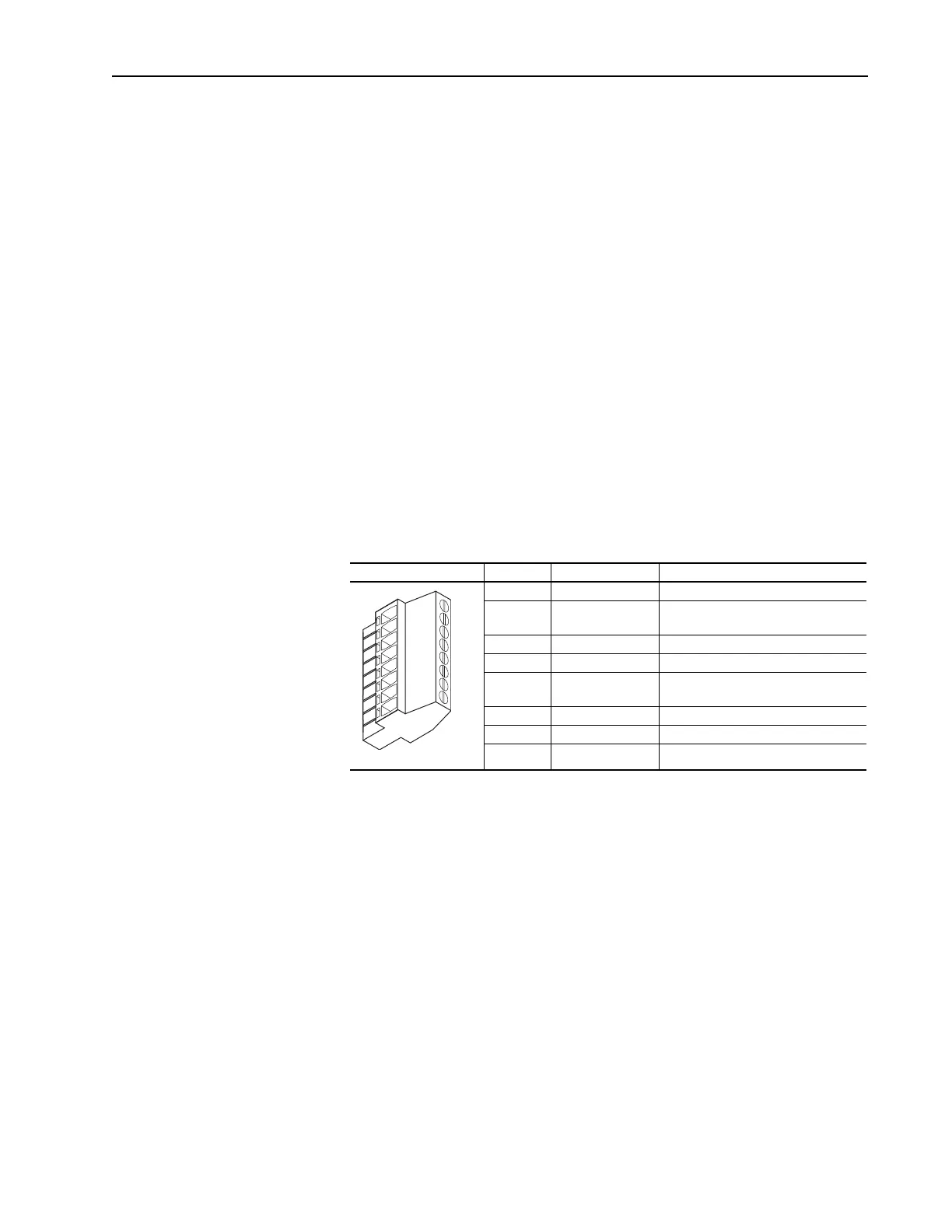

Wiring the Resolver
Feedback Option Card to a
Resolver
Terminal Signal Description
8 REF HIGH Positive Reference signal
7 SHIELD Connection point for resolver cable
shield
6 REF LOW Negative Reference signal
5 SIN HIGH Positive Sine signal
4 SHIELD Connection point for resolver cable
shield
3 SIN LOW Negative Sine signal
2 COS HIGH Positive Cosine signal
1 COS LOW Negative Cosine signal
12345 6 78
ahw0272.eps
