Rockwell Automation Allen-Bradley PowerFlex 700S Installation Manual

C-4 PowerFlex 700S Resolver Feedback Option Card

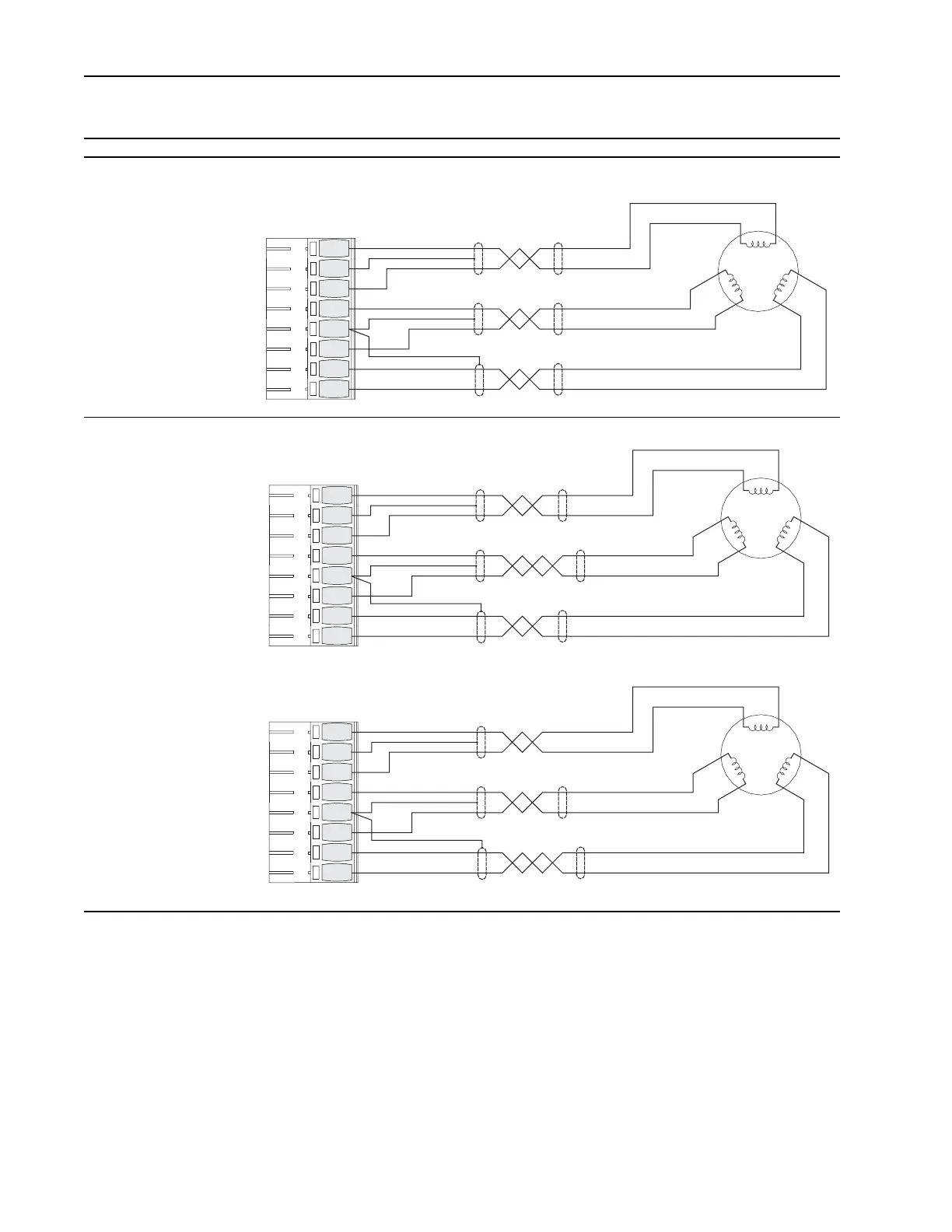

Connection Examples
Resolver Interface - Clockwise Rotation = Count Up
Resolver Interface - Clockwise Rotation = Count Down (Reverse Polarity of Sine or Cosine Signals)
REF HIGH 8
SHIELD 7
REF LOW 6
SIN HIGH 5
SHIELD 4
SIN LOW 3
COS HIGH 2
COS LOW 1
REF
+-
SIN COS
+
+
-
-
ahw0273.eps
REF HIGH 8
SHIELD 7
REF LOW 6
SIN HIGH 5
SHIELD 4
SIN LOW 3
COS HIGH 2
COS LOW 1
REF
+-
SIN COS
+
+
-
-
REF HIGH 8
GROUND 7
REF LOW 6
SIN HIGH 5
GROUND 4
SIN LOW 3
COS HIGH 2
COS LOW 1
REF
+-
SIN COS
+
+
-
-
ahw0274.eps
