Rockwell Automation Allen-Bradley PowerFlex 700S Installation Manual

6-8 Frame 10 Installation
Dimensions

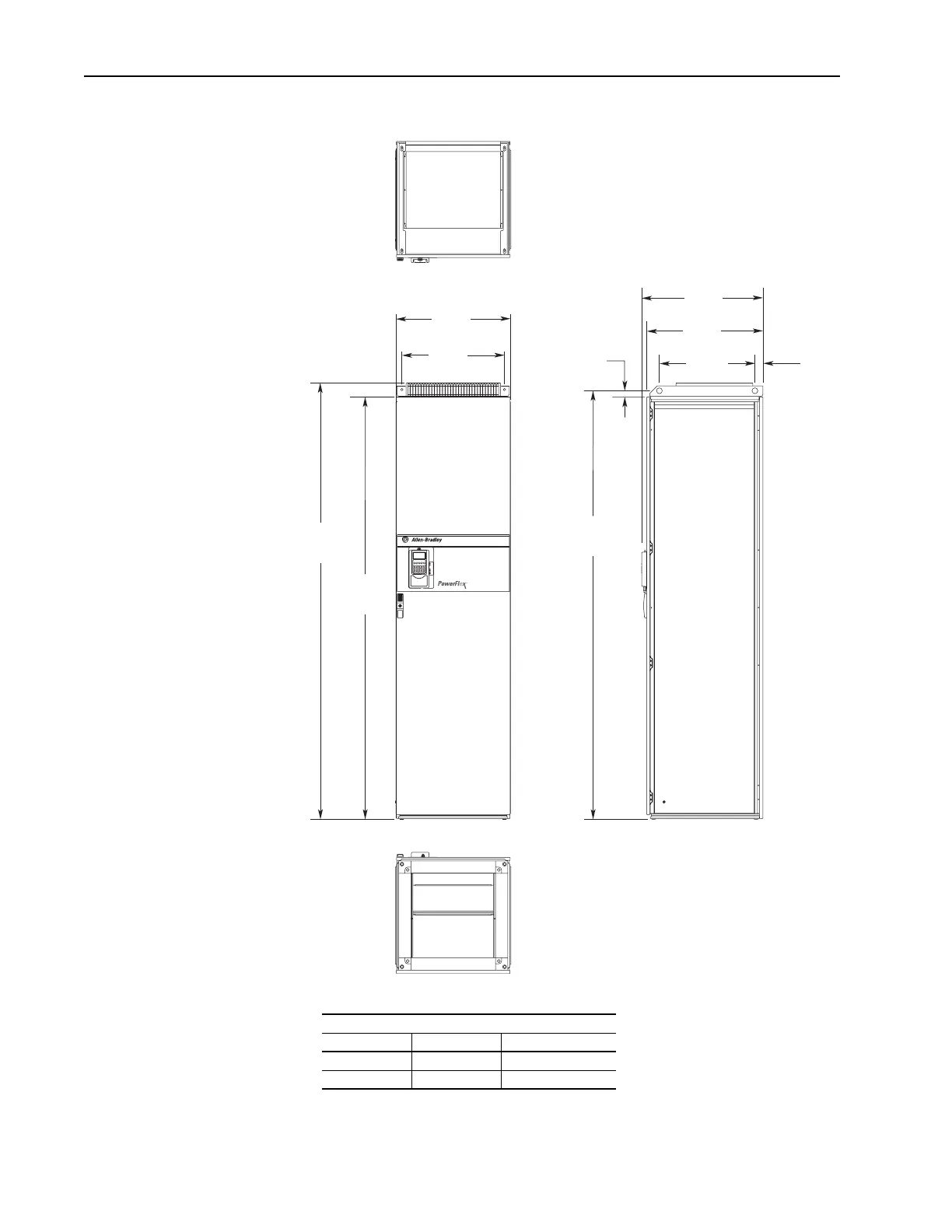

Figure 6.1 Frame 10 Dimensions
Dimensions are in millimeters and (inches).
2275.0
(89.57)
2201.8
(86.68)
597.0
(23.50)
534.7
(21.05)
2234.0
(87.95)
32.3
(1.27)
42.0
(1.65)
498.0
(19.61)
605.5
(23.84)
632.5*
(24.90)
* This dimension is the depth for drives with
the optional door-mounted HIM installed
Weight kg (lbs.)
Type Drive Drive & Packaging
AC Input 480 (1056) 495 (1091)
DC Input 365 (802) 380 (837)
