2-8 PowerFlex 700H Control Wiring
Reference Control
“Auto” Speed Sources
The drive speed command can be obtained from a number of different
sources. The source is determined by drive programming and the condition
of the Speed Select digital inputs, Auto/Manual digital inputs or reference
select bits of a command word.
The default source for a command reference (all speed select inputs open or
not programmed) is the selection programmed in [Speed Ref A Sel]. If any
of the speed select inputs are closed, the drive will use other parameters as
the speed command source.
“Manual” Speed Sources
The manual source for speed command to the drive is either the HIM
requesting manual control or the control terminal block (analog input) if a
digital input is programmed to “Auto/Manual.”
Changing Speed Sources
The selection of the active Speed Reference can be made through digital
inputs, DPI command, jog button or Auto/Manual HIM operation.

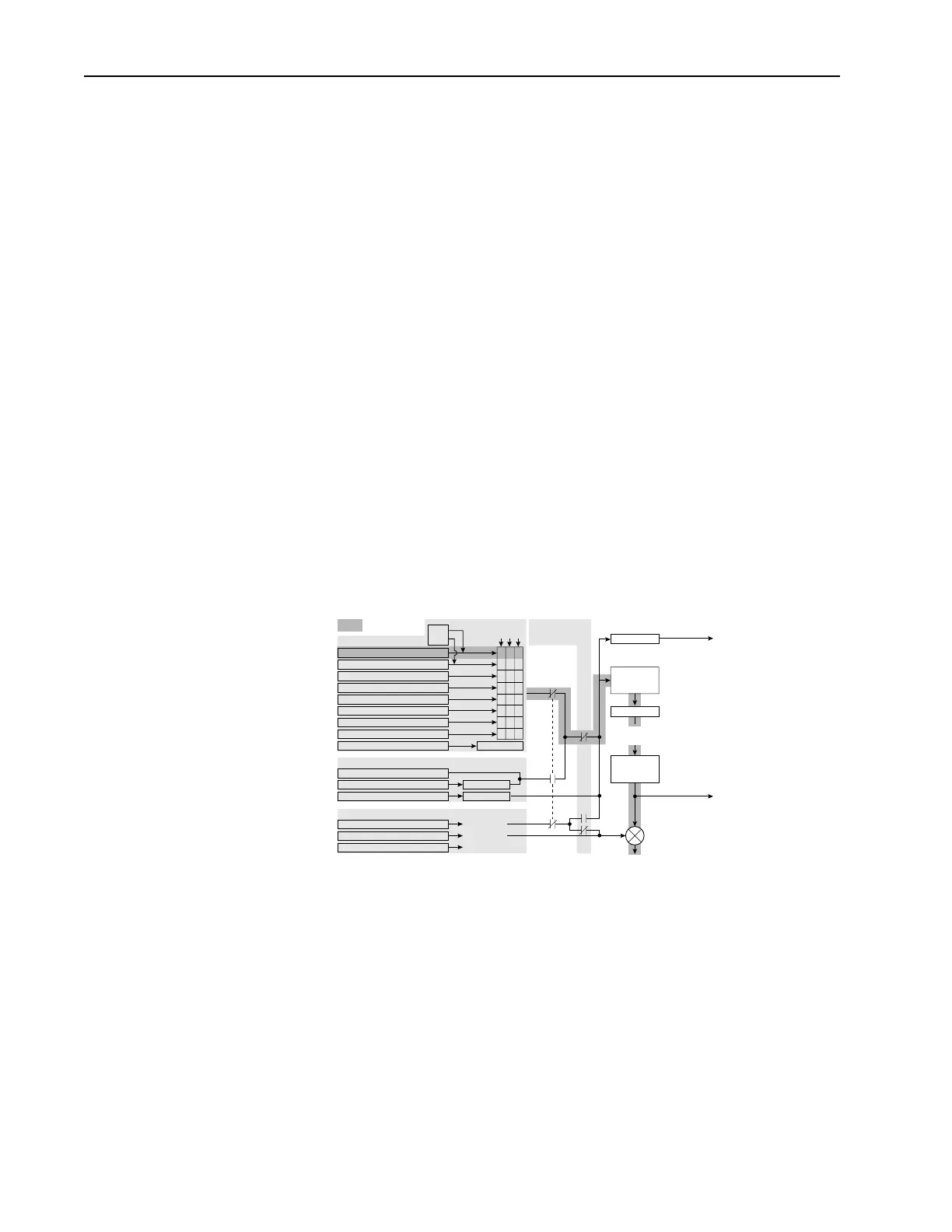

Figure 2.5 Speed Reference Selection Chart
(1)
(1)
To access Preset Speed 1, set parameter 090 or 093 to “Preset Speed 1.”
= Default
Speed Ref B Sel, Parameter 093
Preset Speed 2, Parameter 102
Preset Speed 3, Parameter 103
Preset Speed 4, Parameter 104
Preset Speed 5, Parameter 105
Preset Speed 6, Parameter 106
Preset Speed 7, Parameter 107
TB Man Ref Sel, Parameter 096
Digital Input
DPI Port Ref 1-6, See Parameter 209 DPI Command
Jog Speed, Parameter 100
Jog Command
HIM Requesting Auto/Manual
Tr im
[Digital Inx Select]:
Speed Sel
321
001
011
010
100
101
110
111
Auto
Man
Drive Ref Rslt
Commanded
Frequency
Min/Max Speed
Acc/Dec Ramp
and
S Curve
Pure Reference
Post Ramp
to follower drive for
Frequency Referenc
to follower drive for
Frequency Referenc
Auto Speed Ref Options
Manual Speed Ref Options
Slip Compensation
1 "Slip Comp"
None
0 "Open Loop"
PI Output 2 "Process Pi"
Speed Adders
[Speed Mode]:
PI Exclusive Mode
[PI Configuration]:
Bit 0, Excl Mode = 0
Output Frequency
Mod Functions
(Skip, Clamp,
Direction, etc.)
Speed Ref A Sel, Parameter 090
000
To Next Page
