Rockwell Automation Allen-Bradley PowerFlex 700S - Page 25

PowerFlex 700H Control Wiring 2-7
Analog Output
±10V, 4-20 mA Bipolar
+10V Unipolar
(shown)
• Configure with Parameter 340
• Select Source Value:
Parameter 384, [Digital Out1 Sel]
• Adjust Scaling:
Parameters 343/344
2-Wire Control
Non-Reversing
(2)
24V dc internal supply
• Disable Digital Input:#1:
Parameter 361 = “0, Unused”
• Set Digital Input #2:
Parameter 362 = “7, Run”
• Set Direction Mode:
Parameter 190 = “0, Unipolar”
2-Wire Control
Reversing
(2)
External supply
(I/O Board dependent)
• Set Digital Input:#1:
Parameter 361 = “8, Run Forward”
• Set Digital Input #2:
Parameter 362 = “9, Run Reverse”
3-Wire Control
Internal supply
• No Changes Required
3-Wire Control
External supply
(I/O Board dependent).
Requires 3-wire functions
only ([Digital In1 Sel]).
Using 2-wire selections will
cause a type 2 alarm.
• No Changes Required
Digital Output
Relays shown in powered
state with drive faulted. See
page 2-4
.
2 relays at terminals 24-26.
• Select Source to Activate:
Parameters 380/384
Enable Input • Configure with parameter 366
For dedicated hardware Enable:
Remove Jumper J5 (see page 2-5
)
(1)
Refer to the Attention statement on page 2-1 for important bipolar wiring information.
(2)
Important: Programming inputs for 2 wire control deactivates all HIM Start buttons.

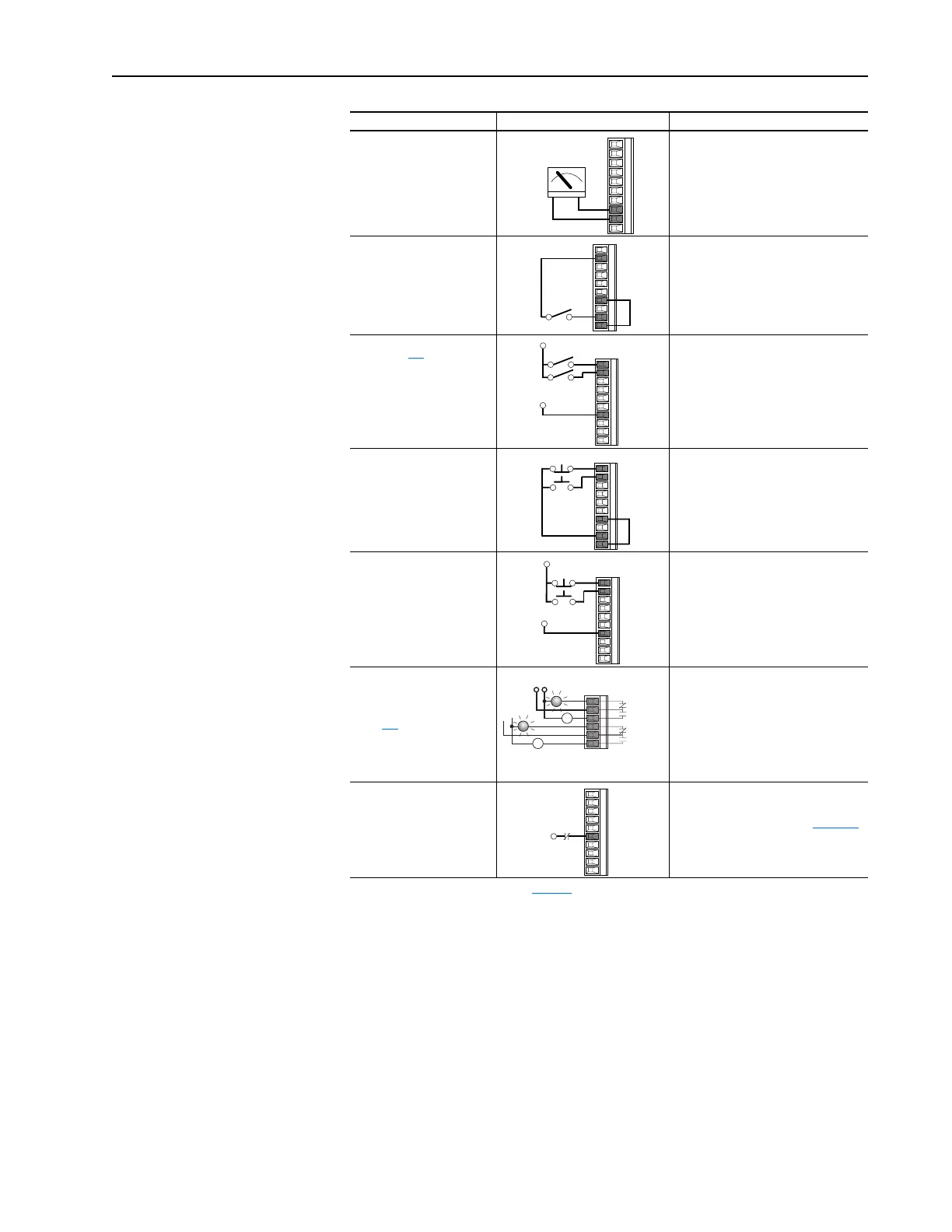

Input/Output Connection Example Required Parameter Changes
8
9
+–
12
17
20
19
Stop-Run
12
17
11
Run Rev.
Run Fwd.
115V/
+24V
Neutral/
Common
12
17
20
11
19
Start
Stop
12
17
11
Start
Stop
115V/
+24V
Neutral/
Common
21
24
Power Source
Fault
NOT Fault
NOT Run
Run
or
22
25
23
26
16
