7-8 Frame 11 Installation
Dimensions

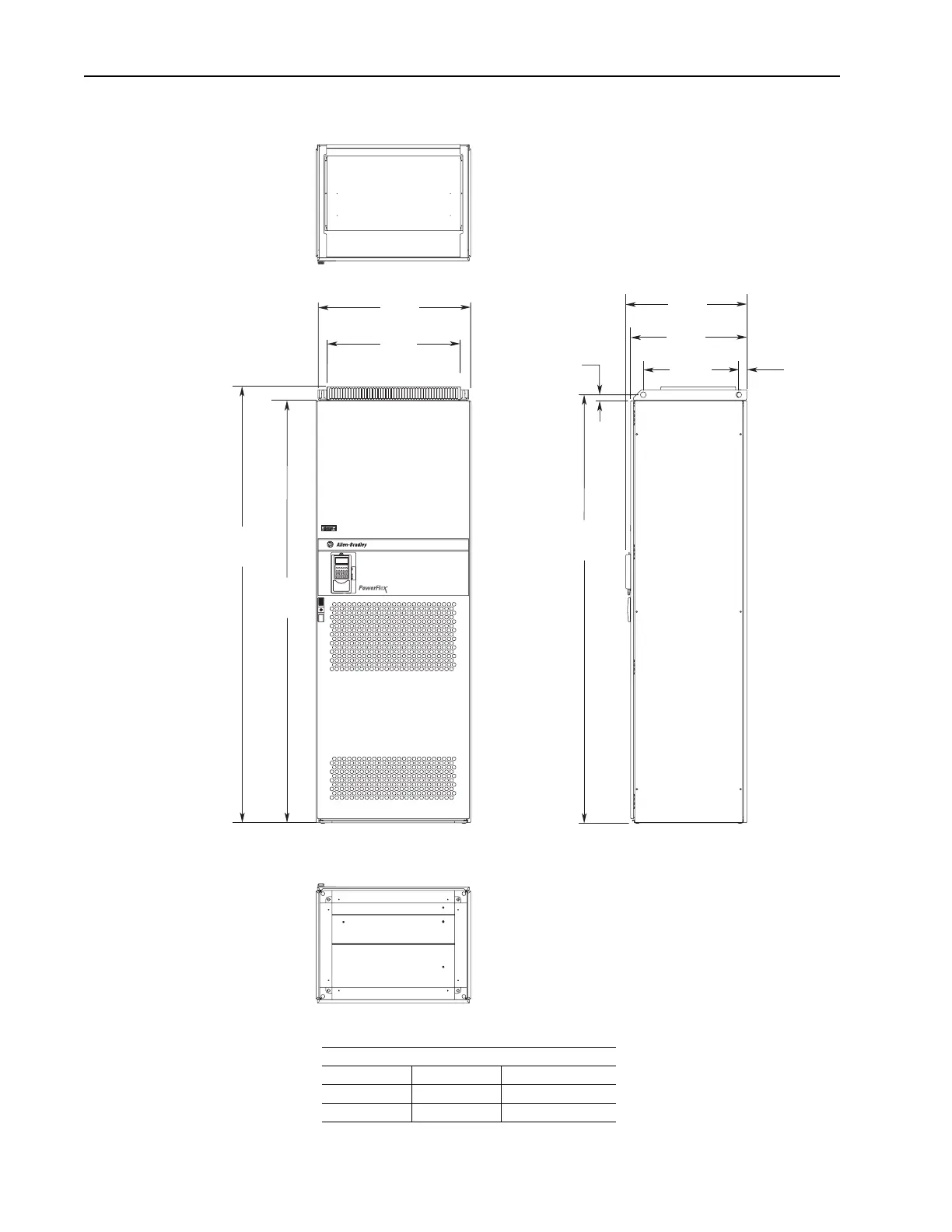

Figure 7.1 Frame 11 Dimensions
Dimensions are in millimeters and (inches).
797.0
(31.38)
736.0
(28.98)
32.25
(1.27)
2234.0
(87.95)
42.0
(1.65)
498.0
(19.61)
605.5
(23.84)
621.74*
(24.48)
DANGER!
2275.0
(89.57)
2205.0
(86.81)
* This dimension is the depth for drives with
the optional door-mounted HIM installed
Weight kg (lbs.)
Type Drive Drive & Packaging
AC Input 614 (1350) 629 (1385)
DC Input 446 (980) 461 (1015)
