3-16 PowerFlex 700S Control Wiring

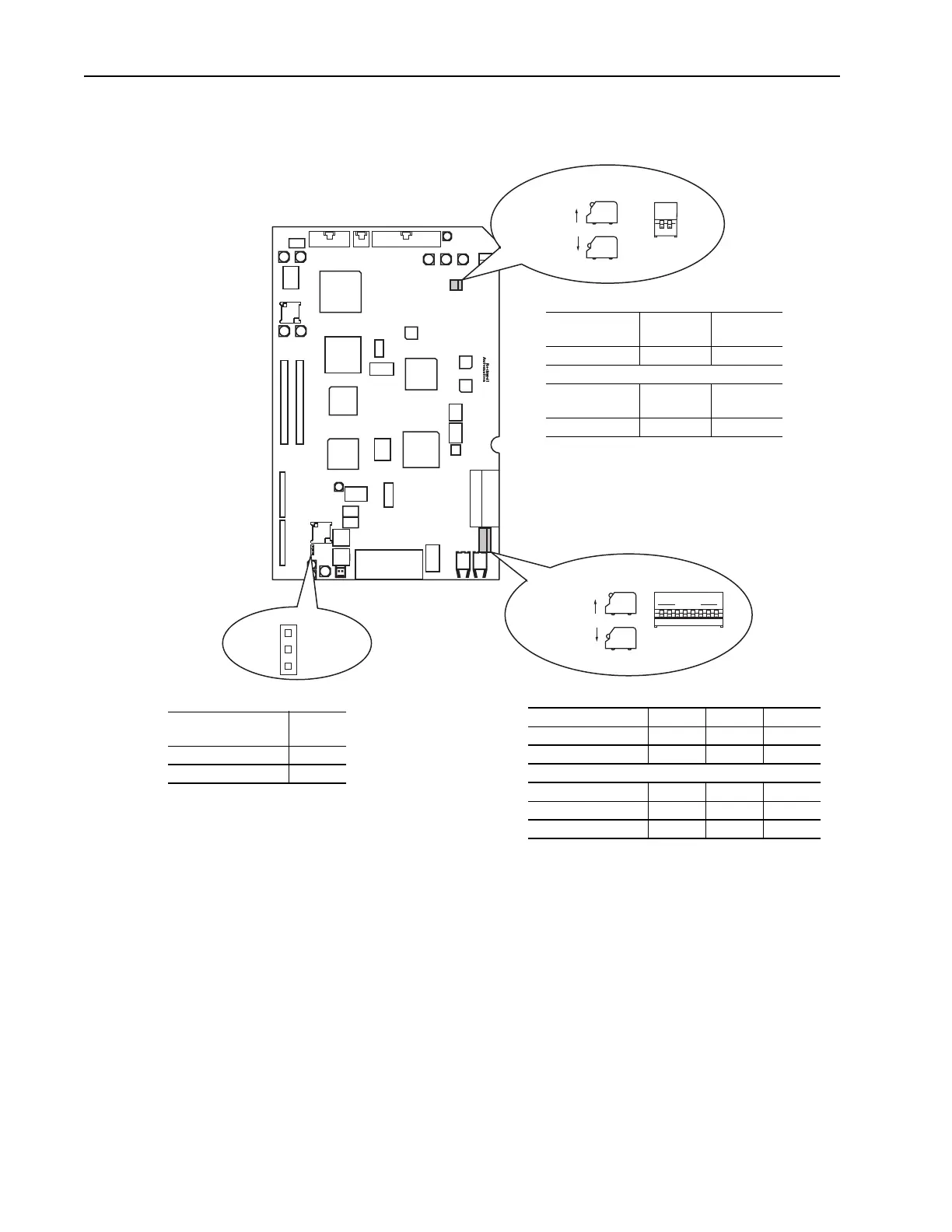

Main Control Board I/O and
Encoder Settings
Analog Input Settings
Switch SW1-1 configures the scaling of Analog Input #1. Switch SW1-2
configures the scaling of Analog Input #2. Open the switch for +/-10.0V dc
operation. Close the switch for +/-1.0V dc operation.
Encoder Input Settings
Dip switch SW2 on the main control board configures the encoder inputs
for 5V dc or 12V dc operation. Switches SW2-2, 4, and 6 are for the
primary encoder. Set these switches to match the encoder output
12
FRONT - TOP VIEW
SIDE VIEW
UP = OPEN = OFF
DOWN = CLOSED= ON
SW1
OPEN
1
FRONT - TOP VIEW
SIDE VIEW
UP = OPEN = OFF
DOWN = CLOSED= ON
SW2
2345678
J6
Pin 3
Pin 2
Pin 1
Analog Input #1
Scaling
+/-10.0V dc +/-1.0V dc
SW1-1 Open Closed
Analog Input #2
Scaling
+/-10.0V dc +/-1.0V dc
SW1-2 Open Closed
Primary Encoder SW2-2 SW2-4 SW2-6
5V dc Operation Closed Closed Closed
12V dc Operation Open Open Open
Secondary Encoder SW2-1 SW2-3 SW2-5
5V dc Operation Closed Closed Closed
12V dc Operation Open Open Open
Encoder Power
Supply Voltage
Jumper
Position
5V dc 2-3
12V dc 1-2
