Rockwell Automation Allen-Bradley PowerFlex 700S User Manual

Rockwell Automation Publication PFLEX-RM003E-EN-E - January 2011 39
Detailed Drive Operation Chapter 1

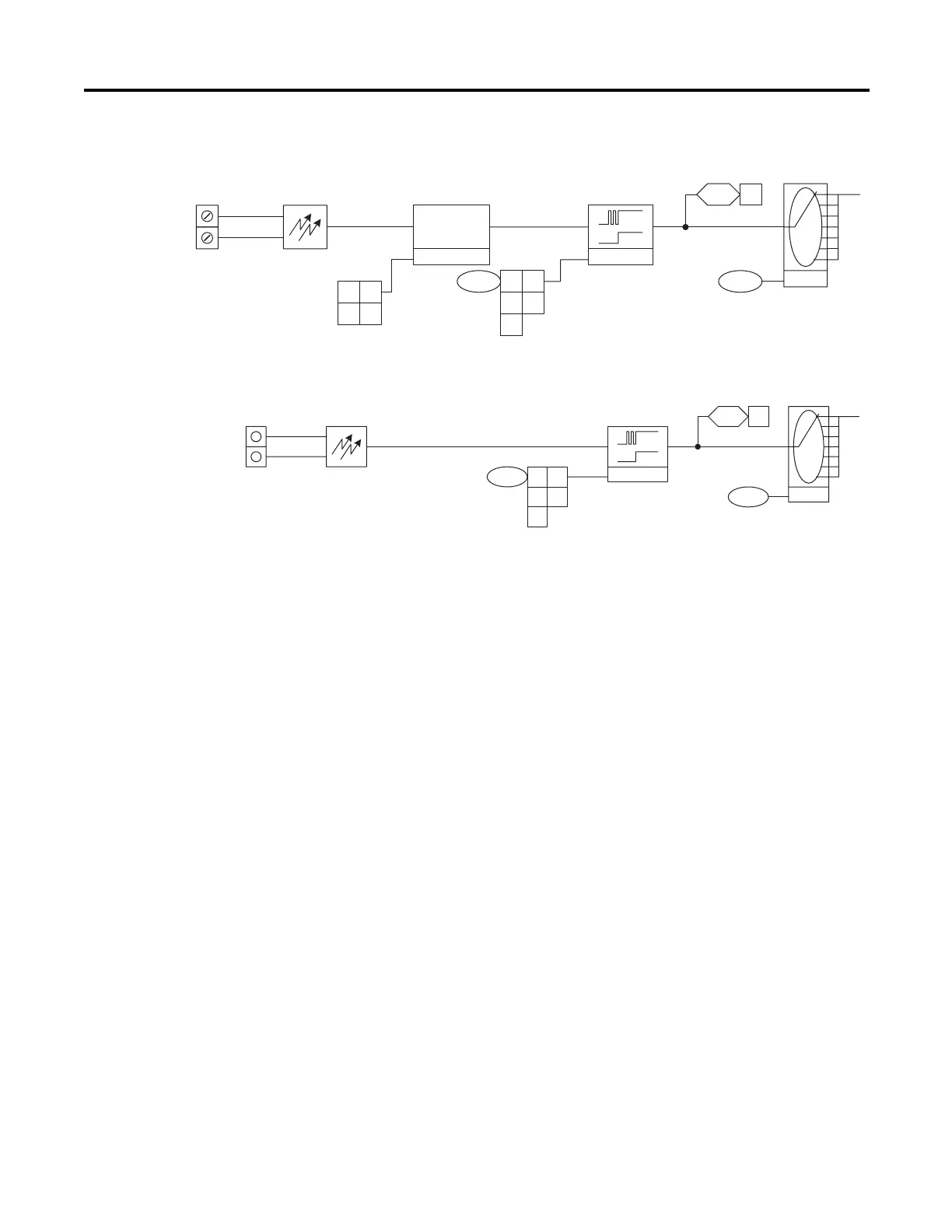

High Speed Digital Inputs:
Standard Digital Inputs:
Digital Input Status Bits
Parameter 824 [Local I/O Status] bits 1 through 6 give the status of the digital
inputs. When the bit in [Local I/O Status] associated with the digital input is on,
this means that the drive recognizes that the digital input is on. When the bit
associated with the digital input is off, this means that the drive recognizes that
the digital input is off.
Digital Outputs
Technical Information
There are three digital outputs total.
• Two Digital Outputs are 24V DC, Sourcing / Sinking, Open Collector
Type. Max Load -Internal Source = 150 mA, External = 750 mA
• The 3rd Output is a Relay, Form C, 24V DC / 120V AC, Max Load 2 A
DigIn Debounce
Debounce
SynchLink
Bit Filter
08
Prt0/1
RegisCnfg
824 01
Selector
09
10 11
823 01 02
03 04
05
825
Local I/O Status
[DigIn 1]
Dig In1 Sel
Debounce
DigIn Debounce
823 11 12
13 14
15
824 03
Selector
827
Local I/O Status
Dig In3 Sel
