Rockwell Automation Publication PFLEX-RM003E-EN-E - January 2011 187
Detailed Drive Operation Chapter 1
Bit 5 “Comm Frmt Er” indicates the format of received data does not
match the configuration of the receive port
Bit 6 “Sys Rev Err” indicates the system revision in the received data does
not match the value of Par 900 [SynchLink Rev]
Bit 7 “Mult TimeKpr” indicates more than one node on the SynchLink
system is configured as a time keeper
.
Speed Synchronization Example
This example describes how to setup SynchLink to synchronize the ramped speed
reference for two PowerFlex 700S Phase II drives using DriveExecutive.
DriveExecutive must be v3.01 with v3.03 patch installed or later (To check if the
patch is installed in DriveExecutive click Help > Details to check component
versions. RADrvSynchLink.dll must be version 3.3 or later).
Note that the “SynchLink Setup” dialog box in DriveExecutive configures the
appropriate SynchLink parameters for you as you go through the setup.

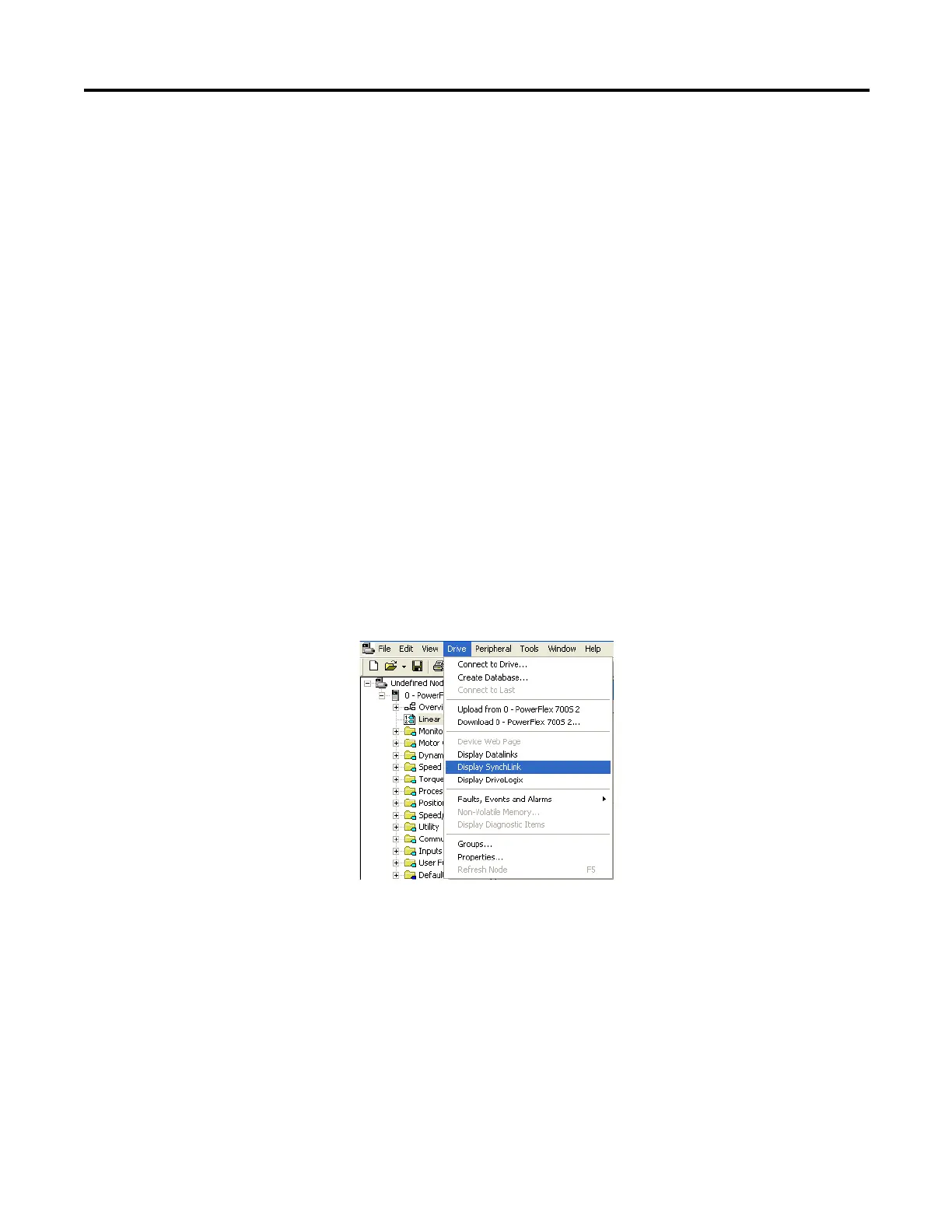

Once connected to the drive, in DriveExecutive, select Drive > Display
SynchLink.
The SynchLink Setup dialog box displays (as shown below). This is the dialog
box used to setup SynchLink.
