156 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 6 Frame 7 Renewal Kits Installation

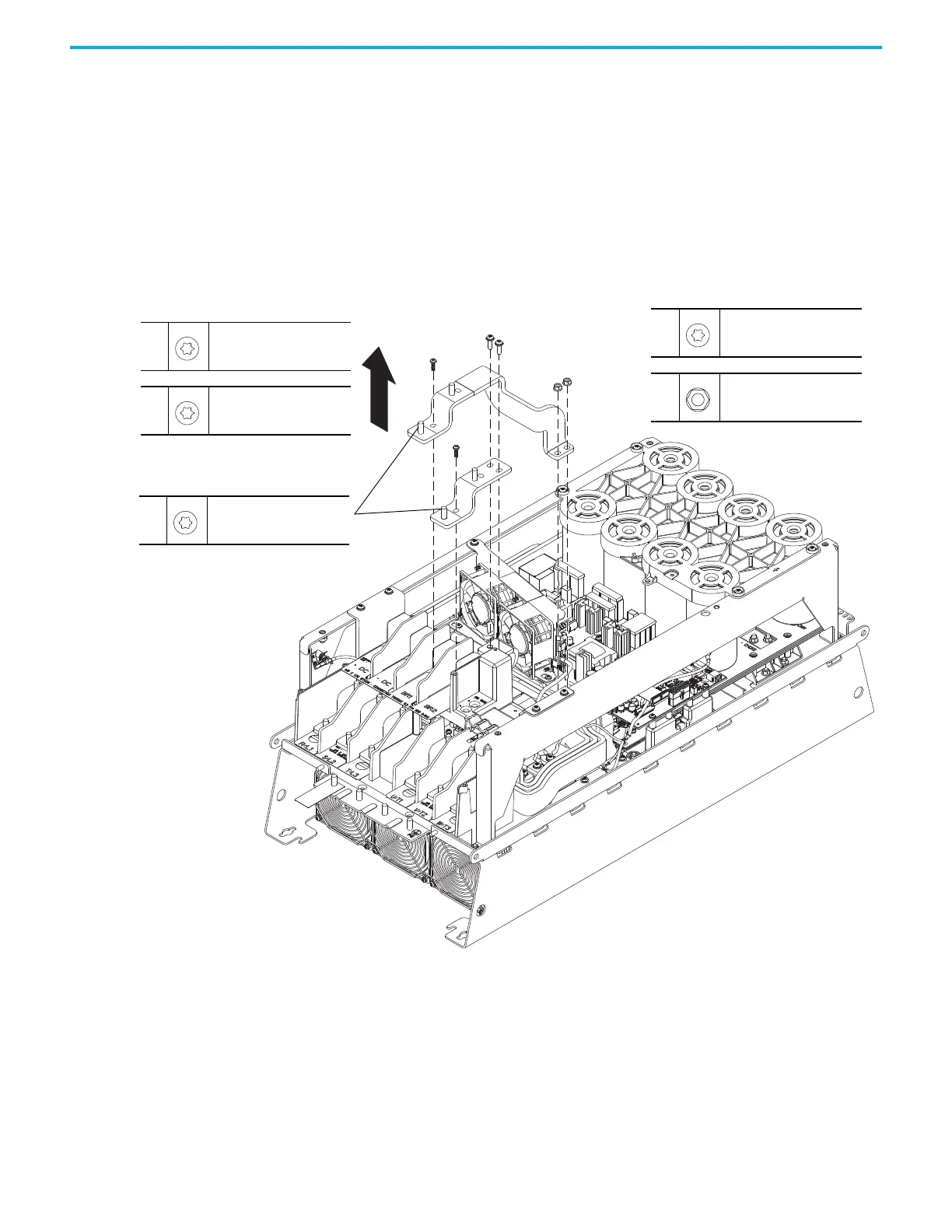

12. If a brake option is installed, complete these steps:
a. Remove the M8 nuts that secure the power cables to the brake
terminals.
b. Remove the M5 x 16 mm Torx screw that secures the long bus bar to the
BR1 terminal and remove the bus bar.
c. Remove the two M6 nuts that secure the long bus bar (BR1) to the lower
bus bars.
d. Remove the M5 x 16 mm Torx screw that secures the short bus bar to
the BR2 terminal.
e. Remove the two M6 x 20 Torx screws that secure the short bus bar to
the BR2 terminal and remove the bus bar.
12c
12b
12e
12d
12b
M5 x 16 mm
T25
4.9 N
m (43.0 lbin)
12d
M5 x 16 mm
T25
4.9 N
m (43.0 lbin)
12e
M6 x 20 mm
T30
5.2 N
m (46.0 lbin)
12c
M6
10 mm
5.2 N
m (46.0 lbin)
12a
M8
13 mm
11.3 N
m (100.0 lbin)
