Rockwell Automation Publication 750-TG101A-EN-P - June 2022 159
Chapter 6 Frame 7 Renewal Kits Installation

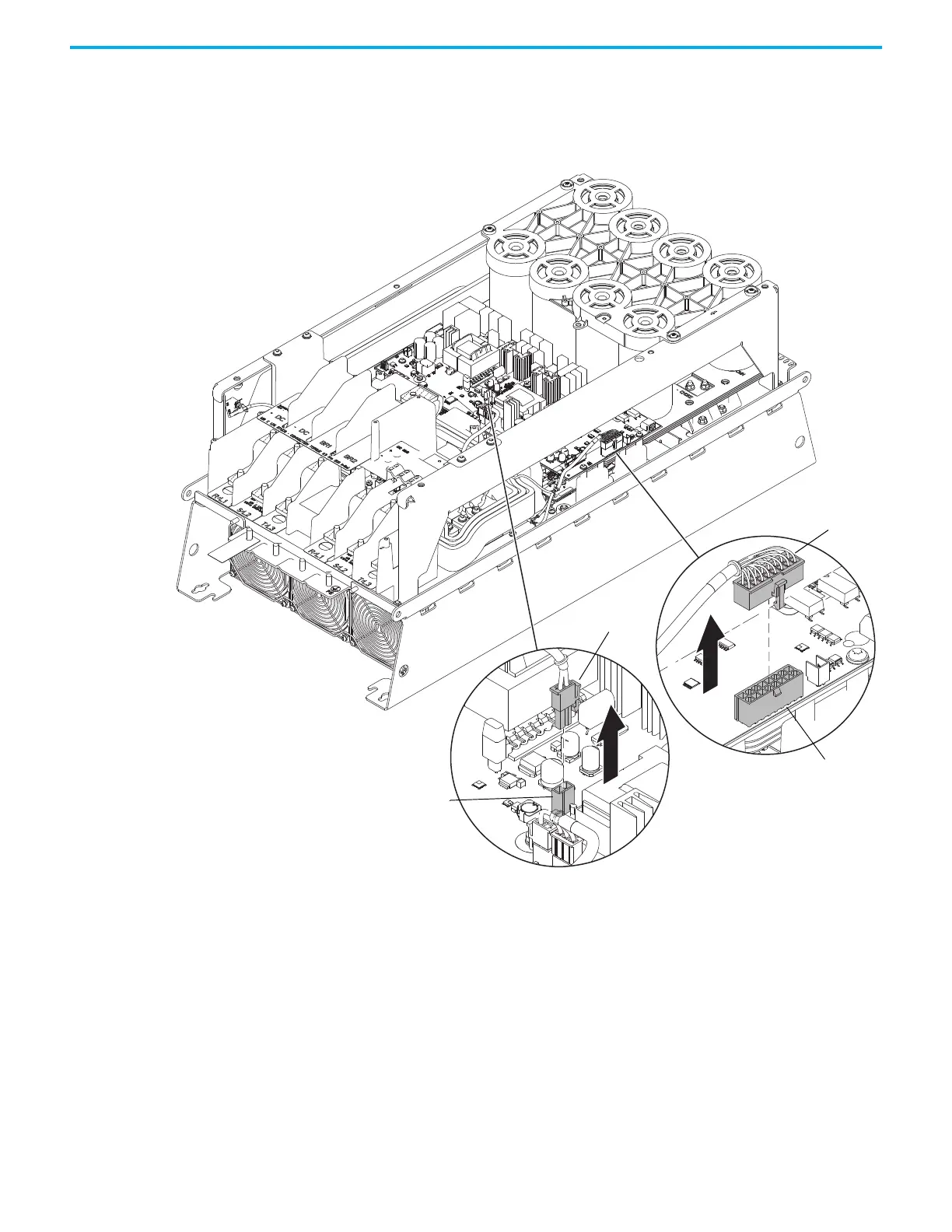

19. Disconnect the current transformer wire-harness connector P3 from J3
on the power interface circuit board (mid right).
20. If a torque accuracy module (TAM) is installed, disconnect the wire
harness connector P4 from connector J4 on the power interface circuit
board.
P3
J3
P4
J4
19
20
