168 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 6 Frame 7 Renewal Kits Installation

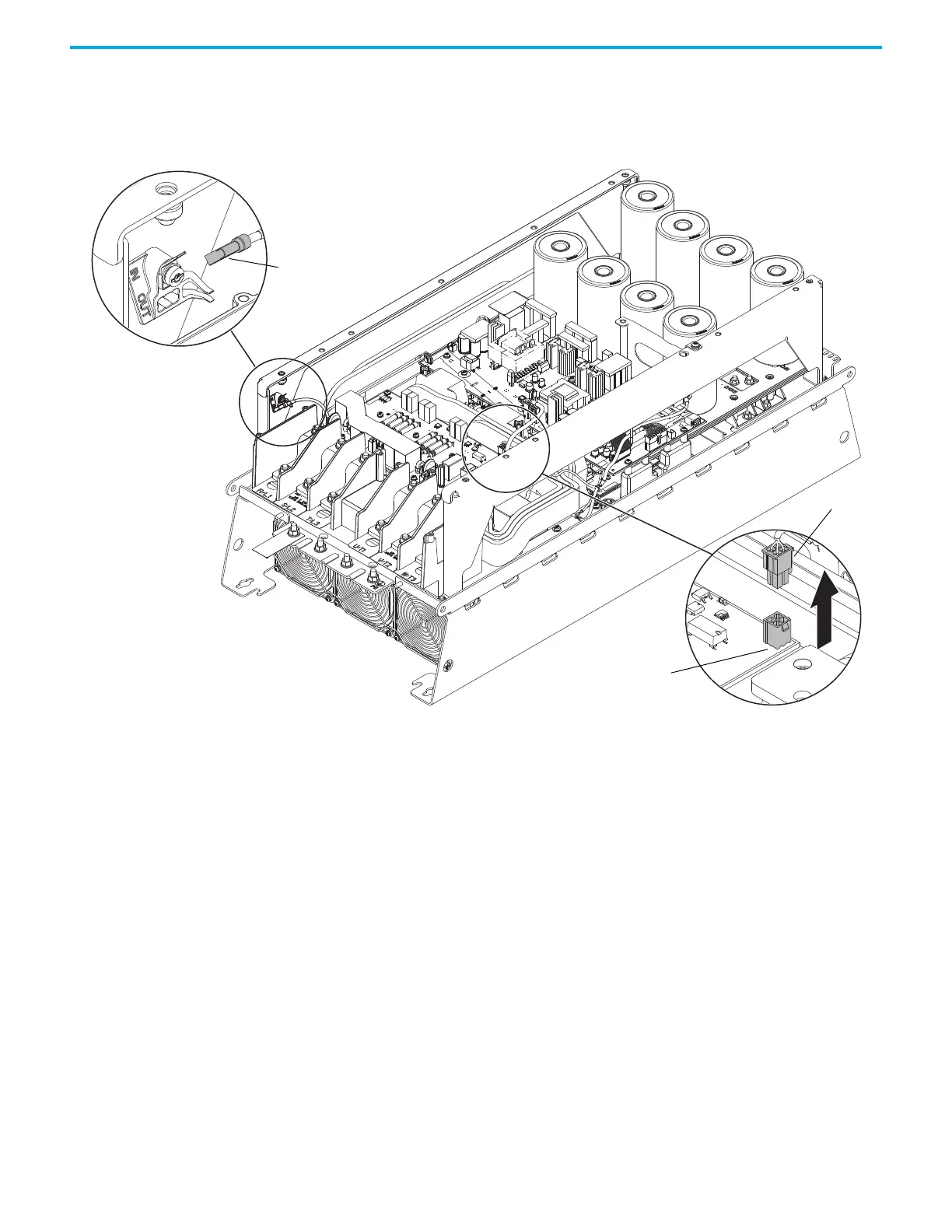

16. Note the PE-A jumper position and remove the PE-A jumper wire from
the jumper assembly on the chassis.
17. Remove the wire harness connector P10 from connector J10 on the right
side of the AC precharge circuit board.
PE-A: IN or OUT
P10
J10
16
17
