20 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 1 Before You Begin Tests, Maintenance, or Repairs
9. To apply dielectric grease to both sides, insert the edge connector into
the center of the applicator tip.
10. Repeat steps 5
…9 for each affected edge connector.
11. After use, remove the grease applicator from the grease tube.
12. Replace the cap on the grease tube.
13. By using a clean cloth, wipe the remaining grease out of the applicator tip
and close the cover.

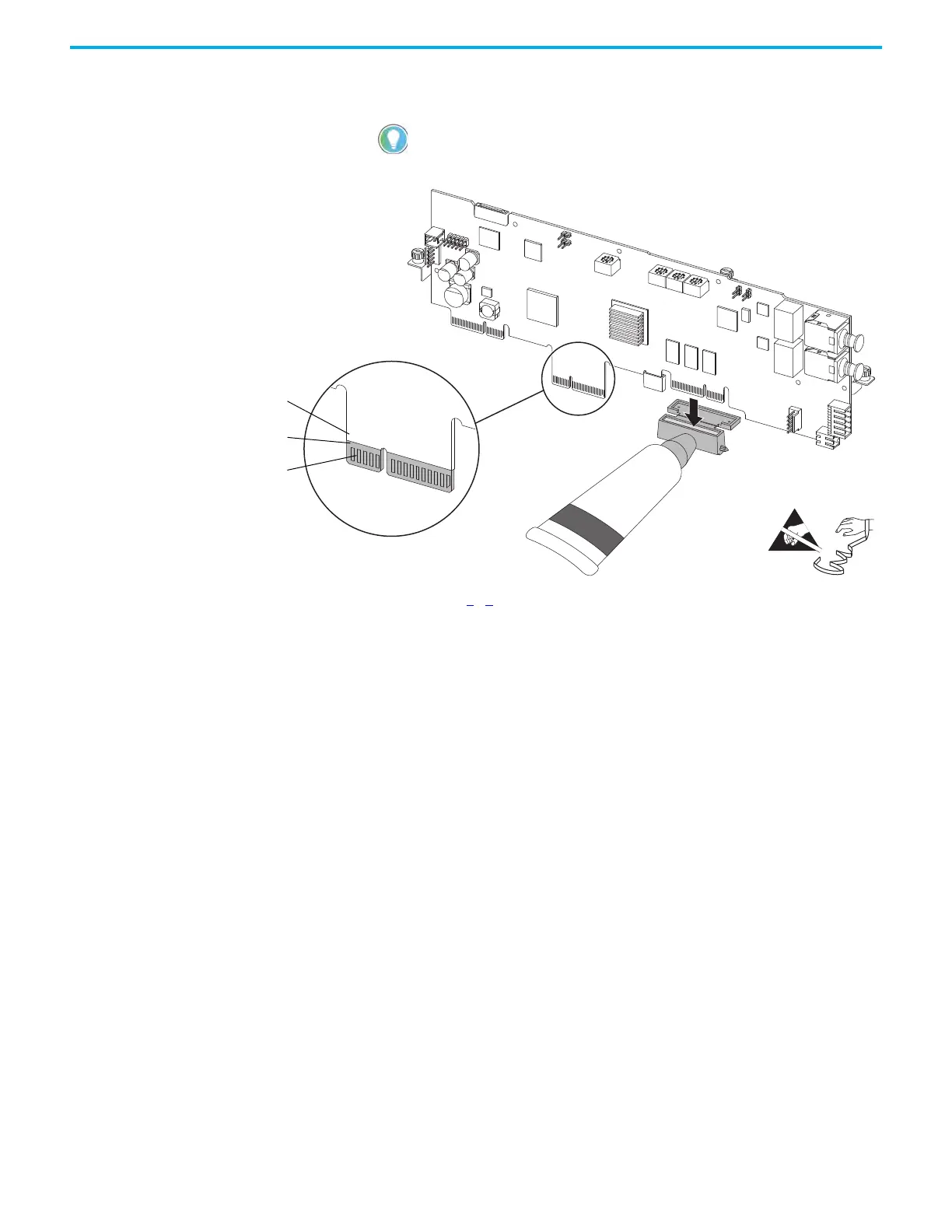

Be sure that the grease is applied beyond the edge of the gold finger surfaces
on the edge connector (ideally in contact with the conformal coating on the
board).
Edge Connector
Gold Fingers
Main Control Circuit Board Shown
Grease (Shaded)
To Next Page
