2. The Safe Off feature of the drive is currently disabled from the first lab. Now, re-wire the Safe Off

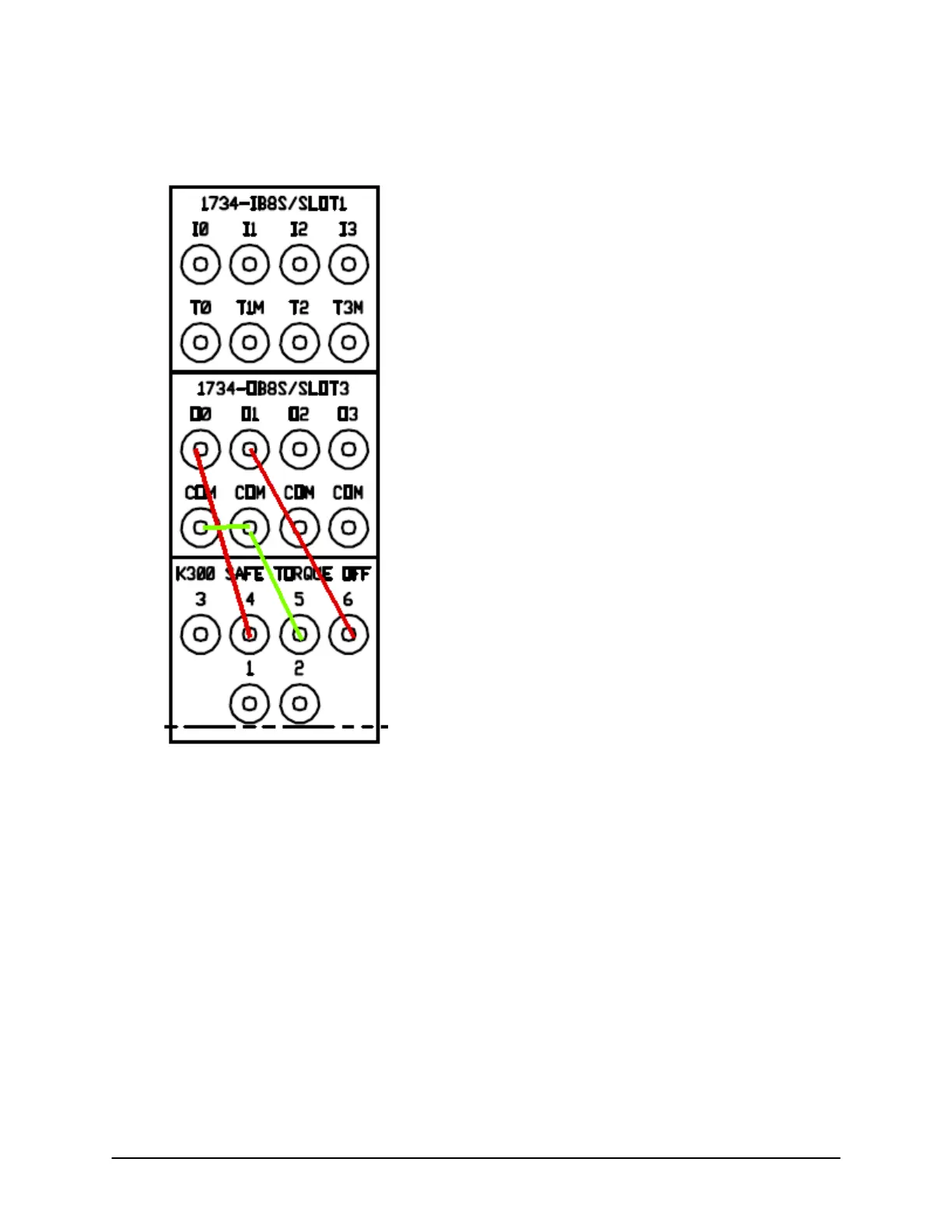

switch per the diagram below.
3. Open the RSLogix 5000 program C:\Lab Files\K300_CMSS_LAB_7_SAFEOFF.ACD.
4. Power On the demo box.
5. Download the file to the controller.
6. Change the controller to Run Mode.
Note: There may be an Error code on your drive, this is ok.
Explanation of Safe-Off Function on Demo Box
This lab demonstrates the use of the 1734 Safety Point I/O modules to control the Safe Off input to the
Kinetix 300. This lab uses the Red E-Stop Mushroom button, which is internally wired to the 1734-IB8S
Safety Input Module. The Safety Program in the Logix controller is used to detect when the E-Stop is
pulled out. The Logix program then energizes Safety Outputs on the 1734-OB8S that were hard wired
