Lab 4: Configure and Run the Kinetix 300 in Ethernet I/P Mode
In this lab, you will:
Use the open RSLogix 5000 file and download it to the controller and observe logic running
Examine the logic and understand how it executes for the Ethernet IP mode
Download the Program and Monitor the Kinetix 300 Drive
1. Important: Connect the Ethernet cable going into the Ethernet module on the Compact
GuardLogix rack.
With the RSLogix 5000 program from the previous lab still open, we will now download the .ACD
file to the controller.

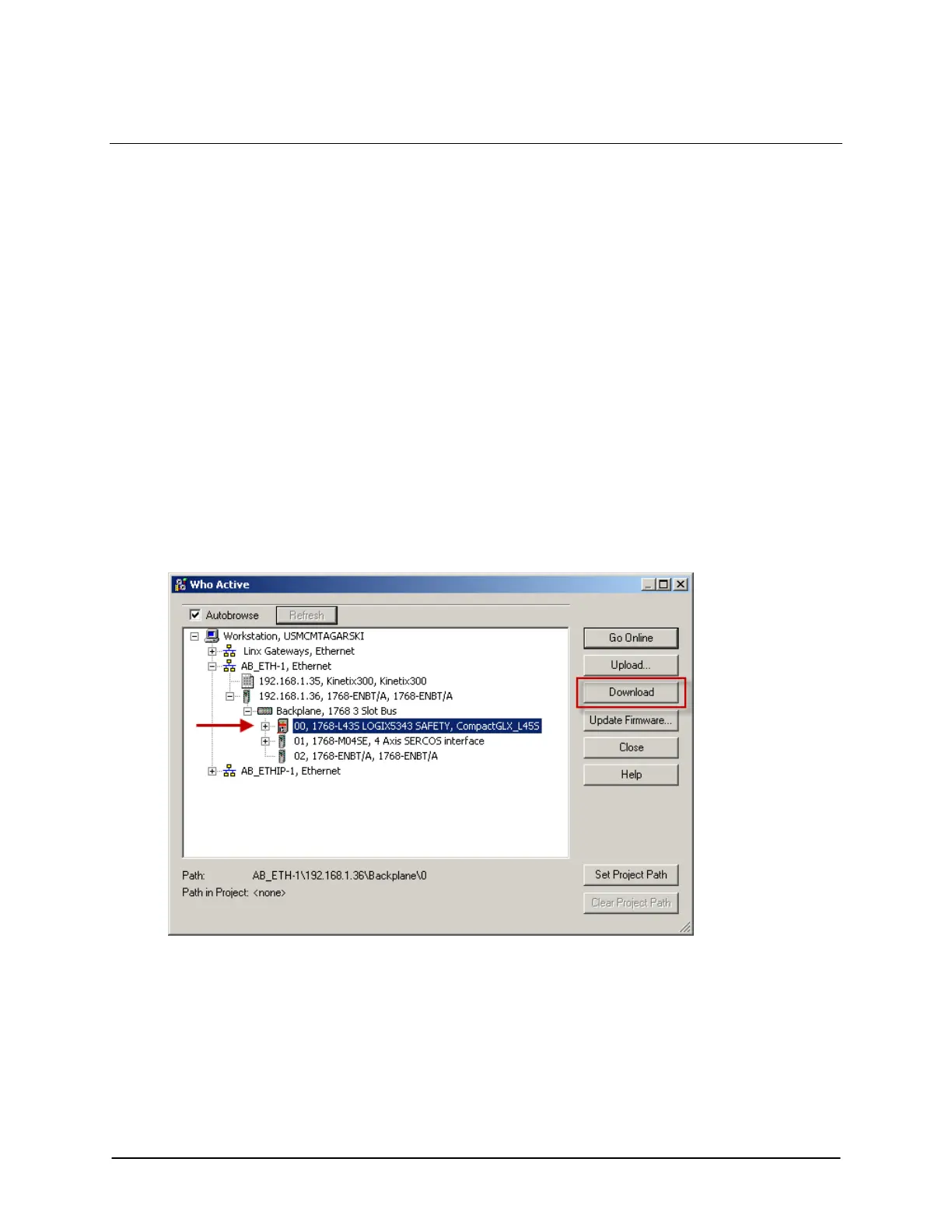

2. Click the Communications menu item and select Who Active.
3. From the dialog navigate to the controller (IP Address 192.168.1.36, slot 0) and click the
Download button.
4. When the download warning dialog displays, click the Download button to download the .acd file
to the controller.
5. Change the controller to Run Mode.
