Lab 3: Adding a Kinetix 300 in RSLogix5000
In this lab, you will:
Open a RSLogix 5000 file and add and configure a Kinetix 300 drive
Examine the Input and Output Assembly tag structures
1. Open the file C:\Lab Files\K300_CMSS_LAB_3_START.ACD

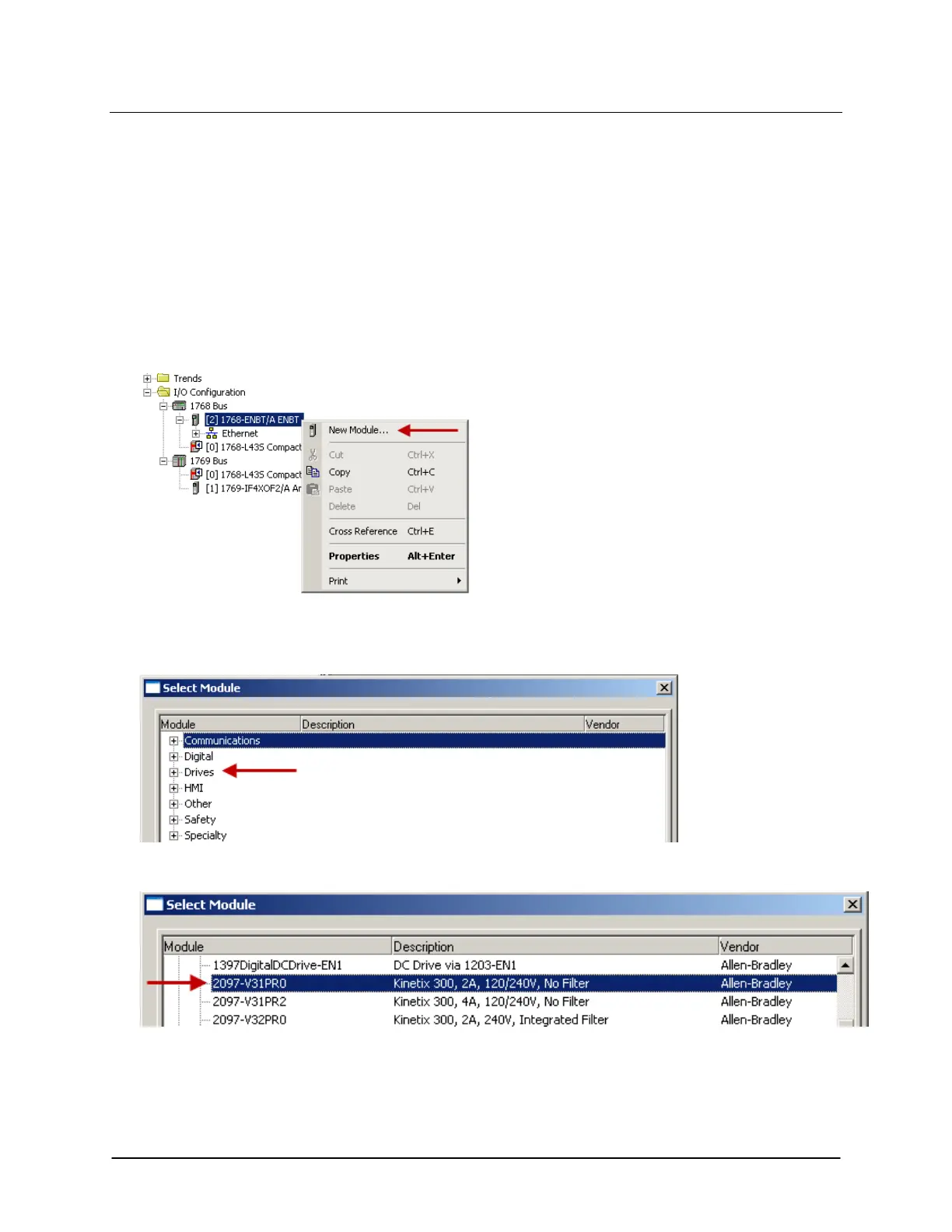

2. Right-click on I/O Configuration > 1768 Bus > [2] 1768-ENBT/A ENBT in the Controller Organizer
and select New Module.
The Select Module dialog displays.
3. Expand the Drives group by clicking the [+].
4. Select the 2097-V31PR0 Kinetix 300 drive.
The New Module dialog displays.
5. Enter the Name and IP Address as shown. It is important that the name and address match exactly,
as there is logic we have already created for you. Click OK when you are finished.
