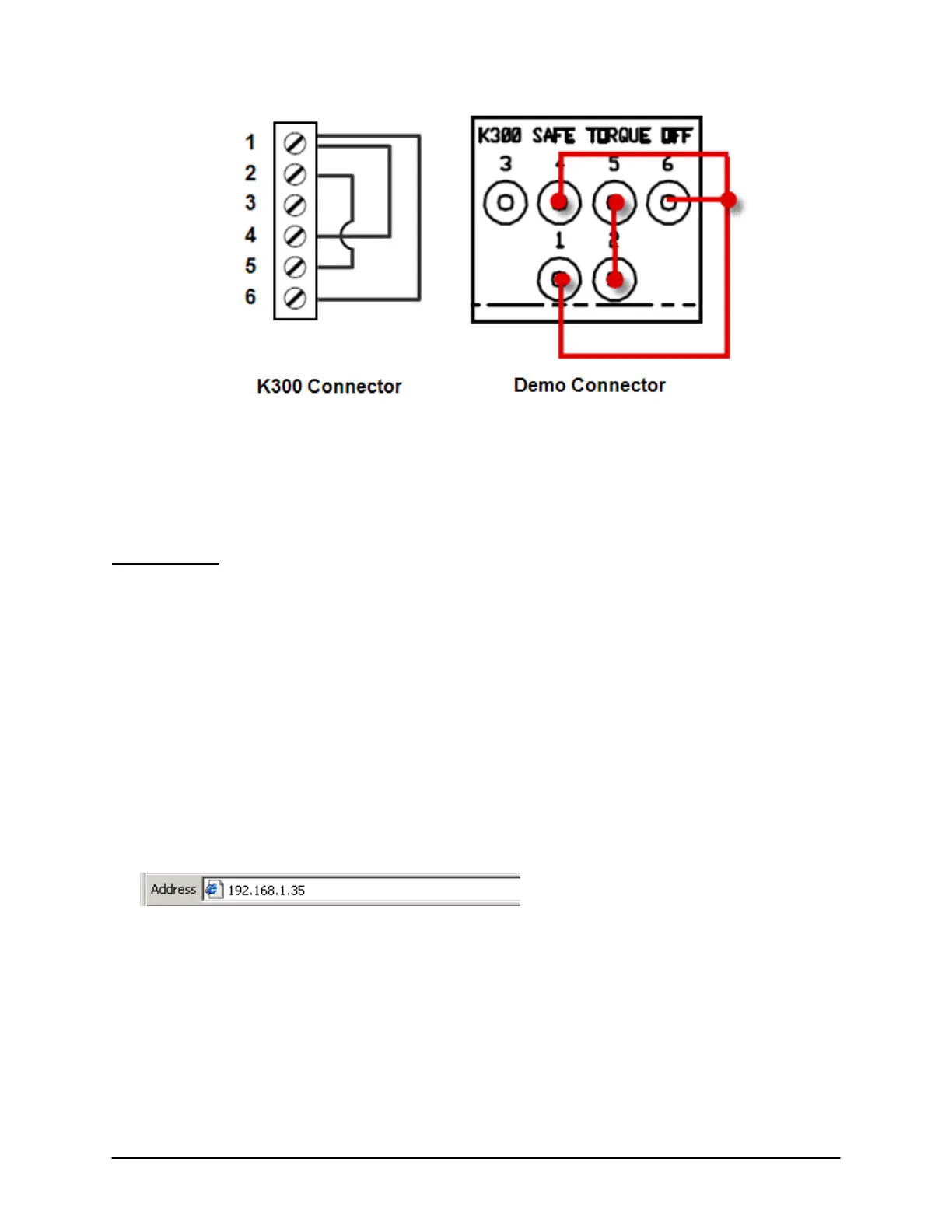

NOTE: The basic lab does not require the use of the safe torque-off function. The drive is supplied
from the factory with the safe torque-off circuit enabled. The diagram above illustrates how to bypass
the safety circuit.
IMPORTANT:
This demo unit processor contains a flash card with logic files that are designed to
download on a power cycle (demo unit power OFF/ON). WHEN YOU NEED TO CYCLE THE DEMO
POWER, YOU WILL NEED TO DOWNLOAD YOUR LAB PROGRAM (.ACD file) TO OVERWRITE THE
FLASH CARD LOGIC FILE!
13. Power on the demo unit and make sure the Safe Off and E-Stop buttons are pulled out, and the
K300 Drive Power selector switch is set to ON.
The four character status indicator on the drive should be scrolling the IP address of the drive and
‘diS’, which indicates the drive is disabled. This drive’s IP address is 192.168.1.35.
Download Configuration File to Kinetix 300
14. Open Internet Explorer by double-clicking on the desktop shortcut and enter in the IP Address of
the drive and press Enter.
15. From the File Download window select Open.
