Lab 5: Configure and Run the Kinetix 300 in Indexing Mode
In this lab, you will:
Use a new RSLogix 5000 file, make some modifications that use an Indexing AOI (Add-On
Instruction).
Sequence between two indexes, with a delay in between each.
Download the Program and Execute an Index Profile
1. Open the file, C:\Lab Files\K300_CMSS_LAB_5_START.ACD
2. Click the Communications menu item and select Who Active.

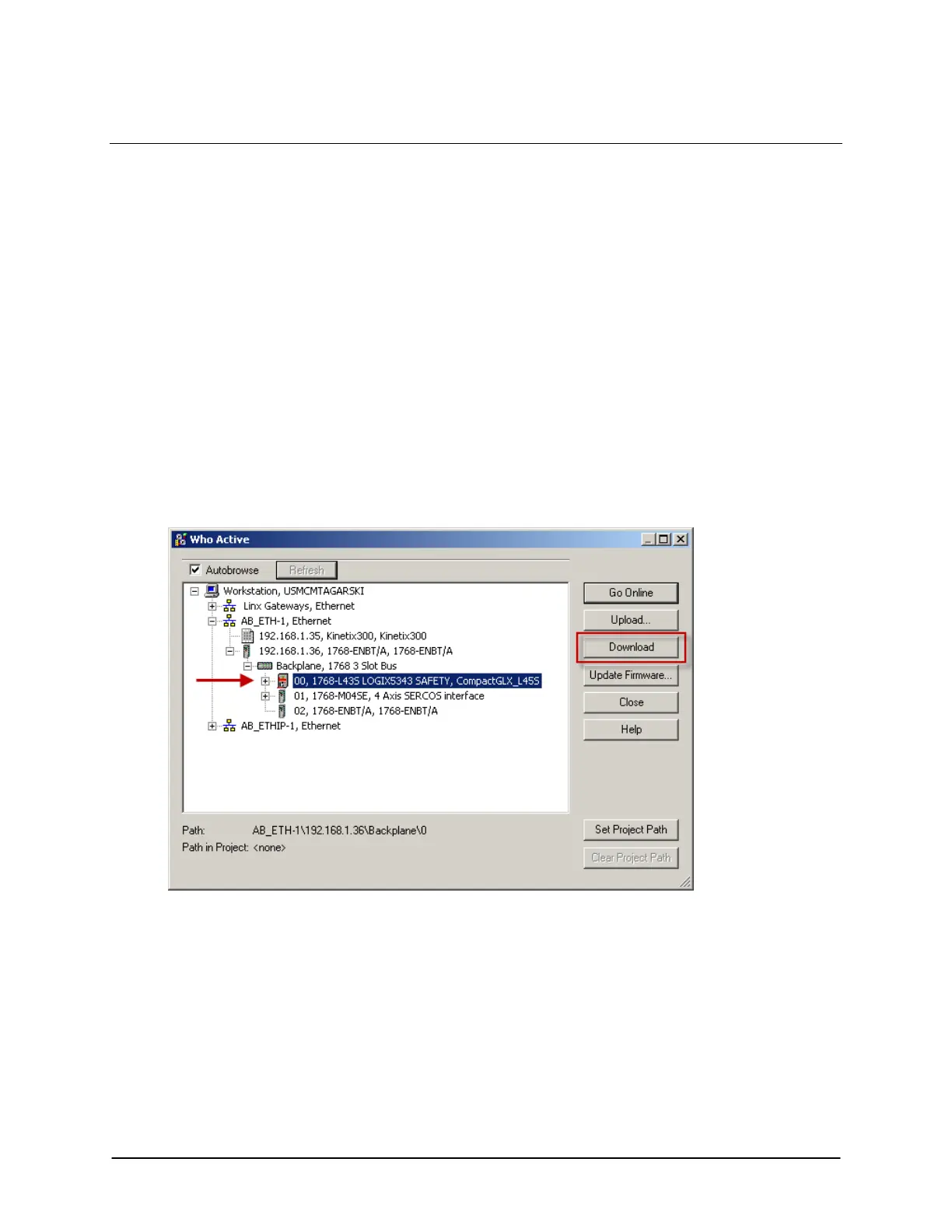

3. From the dialog navigate to the controller (IP Address 192.168.1.36, slot 0) and click the
Download button.
4. When the download warning dialog displays, click the Download button to download the .acd file
to the controller.
5. Change the controller to Run Mode.
