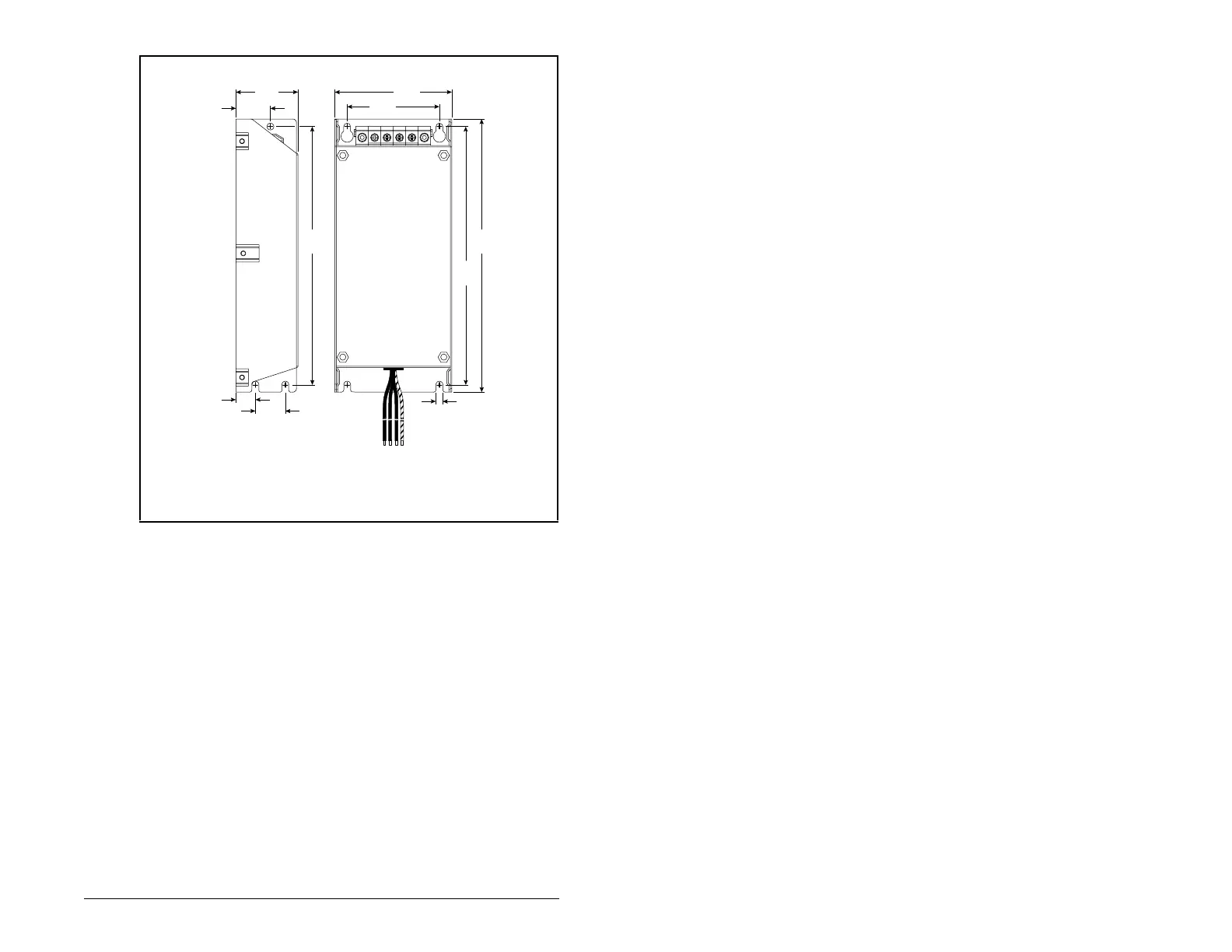

Figure E.3 – Frame B EMC Line Filters: Dimensions
5.5 (0.22)
17.8
(0.70)
24.0
(0.94)
78
(3.07)
100
(3.94)
50
(1.97)
29.8
(1.17)
229
(9.02)
216
(8.50)
217
(8.54)
Dimensions are in mm and (in).
Model Numbers: 6MDF-012BS, -BL; 6MDF-021BS, -BL;
6MDF-018BS, -BL
