Parameter Descriptions 9-15
Enables/disables external dynamic braking.
Sets the percentage of acceleration or deceleration time that is
applied to the ramp as S Curve. Time is added, 1/2 at the beginning
and 1/2 at the end of the ramp.
For example: If Accel Time = 10 seconds, and the S Curve% setting
is 50%, the S Curve time will be 10 x 0.5 = 5 seconds. Total time will
be 10 + 5 = 15 seconds.
A082 DB Resistor Select
Range: 0 = Disabled
1 = Reliance Electric Standard Resistor (5% Duty
Cycle)
2 = No Protection (100% Duty Cycle)
3 to 99 = Duty Cycle Limited (3% to 99% Duty
Cycle)
Default: 0 = Disabled
See also: N/A
A083 S Curve%
Range: 0 to 100%
Default: 0% (Disabled)
See also: N/A

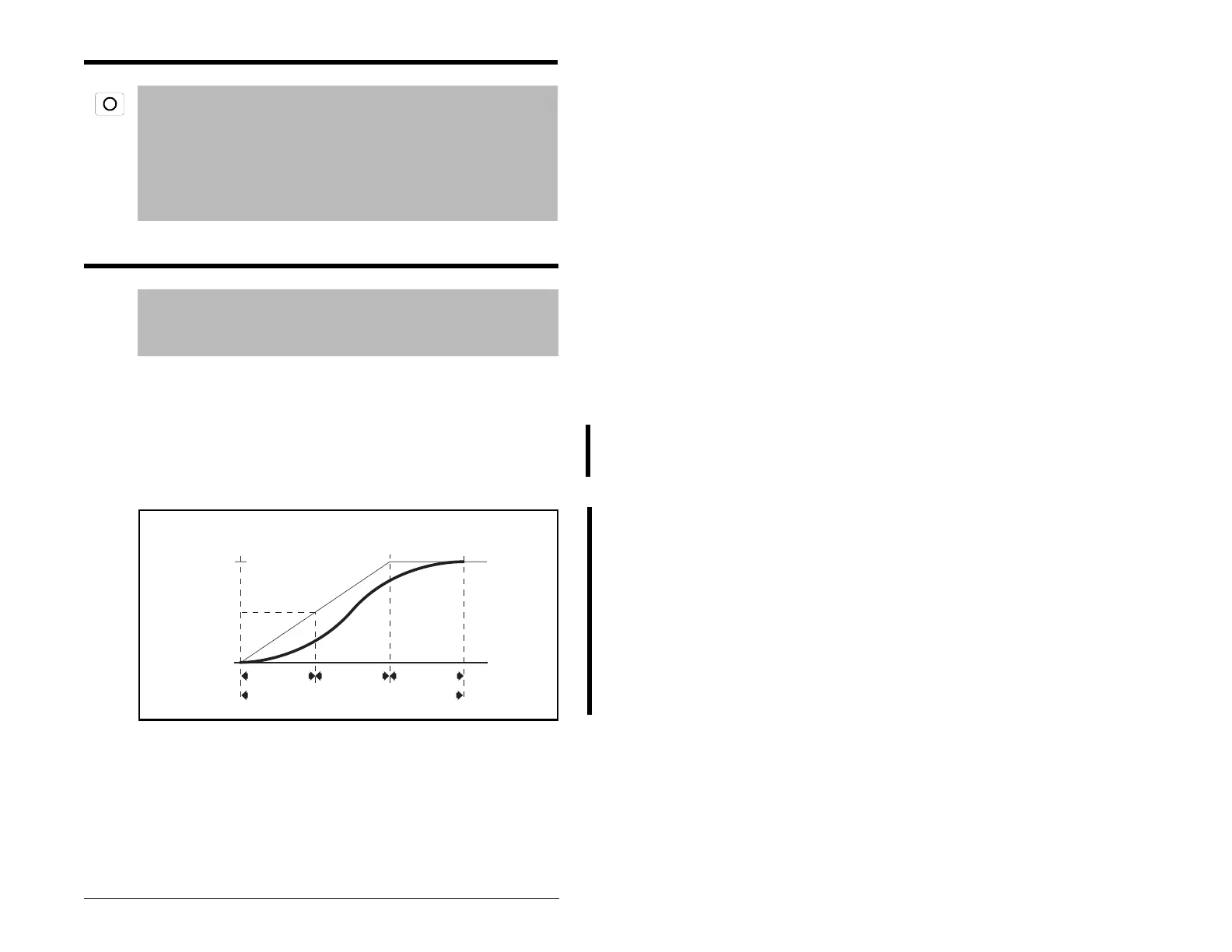

Figure 9.6 – S Curve% (A083) Examples
1/2 S Curve Time
2.5 Seconds
Total Time to Accelerate = Accel Time + S Curve Time
50% S Curve
Target
Target/2
Accel Time
10 Seconds
1/2 S Curve Time
2.5 Seconds
