Rockwell Automation VersaView 5200 ThinManager User Manual

Rockwell Automation Publication 6200-UM001C-EN-P - July 2018 15
VersaView 5200 ThinManager Thin Client Features Chapter 2

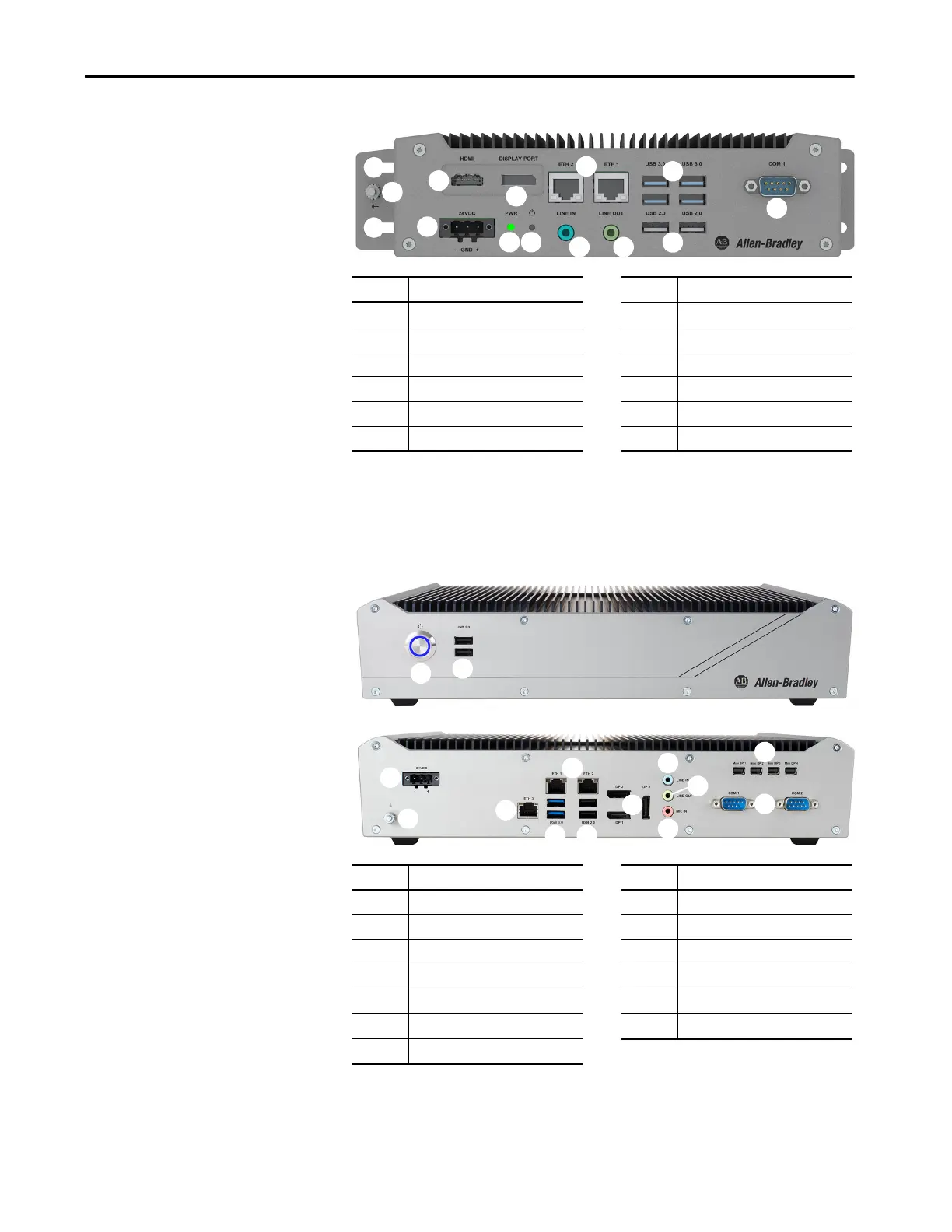

Figure 5 - VersaView 5200 ThinManager Thin Client – Dual 4K Display (cat. no. 6200T-KB)
Figure 6 - VersaView 5200 ThinManager Thin Client – Multi-4K Display (cat. nos. 6200T-RC and
6200T-RE)
Item Component Item Component
1 24V DC power input connection 7 2 x USB 2.0 port
2HDMI port
(1)
(1) These ports support 4K resolution.
8 Analog audio output
3DisplayPort
(1)
9 Analog audio input
(2)
(2) Audio input is not supported currently with ThinManager software.
4 2 x Ethernet LAN port 10 Power button
5 4 x USB 3.0 port 11 Power LED
6 Serial COM port, RS-232 12 Ground stud
Item Component Item Component
1Power button
(1)
(1) Button has a LED ring that is lit when power is on, which is shown in picture.
8 3 x full-sized DisplayPort
(2)
(2) These ports support 4K resolution.
22 x USB 2.0 port 9Analog audio input
(3)
(3) Audio input is not supported currently with ThinManager software.
3 24V DC power input connection 10 Analog audio output
4 Ground stud 11 Microphone input
(3)
5 3 x Ethernet LAN port 12 2 x Serial COM port, RS-232
6 2 x USB 3.0 port 13 4 x Mini DisplayPort
(2)(4)
(4) Only cat. no. 6200T-RE includes these four mini display ports; cat. no. 6200T-RC does not.
7 2 x USB 2.0 port
1
2
3
4
5
6
11
9
7
8
10
12
1
13
3
4
5
6
11
9
7
8
10
2
12
5
Front View
Back View
