Install Accessories Appendix A
Install the Machine
Mounting Bracket Kit
There are two available machine mounting bracket kits.
• Cat. no. 6200V-BXMACH can be used on non-display VersaView
ThinManager thin client and industrial computers (cat. nos.
6200T-KB, 6200T-NA, and 6200P-NS3xx). Installation instructions
start on page 61
.
• Cat. no. 6200V-BXMACH2 can be used on non-display VersaView
ThinManager thin client multi-4K display models (cat. nos.
6200T-RC and 6200T-RE). Installation instructions start on page 64
.
For Non-display VersaView ThinManager Thin Client and Industrial
Computers (cat. nos. 6200T-KB, 6200T-NA, and 6200P-NS3xx)
To install the machine mounting bracket kit (cat. no. 6200V-BXMACH),
perform the following steps.
1. Follow the steps for Pre-configuration
on page 52.

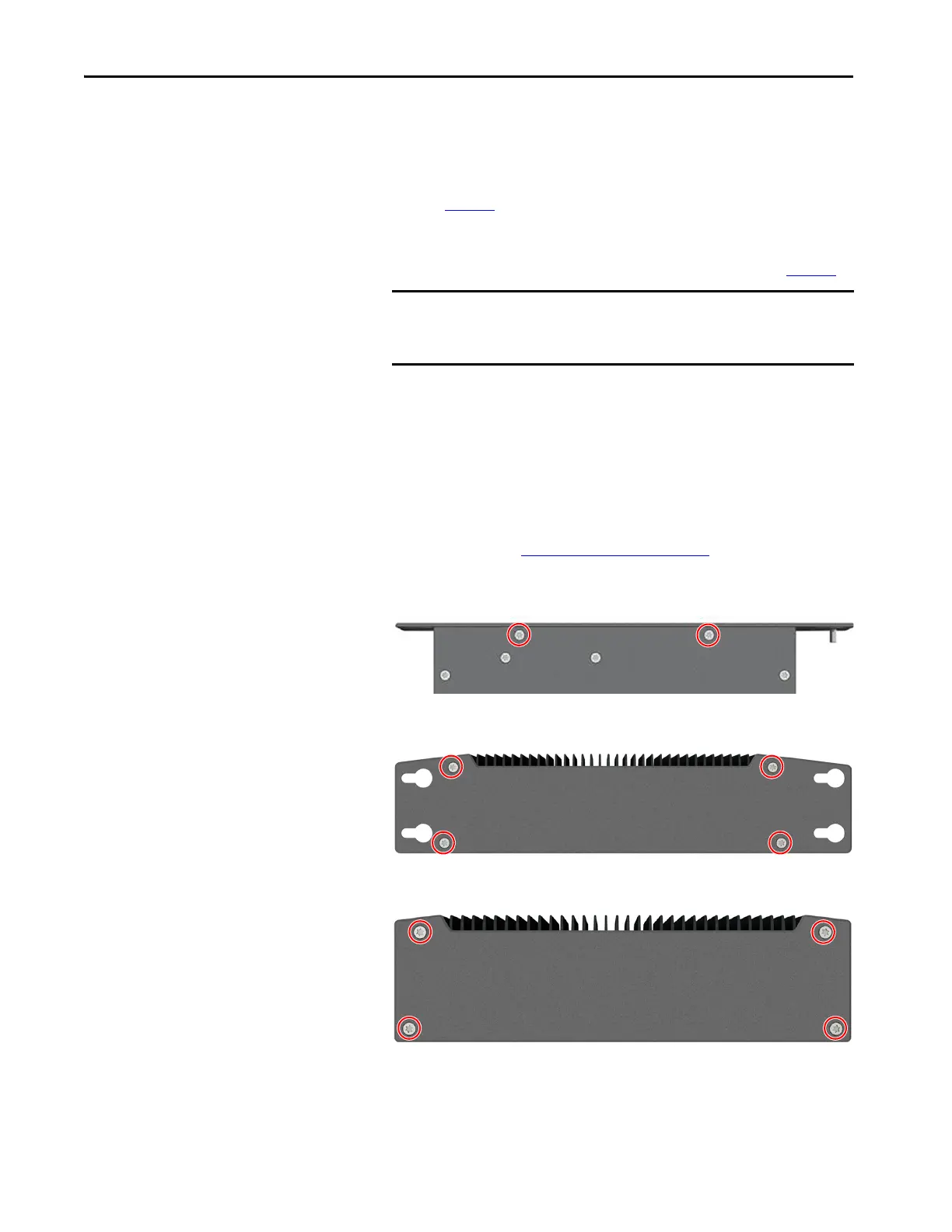

2. With a Torx 10 key or screwdriver, remove the two screws shown below
on the bottom of the non-display thin client or industrial computer.
3. Remove the four screws that secure the factory-installed mounting plate
to the back of the non-display thin client or industrial computer.
4. Install the new backplate from the machine mounting bracket kit with
the four screws that you removed in step 3.
IMPORTANT The two available machine mounting bracket kits cannot be
installed on the VersaView 5200 ThinManager thin client single
display model (cat. no. 6200T-BA).
To Next Page
