Chapter 3 Install the Thin Client or Computer
Follow these steps to connect the thin client or computer to a DC power
source.
1. Turn off the main power switch or breaker.
2. Verify that the DC power wires meet these requirements:
•Material: Stranded copper
• Wire gauge: 0.326…3.31 mm (22…12 AWG)
3. Insert each DC power wire into the correct terminal on the supplied
DC terminal block.
See the DC power input connector on the bottom of the thin client or
computer for which wires to connect to the DC terminal block.
4. Connect the DC terminal block to the DC power input.
5. Connect the thin client or computer to earth ground by using a
1.5 mm
2
(16 AWG) or larger external wire.
Use a ground wire with an insulation color that is approved by local
inspection authority.
TIP The following steps are to wire and attach
the DC terminal block that is supplied
with the computer.
The optional DC connector shown at right,
cat. no. 6200V-DCCONN, can be used
instead of the DC terminal block.

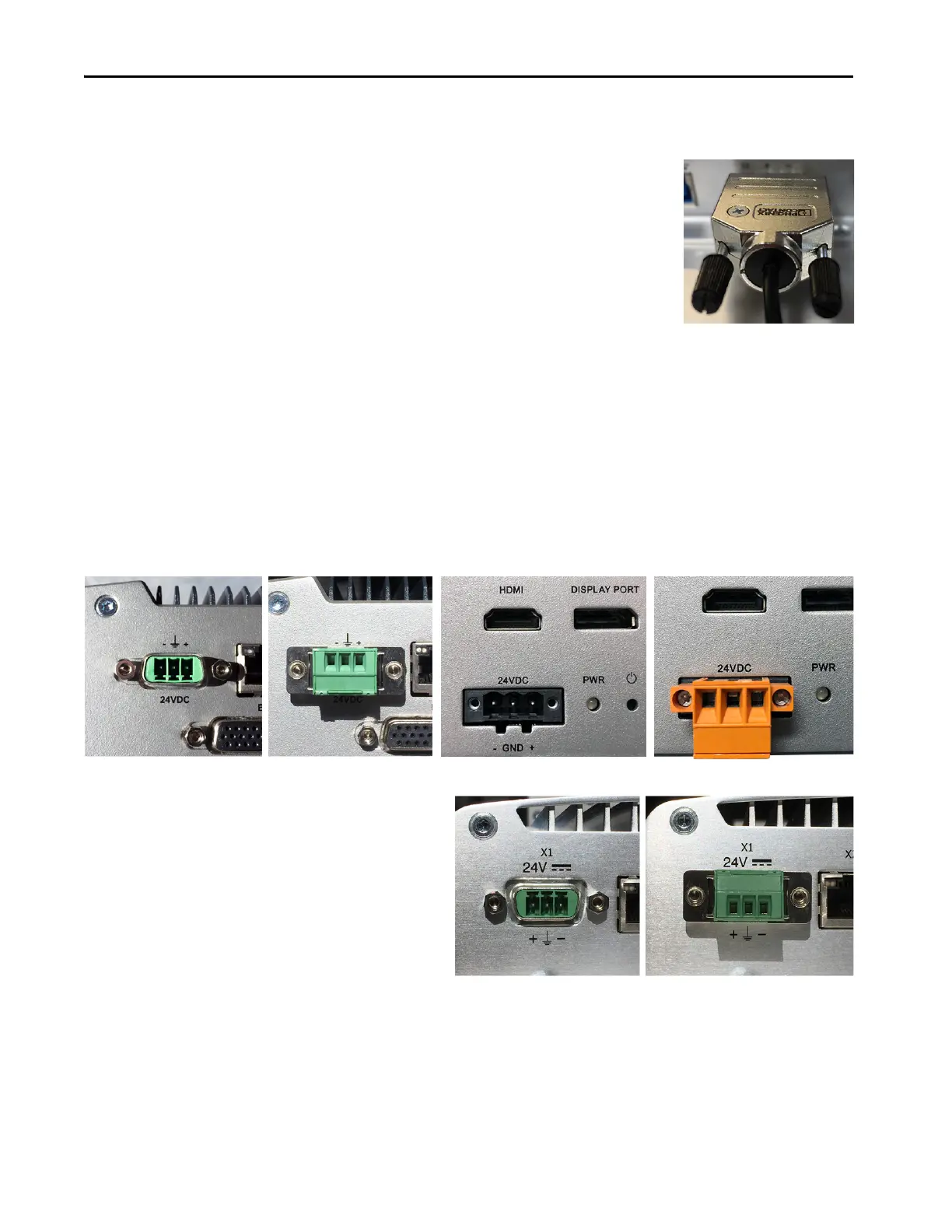

Non-display Computer or Thin Client Models (above)
(1)
Photo 1 is the DC power input connector on the bottom of cat. nos. 6200P-NS3x1
and 6200T-NA. Photo 2 is the supplied DC terminal block installed in the same DC
power input connector (shown without wires connected).
Photo 3 is the DC power input connector on the bottom of cat. nos. 6200T-KB,
6200T-RC, and 6200T-RE. Photo 4 is the supplied DC terminal block installed in the
same DC power input connector (shown without wires connected).
Integrated Display Computer or thin client Models (at right)
Photo 5 is the DC power input connector on the bottom of all integrated display thin
client or computer models. Photo 6 is the supplied DC terminal block installed in the
DC power input connector (shown without wires connected).
(1) Excludes cat. no. 6200T-BA.
