Rockwell Automation Publication 6200-UM001C-EN-P - July 2018 21
Install the Thin Client or Computer Chapter 3
Dimensions
Review the following dimensions to estimate the clearance necessary to install
your thin client or computer. Dimensions are given in mm (in.).

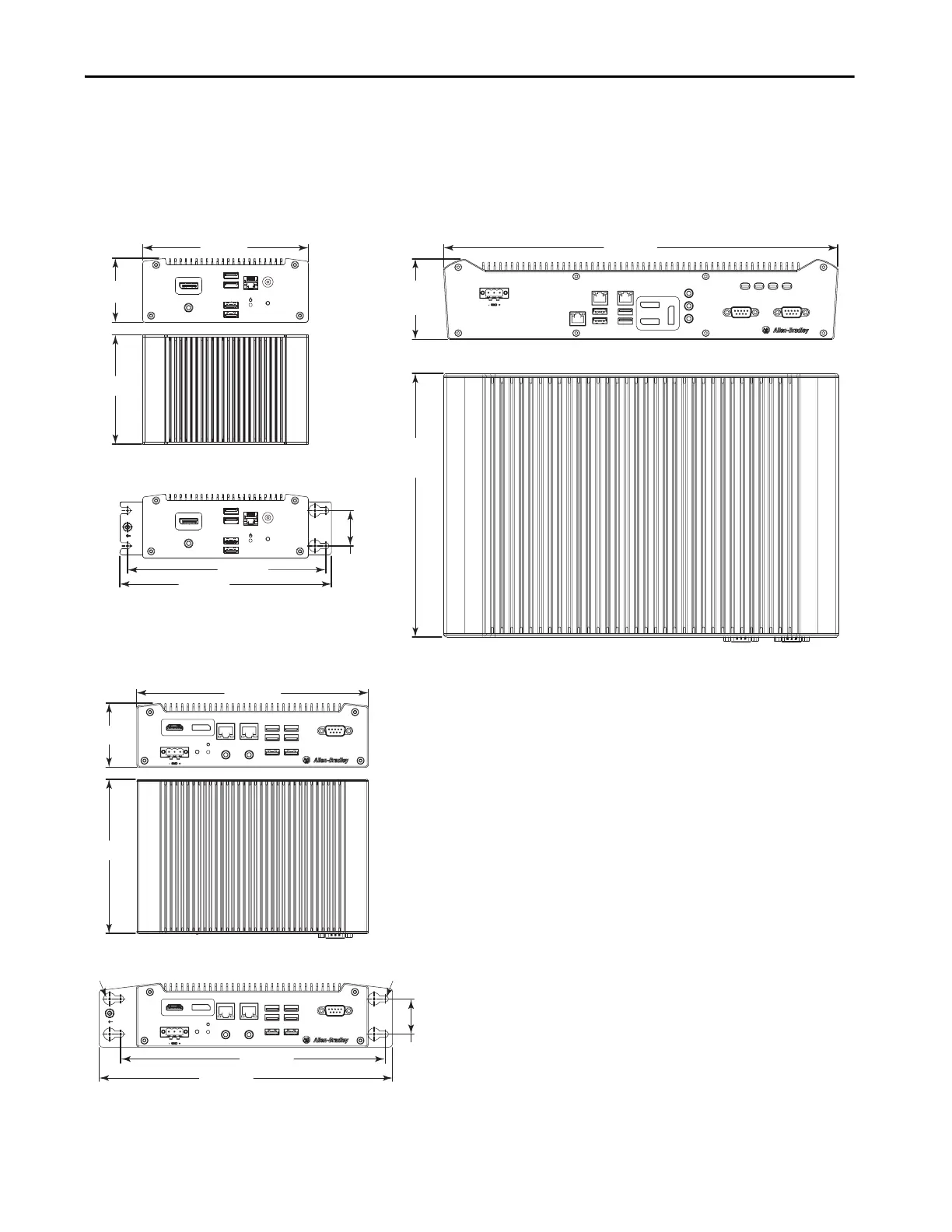

Figure 8 - Dimensions for Non-display Models
210 (8.27)
140 (5.51)
63 (2.48)*
Without the Factory-installed Bookshelf Mounting Plate
With the Factory-installed Bookshelf Mounting Plate
Cat. No. 6200T-BA
Cat. Nos. 6200T-KB, 6200T-NA, and 6200P-NS3x1
(cat. no. 6200T-KB shown in illustration)
Without the Factory-installed Bookshelf Mounting Plate
With the Factory-installed Bookshelf Mounting Plate
150 (5.9)
58 (2.28)*
240 (9.45)
99.5 (3.92)
4 x Ø11
(0.43)
32
(1.26)
4 x Ø5.5
(0.22)
266 (10.47)
4 x Ø5.5
(0.22)
180 (7.01)
192 (7.56)
32
(1.26)
* Add 2.6 mm (0.1 in.) to the height if you install the supplied rubber foot pads.
Cat. Nos. 6200T-RC and 6200T-RE
350 (13.78)
248.5
(9.78)
71.4
(2.81)*
