Rockwell Automation Publication 6200-UM001C-EN-P - July 2018 27

Install the Thin Client or Computer Chapter 3

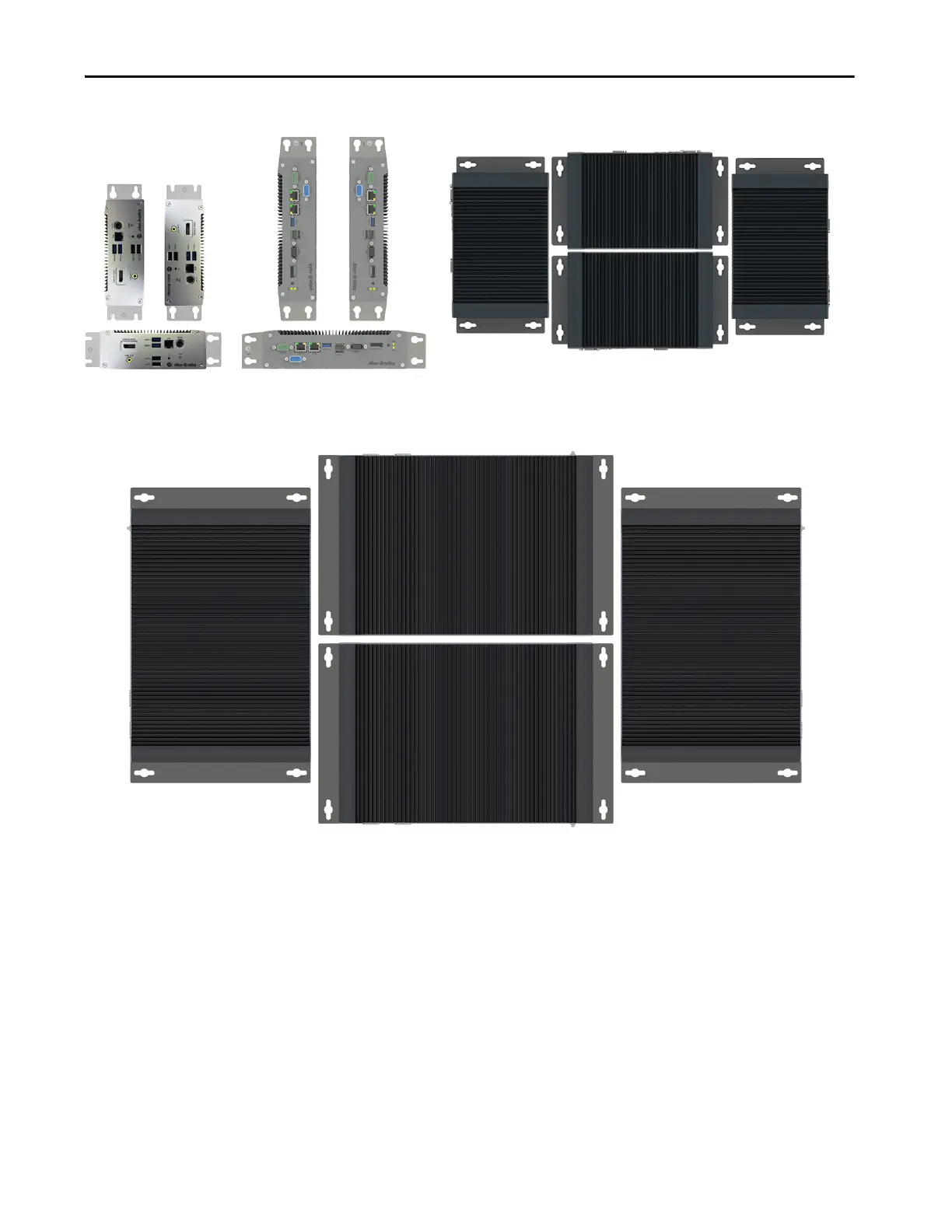

Figure 11 - Acceptable Mounting Positions for Non-display VersaView Thin Clients and Industrial Computer Models

For cat. nos. 6200T-KB, 6200T-NA, and

6200P-NS3xx with factory-installed

mounting bracket

For cat. no. 6200T-BA with

factory-installed mounting

bracket

6200V-BXMACH machine mounting for cat. nos. 6200T-KB, 6200T-NA, and 6200P-NS3x1

I/O Ports

I/O

Ports

I/O

Ports

6200V-BXMACH2 machine mounting for cat. nos. 6200T-RC and 6200T-RE

I/O Ports

I/O Ports I/O Ports
