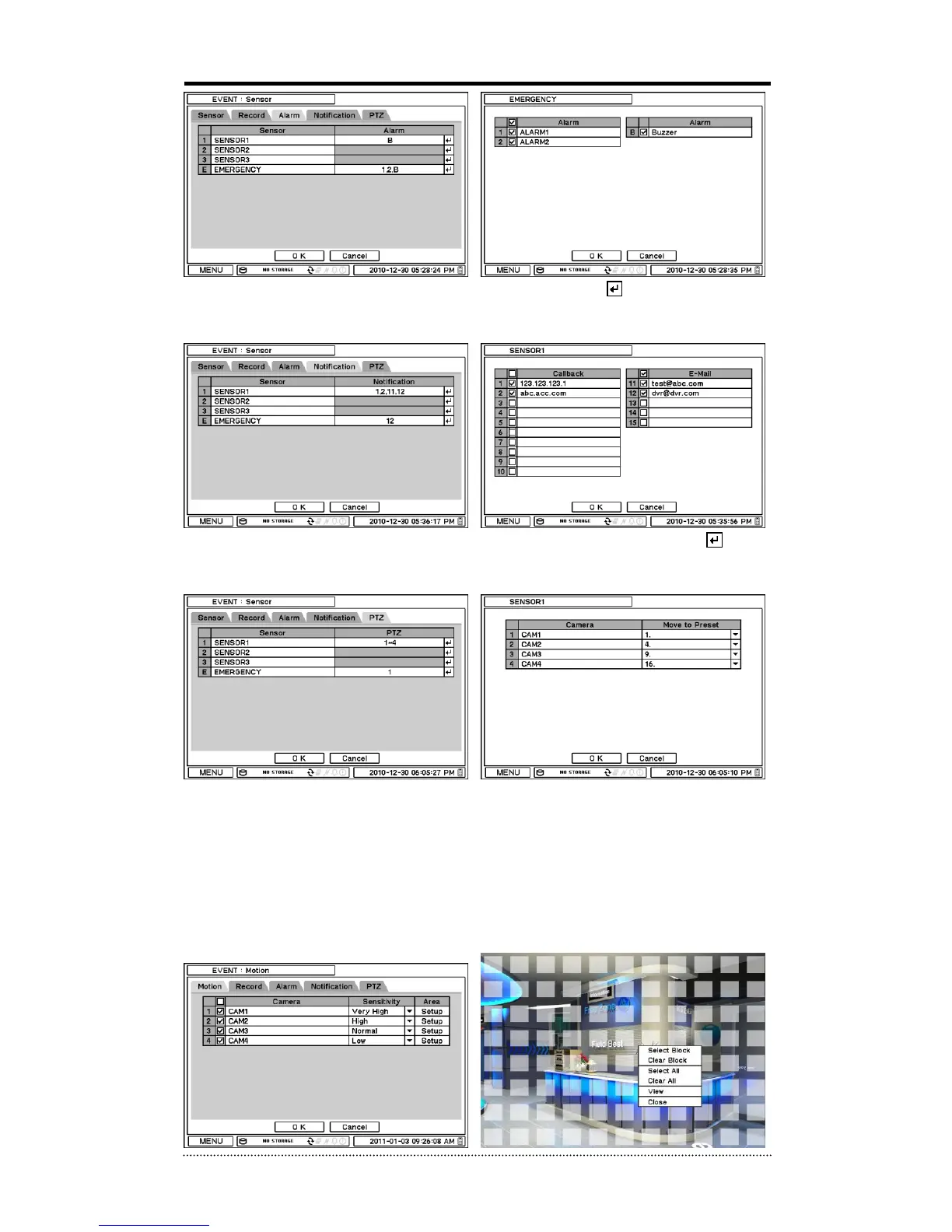

In Alarm screen, each sensor can trigger single or multi alarms. Press to select alarms to be
triggered by the sensors.
In Notification, each sensor can trigger single or multi callback or emailing sites. Press to
enter callback or email address to be triggered by the sensors.
PTZ preset can be recalled by an Event. If an Event occurs, the PTZ can recall a designated
preset position. As you can see from the menu above, Sensor 1 is set to trigger cameras 1,2,3
and 4. PTZ presets (position) for each camera can be selected when sensor 1 is activated.
PTZ preset can only be recalled by Sensor/Motion/Video Loss events. If several events happen on
a PTZ camera at the same time, it will be triggered in the order of Sensor > Motion > Video Loss.
2-6-2. MENU > EVENT > Motion
