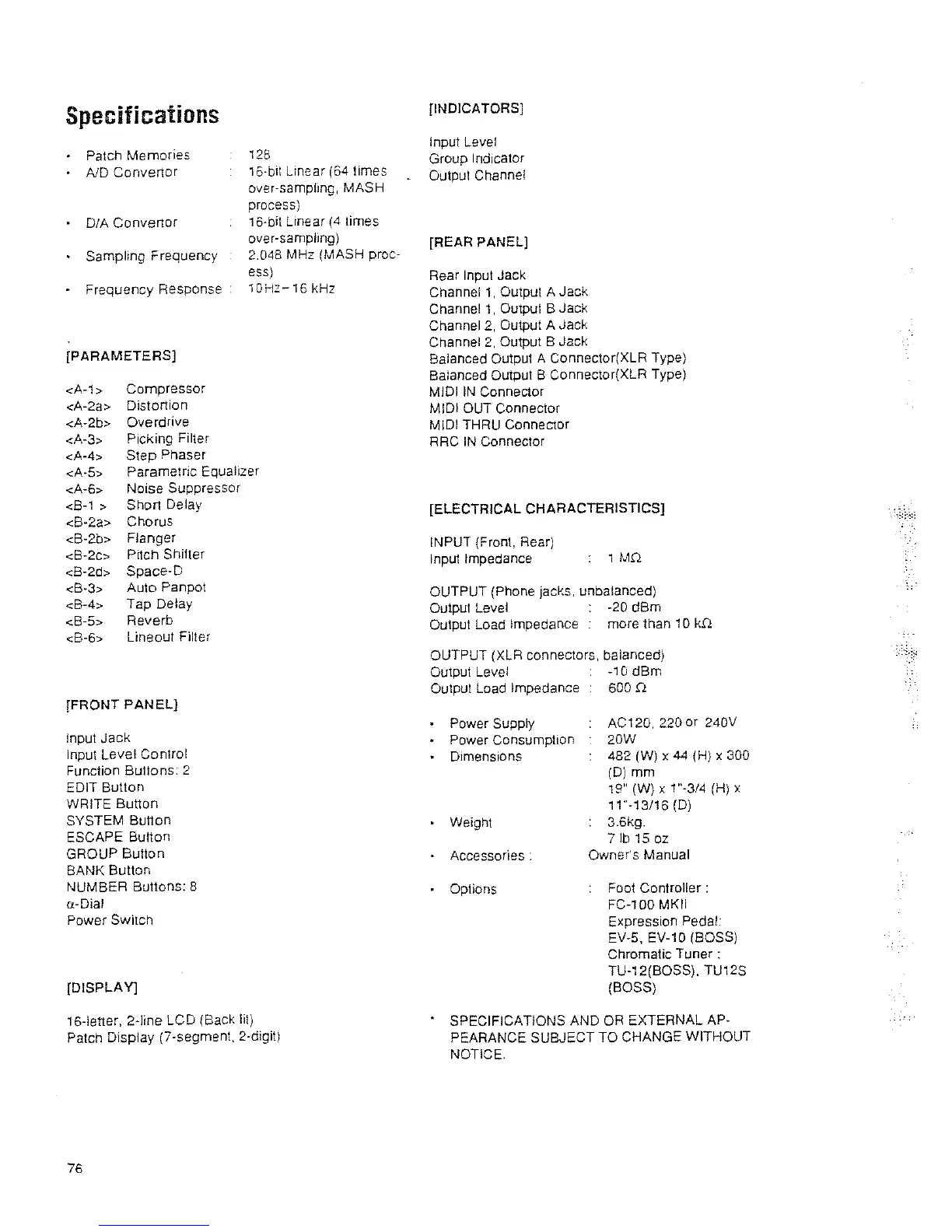

Specifications
Patch
Memories
ND
Convertor
D/A Convertor
Sampling
Frequency
Frequency Response
[PARAMETERS]
<A-1>
Compressor
<A-2a>
Distortion
<A-2b>
Overdrive
<A-3>
Picking Filter
<A-4>
Step Phaser
128
16-bil
Linear
(64
times
over-sampling, MASH
process)
16-bit Linear
(4
times
over-sampling)
2.048 MHz (MASH proc-
ess)
10
Hz-16
kHz
<A-5>
Parametric
Equalizer
<A-6>
Noise Suppressor
<B-1 >
Short Delay
<B-2a>
Chorus
<B-2b>
Flanger
<B-2c>
Pitch ShiHer
<B-2d>
Space-D
<B-3>
Auto Panpot
<8-4>
Tap Delay
<8-5>
Reverb
<8-6>
Lineoul Filler
[FRONT
PANEL]
Inpul Jack
Inpul Level Conlrol
Function Buttons. 2
EDIT Button
WRITE Button
SYSTEM Button
ESCAPE Butlon
GROUP
Butlon
BANK Button
NUMBER Buttons:
8
a-Dial
Power Switch
[DISPLAy]
16-letter, 2-line LCD (Back Iii)
Palch
Display (7-segmenl. 2-digil)
76
[INDICATORS]
Input
Level
Group
Indicator
Outpul Channel
[REAR PANEL]
Rear Inpul Jack
Channel
1,
Outpul A Jack
Channel
1,
Outpul B Jack
Channel
2,
Output A Jack
Channel
2,
Outpul B Jack
Balanced
Output A Connector(XLR Type)
Balanced
Output B Connector(XLR Type)
MIDI
IN
Connector
MIDI OUT Connector
MIDI
THRU Connector
RRC
IN
Conneclor
[ELECTRICAL CHARACTERISTICS]
INPUT (Front,
Rear)
Input Impedance 1 MQ
OUTPUT (Phone
jacks. unbalanced)
Outpul Level -20
dBm
Output Load Impedance more than
10
kfl
OUTPUT (XLR conneclors, balanced)
Output Level -10
dBm
Outpul Load Impedance 600 Q
Power Supply
Power Consumption
Dimensions
Weight
Accessories:
Options
AC120, 220
or 240V
20W
482 (W) x 44 (H) x 300
(D) mm
19" (W) x 1"-3/4 (HI x
11"-13/16
(D)
3.6kg.
71b150z
Owner's
Manual
Foot Controller:
FC-100 MKII
Expression Pedal:
EV-5, EV-10 (BOSS)
Chromatic
Tuner:
TU-12(BOSS), TU12S
(BOSS)
SPECIFICATIONS
AND
OR
EXTERNAL AP-
PEARANCE SUBJECT
TO
CHANGE WITHOUT
NOTICE
