Rosemount Model 3095 Multivariable
™
Level Controller
2-6
3095-3095A08B.EPS
Certification
Label
Housing
O-ring
Cover
Housing
Locking Screw
Electronics
Board
Nameplate
Sensor Module
Coplanar Flange
Optional Flange Adapters
RTD Connector
Drain/Vent Valve
Terminal
Block
Module O-ring
Bolts
Flange Adapter O-ring
Process Flange O-ring

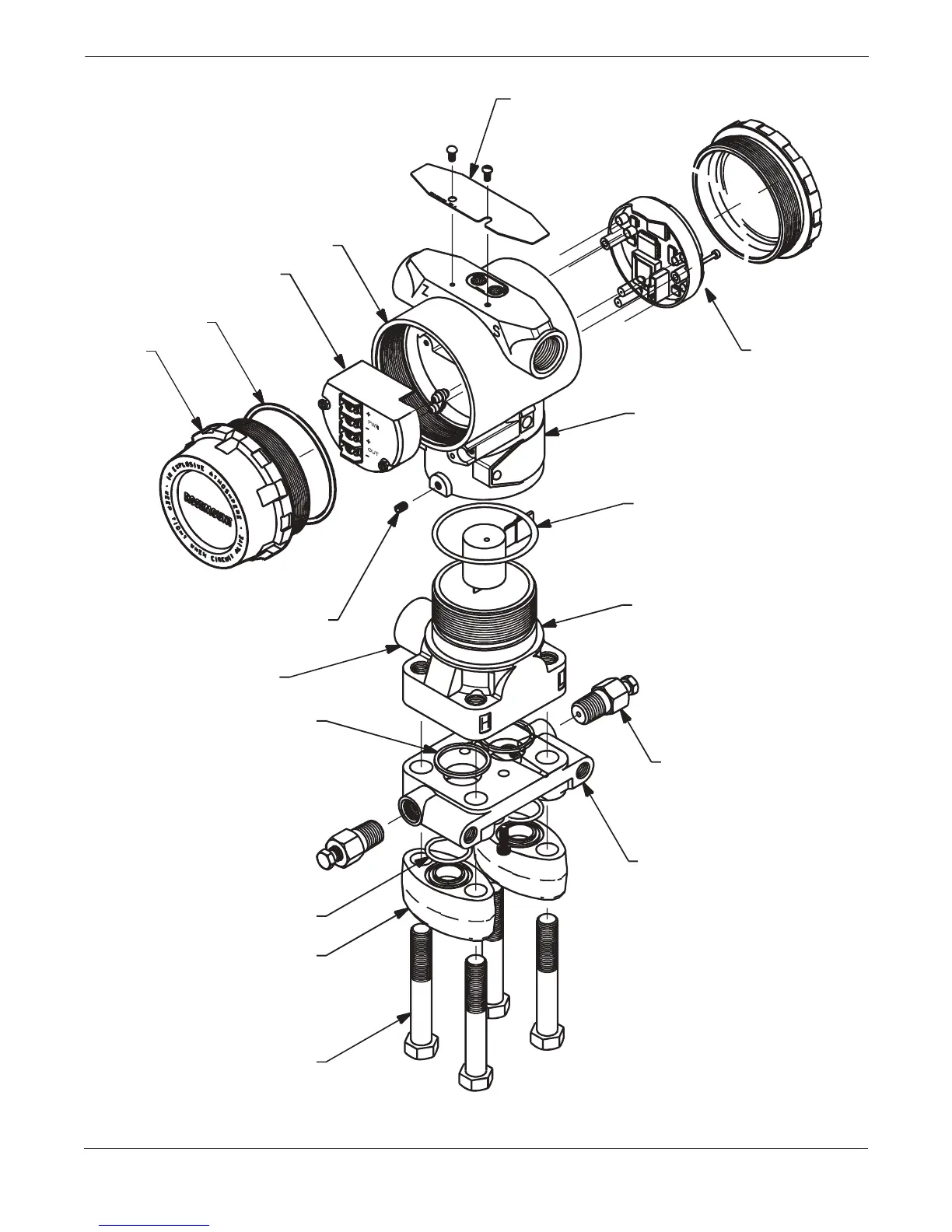

FIGURE 2-4. Exploded View of the Level
Controller.
