Rosemount Model 3095 Multivariable
™
Level Controller
2-12

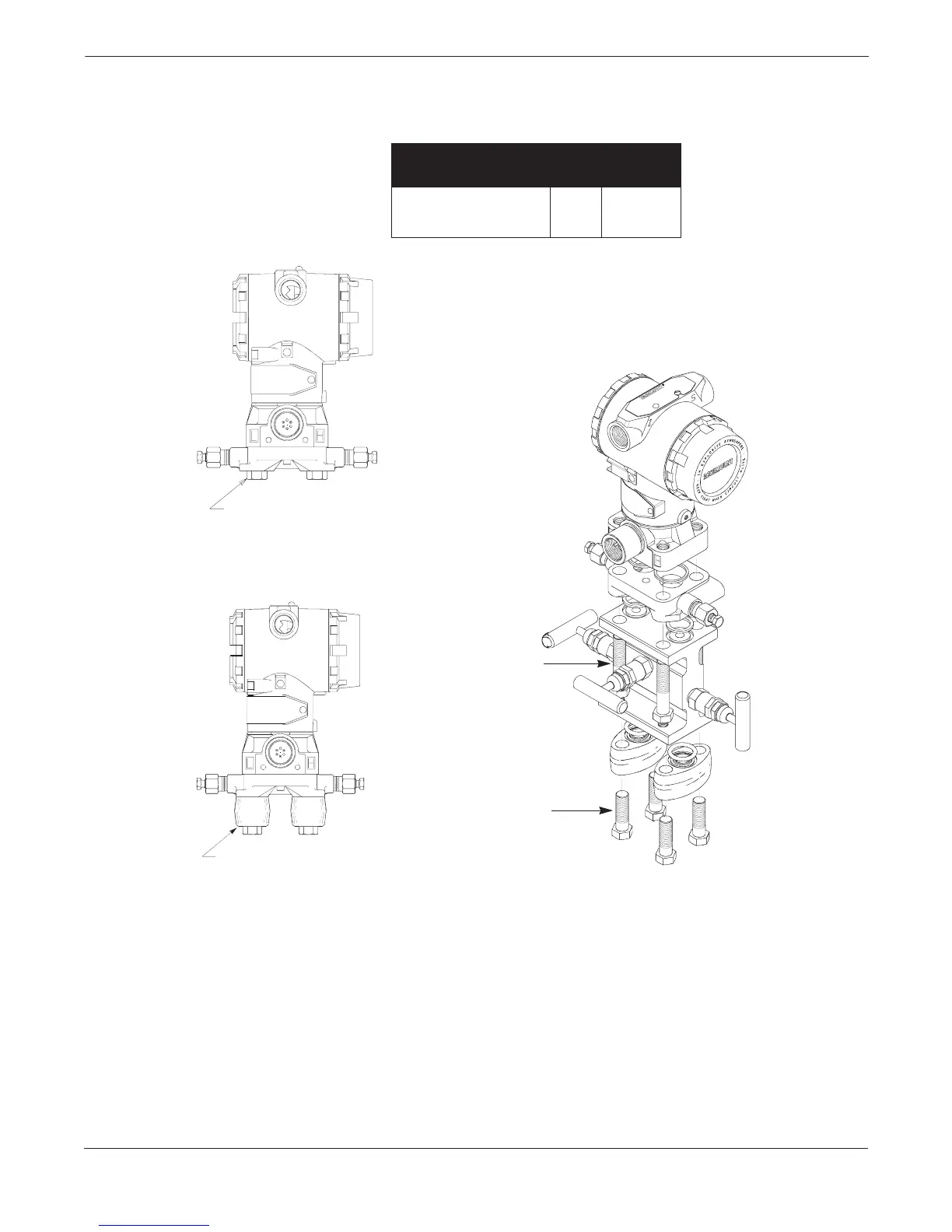

FIGURE 2-8. Coplanar Mounting Bolts and Bolting Configurations for Coplanar Flange.
1.75 (44) x 4
2.25 (57) x 4
CONTROLLER WITH 3-VALVE MANIFOLD
MANIFOLD/FLANGE BOLTS
FLANGE ADAPTERS
AND FLANGE/ADAPTER BOLTS
NOTE
Dimensions are in inches (millimeters).
3095-3095D05M, 3095C05A, 3095C29A
Description Qty.
Size in.
(mm)
Flange bolts
Flange/adapter bolts
Manifold/flange bolts
4
4
4
1.75 (44)
2.88 (73)
2.25 (57)
2.88 (73) x 4
CONTROLLER WITH
OPTIONAL FLANGE ADAPTERS
AND FLANGE/ADAPTER BOLTS
CONTROLLER WITH
FLANGE BOLTS
1.75 (44) x 4
