Hazardous Area Oxymitter 5000
1-2
Instruction Manual
IM-106-350C, Rev 2.2
July 2008

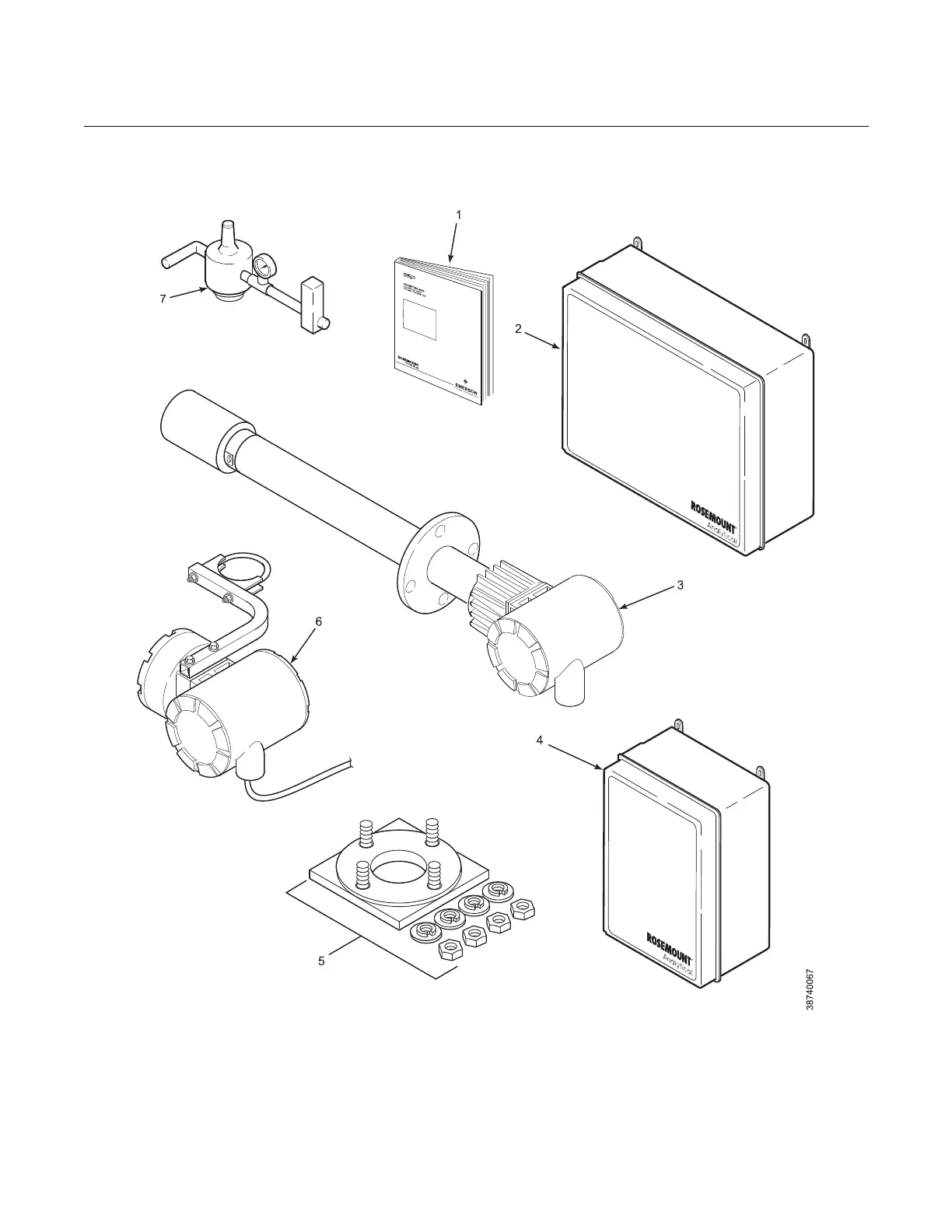

Figure 1-1. Typical System
Package
1. Instruction Manual
2. IMPS 4000 Intelligent Multiprobe Test Gas Sequencer (Optional)
3. Hazardous Area Oxymitter 5000 with Integral Electronics
4. SPS 4001B Single Probe Autocalibration Sequencer (Optional) (Safe area only)
5. Mounting Plate with Mounting Hardware and Gasket
6. Hazardous Area Oxymitter 5000 with Remote Electronics (Optional)
7. Reference Air Set (used if SPS 4001B without reference air option or IMPS 4000 not supplied)
