Rosemount Oxymitter 5000 - Operations and Configurations

Hazardous Area Oxymitter 5000
7-2
Instruction Manual
IM-106-350C, Rev 2.2
July 2008

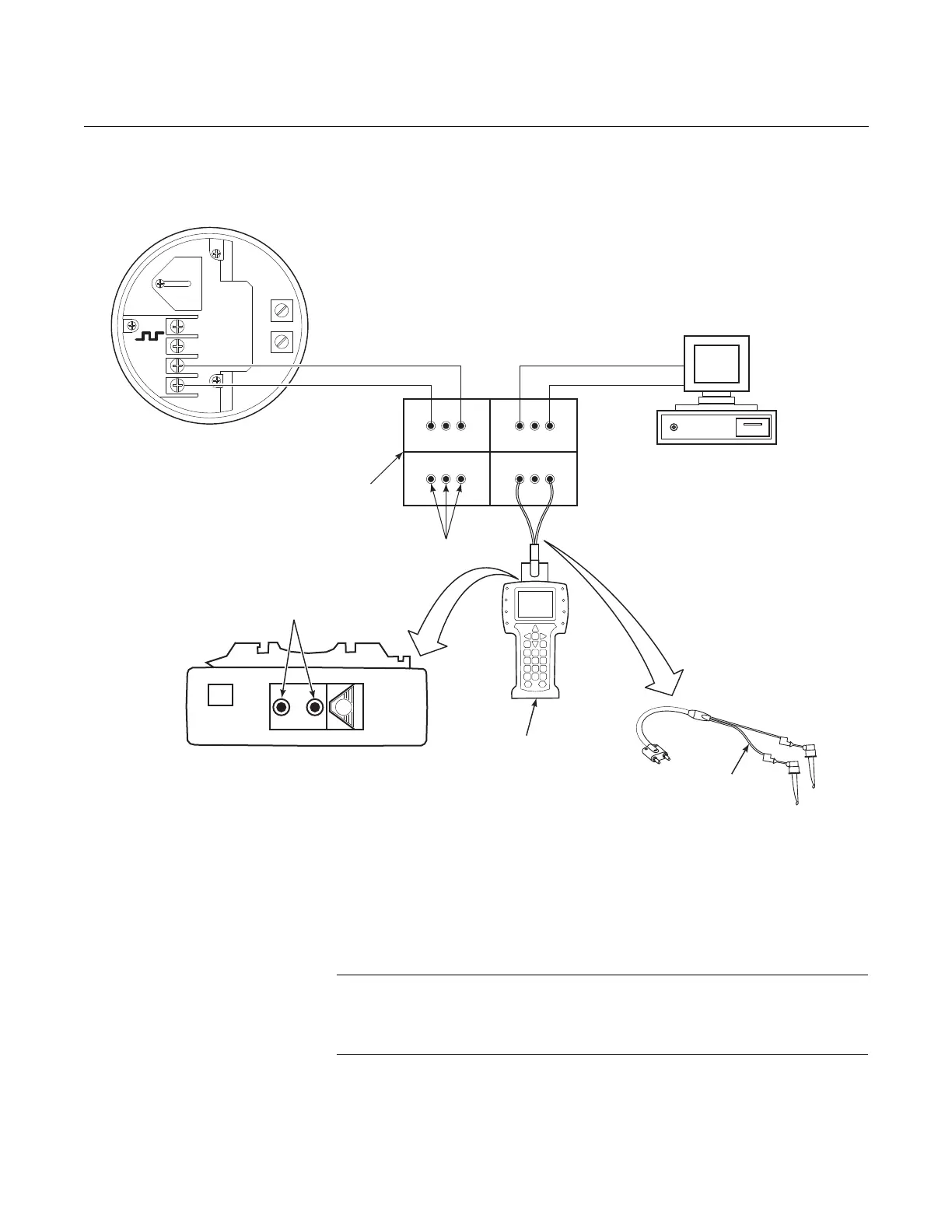

Figure 7-1. Fieldbus Terminal
Block Connections
OFF-LINE AND ON-LINE
OPERATIONS
The Handheld Communicator can be operated both off-line and on-line.
Off-line operations are those in which the communicator is not connected to
the Oxymitter 5000. Off-line operations can include interfacing the Handheld
Communicator with a PC (refer to applicable Handheld documentation
regarding Model 375/PC applications). In the on-line mode the communicator
is connected to a fieldbus terminal block.
NOTE
If the Handheld Communicator is turned on while connected to the fieldbus
terminal block, an undefined status indication appears while the
communicator warms up. Wait until the warm-up period ends to continue.
38740103
AC L1
AC N
+
+
-
-
4-20
FieldbusDigitalSignal
Handheld
Communicator
LeadSet
HandheldCommunicator
RearPanel
Terminal
Block
Terminals
Oxymitter5000
FieldbusDigitalSignal
Terminal
Connectors
FieldbusComputer
Terminal(PC)
