Hazardous Area Oxymitter 5000
1-12
Instruction Manual
IM-106-350C, Rev 2.2
July 2008

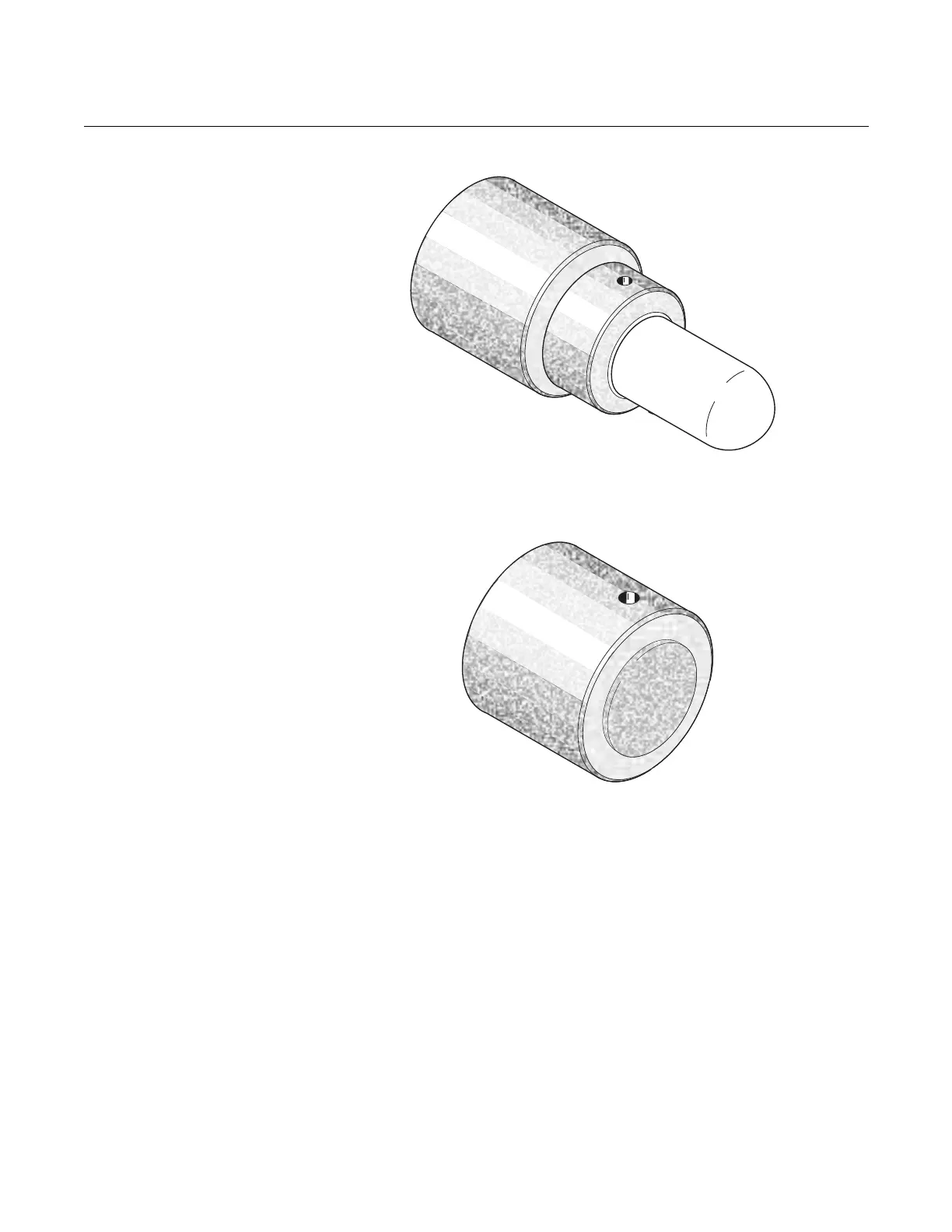

Figure 1-8. Flame Arrestor
Ceramic Diffusion Assembly
Figure 1-9. Flame Arrestor
Snubber Diffusion Assembly
Flame Arrestor Snubber Diffusion Assembly
The snubber diffusion assembly, Figure 1-9, is satisfactory for most
applications. This element is also available with a dust seal for use with an
abrasive shield.
Abrasive Shield
Assembly
The abrasive shield assembly, Figure 1-10, is a stainless-steel tube that
surrounds the probe assembly. The shield protects against particle abrasion
and condensations, provides a guide for ease of insertion, and acts as a
position support, especially for longer probes. The abrasive shield assembly
uses a modified diffuser and vee deflector assembly, fitted with dual dust seal
packing.
