Rosemount Oxymitter 5000 - Page 44

Hazardous Area Oxymitter 5000
2-12
Instruction Manual
IM-106-350C, Rev 2.2
July 2008

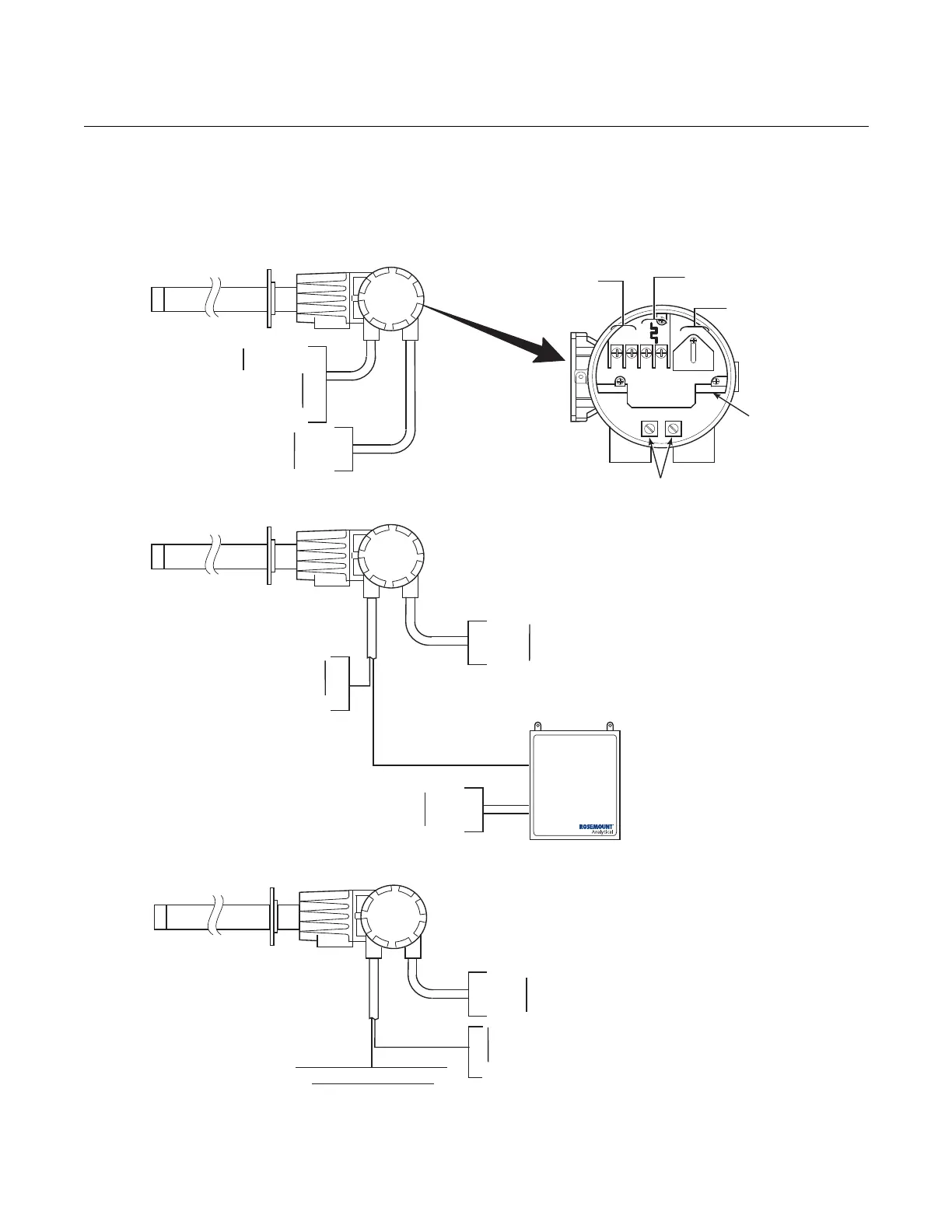

Figure 2-9. Electrical Installation -
Hazardous Area Oxymitter
5000 with Integral Electronics
38740074
INTEGRAL ELECTRONICS
WITHOUTSPS4001B
AC L1 AC N
+ +
- -
LogicI/O+
LogicI/O–
Ground
Line1
Neutral
Ground
90-250VAC,50-60Hz
LineVoltageInput
CalibrationHandshake
RefertoIMPS4000
InstructionManual
INTEGRAL ELECTRONICS
WITHREMOTESPS4001B
INTEGRAL ELECTRONICS
WITHREMOTEIMPS4000
Line1
Neutral
Ground
90-250VAC,50-60Hz
LineVoltageInput
Calibration
Handshake
LineVoltage
Calibration
Handshake/
LogicI/O
Terminal
Block
Ground
Lugs
Line1
Neutral
Ground
+
–
Ground
90-250VAC,50-60Hz
LineVoltageInput
90-250VAC,50-60Hz
LineVoltageInput
Line1
Neutral
Ground
Ground
FieldbusDigitalSignal
+
–
+
–
FieldbusDigitalSignal
FieldbusDigitalSignal
FieldbusDigitalSignal
FieldbusDigitalSignal
FieldbusDigitalSignal
FieldbusDigitalSignal
WALL-MOUNTED
SPS4001B
Calibration
Handshake
