LCS operation panel
Optional
Pump
Intake pressure
monitoring system
The control displays the status of the in-
take pressure monitoring system.
The pilot lamp has three switching condi-
tions:
• Green: intake pressure monitoring
system active
• Orange: intake pressure under 1.5
bar (21 psi) outlet pressure is re-
duced
• Grey: intake pressure monitoring
system inactive
Lighting
The control indicates the status of the
lighting.
The pilot lamp has two switching posi-
tions:
• Green: lighting active
• Grey: lighting inactive
Power outlet
The control shows the condition of the
power outlets.
Current is only delivered when the engine
is running and the battery voltage is >11.5
V.
The pilot lamp has two switching posi-
tions:
• Green: electricity is delivered to the
power outlets
• Grey: power outlets inactive

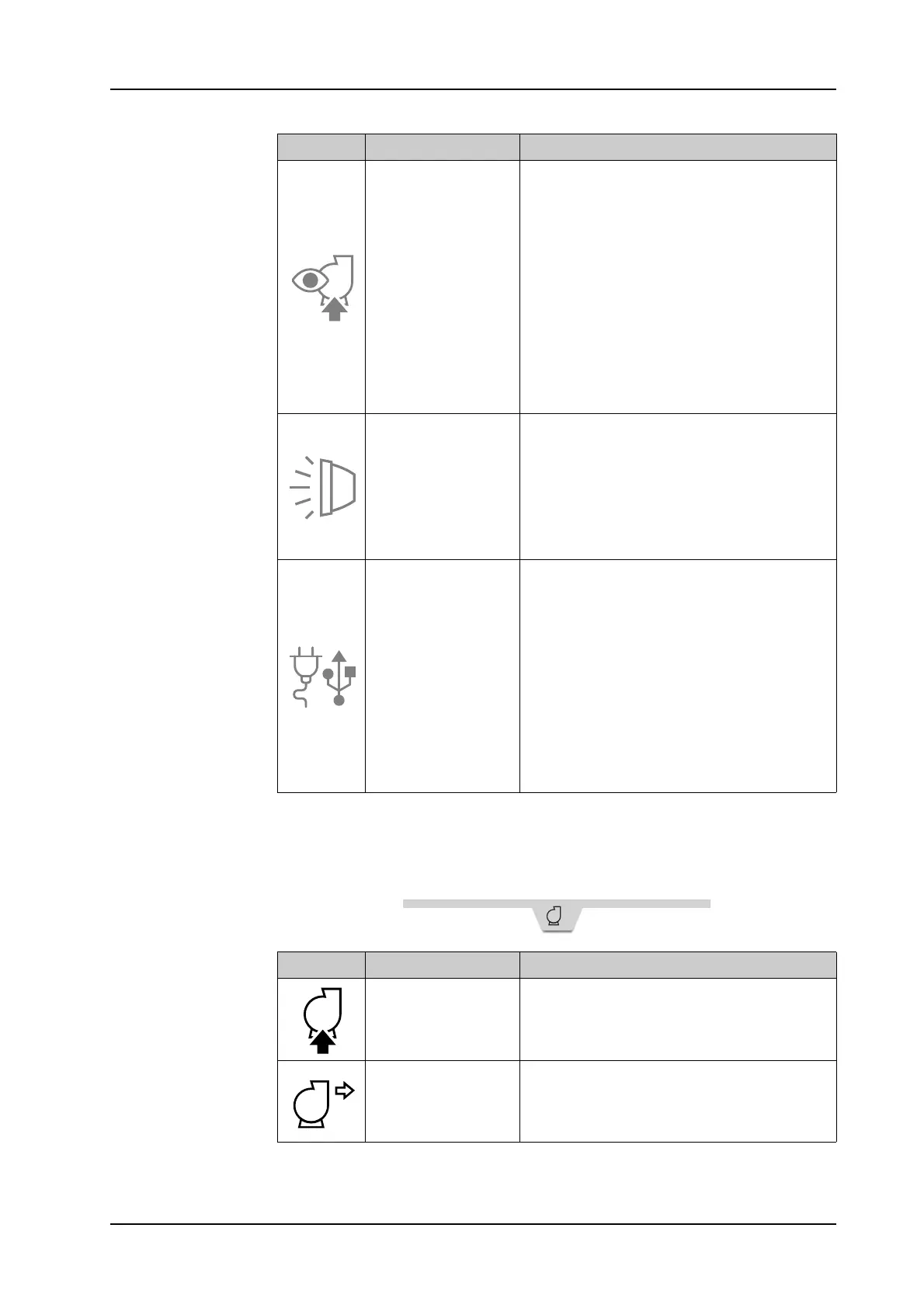

Symbol Name Functional description
Symbol Name Functional description
Water pump intake
pressure
The indicator shows the current intake
pressure at the water pump.
Pump pressure of
the water pump
The indicator shows the current pump
pressure of the water pump.
