page 44

May 01/2007

Effectivity: 912 Series

Edition 1 / Rev. 0

d04053

INSTALLATION MANUAL

BRP-Rotax

09153

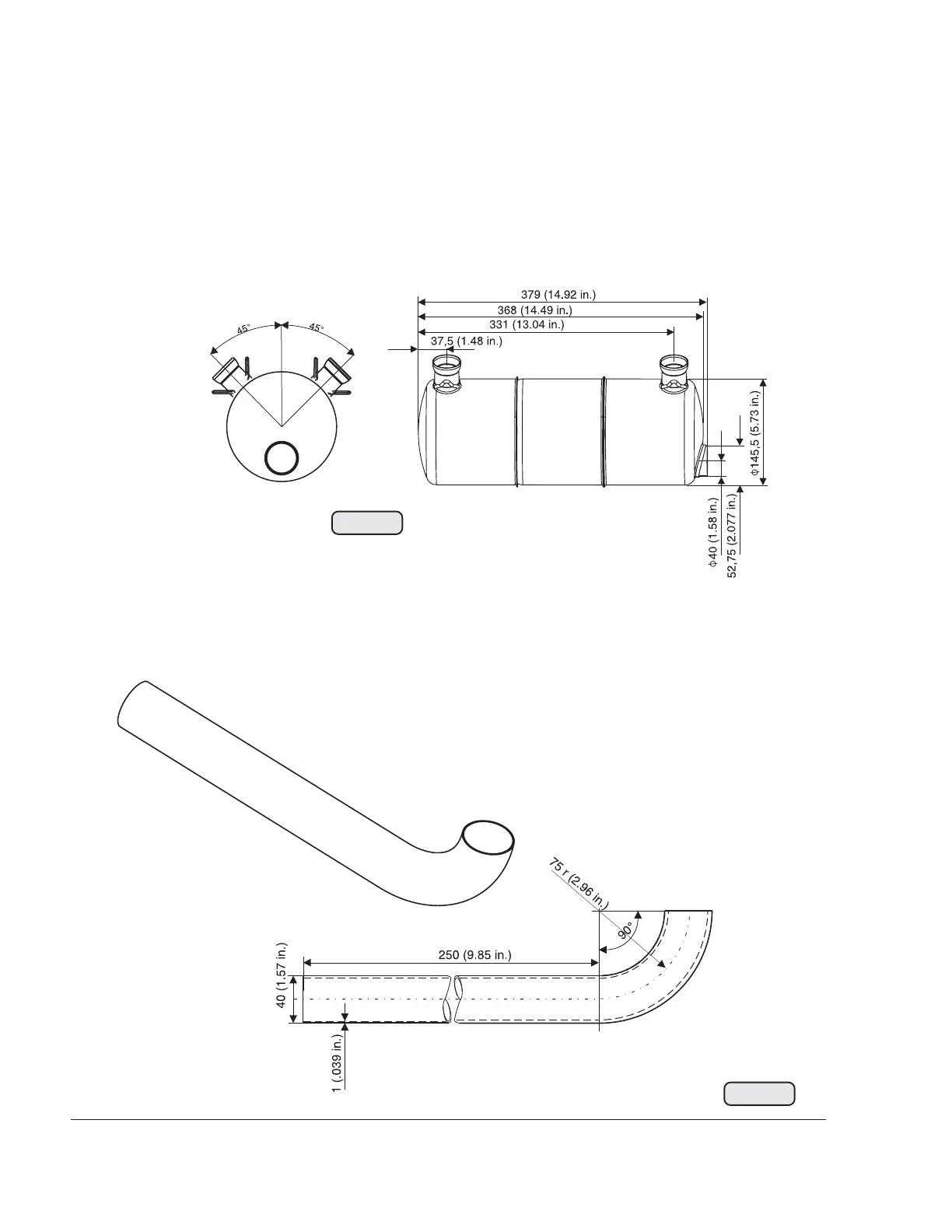

Fig. 18

Fig. 17

- muffler assy.

See Fig. 17.

Material/thickness of the exhaust components:

X 6CrNiTi 189 (1.4541) (stainless) a= 1 mm (0.039 in.)

09159

- exhaust elbow (tailpipe)

See Fig. 18.

Material/thickness of the exhaust components:

X 5CrNi 189 (1.4301) (stainless) a= 1 mm (0.039 in.)
