Effectivity: 912 Series
Edition 1 / Rev. 0
d04053
page 43
May 01/2007
BRP-Rotax
INSTALLATION MANUAL
09164

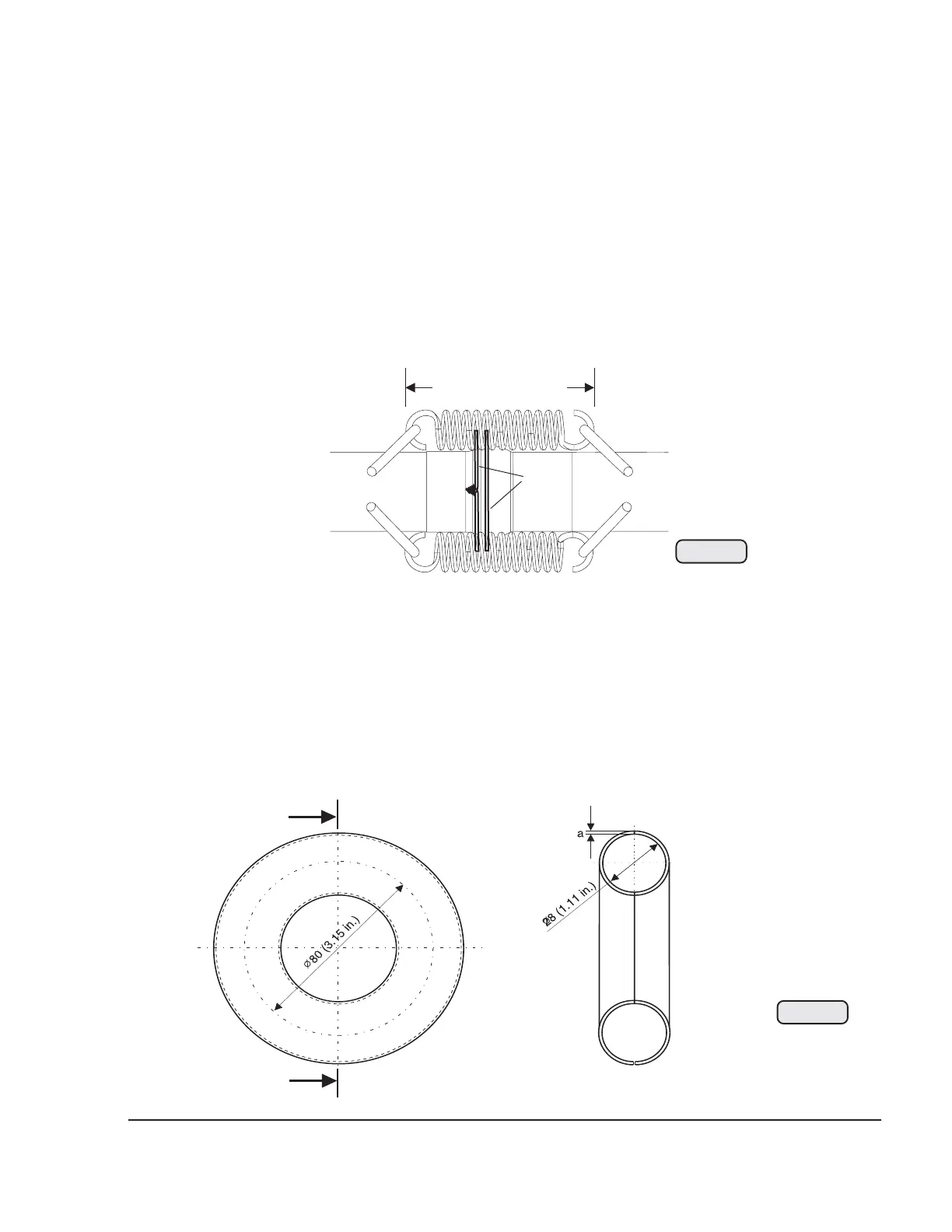

Fig. 16
A
A
section A-A
08326
Safety wire
Fig. 15
Approx 10 mm (.4 in)
stretch
The sketch illustrates a possibility how to interconnect the exhaust springs to
prevent the vibration of these springs and thus premature wear.
It is also recommended to fill the springs with high heat silicone for additional
damping of vibrations.
■ CAUTION: Appropriate to the installation a vibration damping support for
the exhaust system has to be provided on the airframe
manufacturers side.
11.4) Data for optional components of exhaust system
- weight: see section 8.
- exhaust elbow assy. (doughnut)
See Fig. 16.
Material/thickness of the exhaust components:
X 15CrNiSi20-12 (1.4828) (AISI 309) a= 1.5 mm (0.059 in.)
