6.2 REPAIR PROCEDURES
DOC01-V6ULB+ 45
6.2 Replacing the main circuit or its battery
Tools required :
• Flat screwdriver • Cutting pliers
Procedure:
9. Raise the bed to its highest position and apply the brakes.
10. Unplug the power cable from the wall socket.

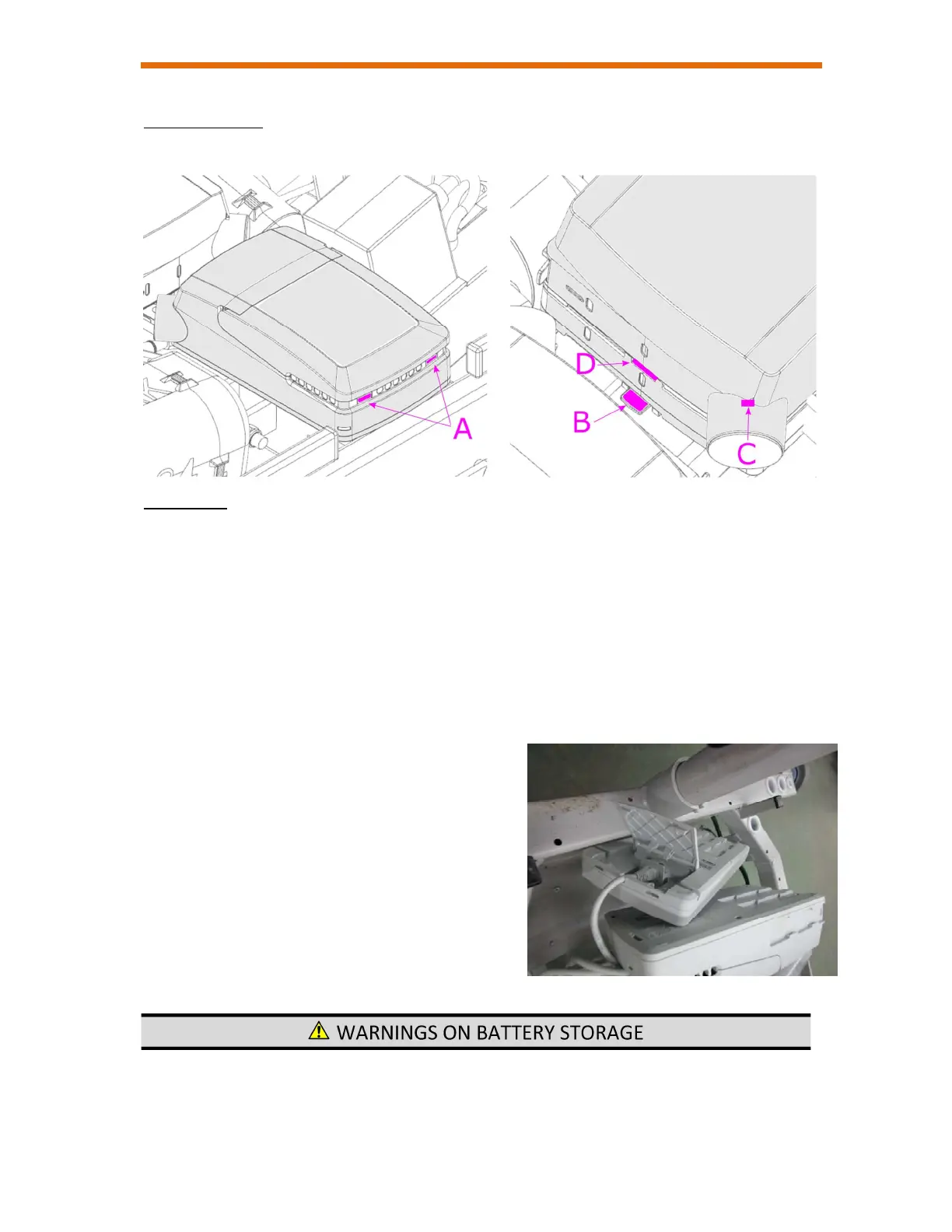

11. Open the case by pressing the two latches (A).
12. Disconnect all cables under cover, noting their location.
13. Remove the circuit by pressing the lock on the underside (B) and sliding it out.
Cut wire ties if necessary.
14. Disconnect the power supply from the circuit corner (C) using a flathead
screwdriver.
15. Separate the battery from the circuit by
pressing lock D and sliding. Open the wire
door with a screwdriver to disconnect the
wire.
16. Reverse the above steps to install the new
parts.
17. Check that all controls are working
properly before putting the bed back into
service .
WARNINGS ON BATTERY STORAGE
Arrange for the battery to be recycled in an appropriate facility.
